Classen 60-RT - Parts Handle and Control

8

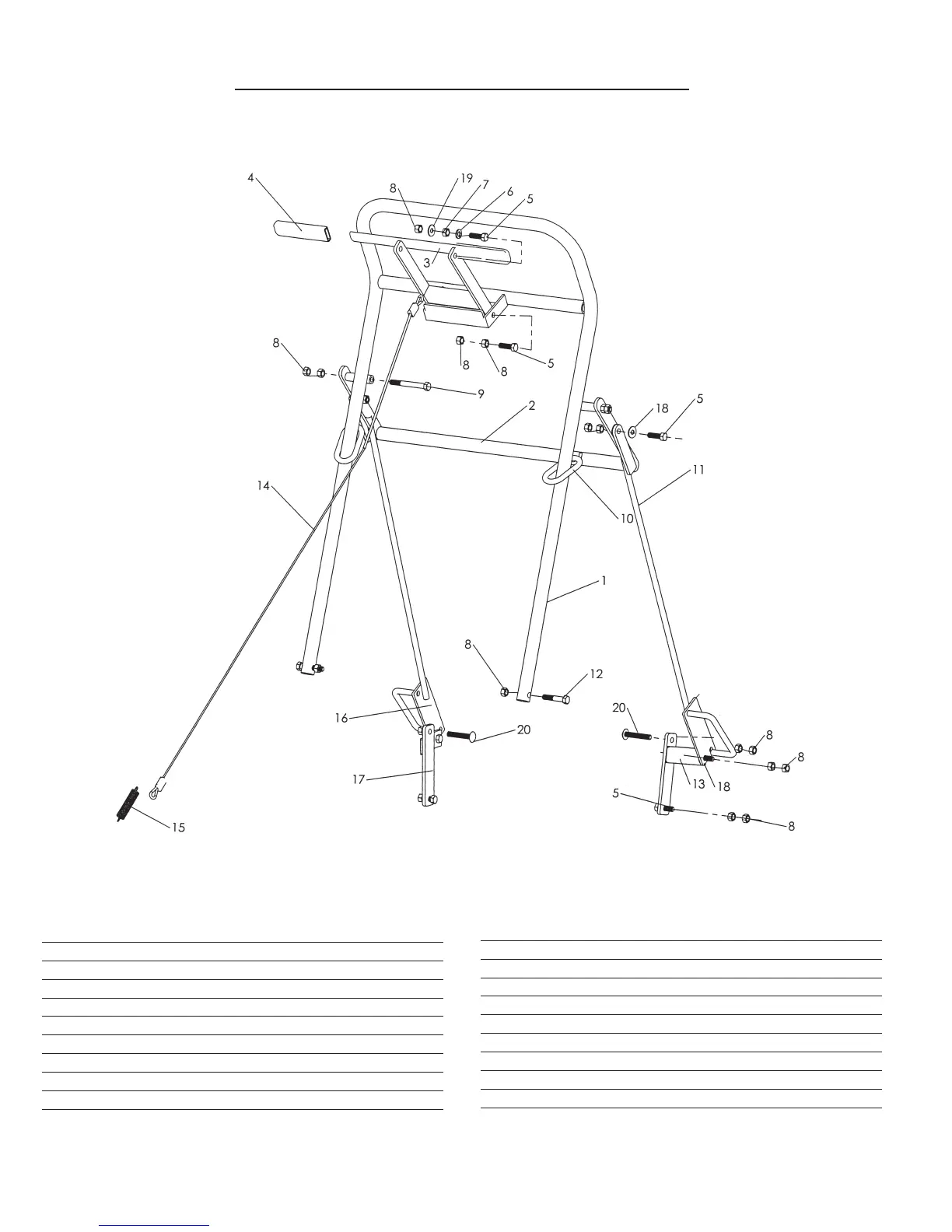

Parts Handle and Control
QTY/PER
KEY PART NO. SHEET DESCRIPTION
1 400128 1 MAIN HANDLE
2 400017 1 LOWERING HANDLE
3 400180 1 CONTROL HANDLE
4 100007 2 RUBBER GRIP
5 500134 9 3/8" x 1-1/4" BOLT
6 500130 1 3/8" LOCK WASHER
7 500129 1 3/8" NUT
8 500041 27 3/8" LOCK NUT
9 500178 2 3/8" x 3-1/4" BOLT
10 100251 2 HANDLE LOCK RING
CA-18 COMPACT AERATOR
QTY/PER
KEY PART NO. SHEET DESCRIPTION
11 400130 1 ARM, L.H. LINKAGE
12 500091 4 3/8" x 2" BOLT
13 400133 1 LH LINKAGE PIVOT
14 200035 1 CLUTCH CABLE
15 100034 1 SPRING
16 400129 1 ARM, R.H. LINKAGE
17 400132 1 RH LINKAGE PIVOT
18 500042 4 3/8" FLAT WASHER
19 500083 4 5/16" FLAT WASHER
20 500204 2 3/8" x 2-1/4" CARRIAGE BOLT
