19

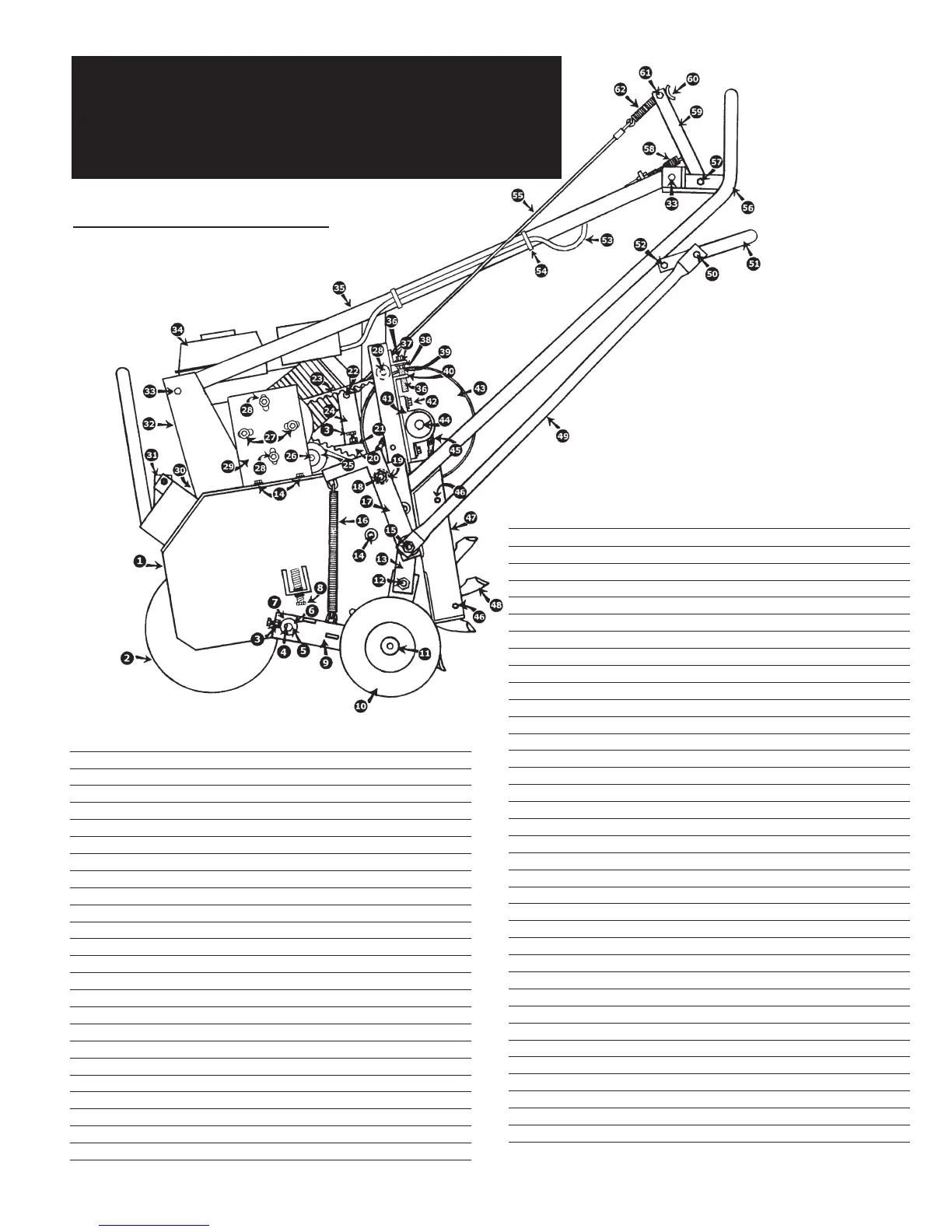

TA-26D TURF AERATOR
Left Side View
(Shown without Pulley Guard)
QTY/PER
KEY PART NO. SHEET DESCRIPTION
1 400073 1 FRAME, MAIN
2 100086 1 DRUM, WATER
3 500015 3 1/4" X 3/4" BOLT W/ LOCK WASHER & NUT
4 500011 6 KEY, 3/16" X 1" SQUARE
5 200012 1 SHAFT, KEYED
6 500054 2 WASHER, (3) 3/4" FLAT
7 500109 2
1/4"-28 X 5/8" BOLT W/ FENDER WASHER & LOCK WASHER
8 500044 2 1/2" X 1-3/4" BOLT W/ LOCK WASHER & (2) NUTS
9 400025 1 ARM, L.H. REAR AXLE SUPPORT
10 100031 2 TIRE ASSEMBLY, 8" REAR
11 100049 2 PIN W/ CLIP, REAR AXLE
12 500131 4 NUT, 1/2" LOCK
13 300006 2 FLAT, PIVOT
14 500060 6 3/8" X 1" BOLT W/ FLAT WASHER, LOCK WASHER & NUT
15 500046 2 1/2" X 2" BOLT W/ (3) FLAT WASHERS & (2) LOCK NUTS
16 100040 2 SPRING, FRAME
17 400015 2 ARM, SPRING
18 500047 2 1/2" X 2-1/2" BOLT W/ (2) LOCK NUTS
19 300055 2 SPACER W/ (2) FLAT WASHERS, & BUSHING
20 400021 1 ARM, IDLER
21 500001 1 GREASE FITTING, 1/4" X 28
22 500107 1 3/8" X 1" BOLT W/ (2) FLAT WASHERS & LOCK NUT
23 100039 1 V-BELT, BX43
24 400020 1 ARM, CLUTCH
25 100010 1 PULLEY, IDLER
QTY/PER
KEY PART NO. SHEET DESCRIPTION
26 500008 1 3/8" X 2" BOLT W/ LOCK WASHER & NUT
27 500099 2 3/8" X 1-1/4" BOLT W/ FLAT WASHER, LOCK WASHER & NUT
28 500098 3
3/8" X 3-1/2" BOLT W/ (2) FLAT WASHERS, LOCK WASHER & (2) NUTS
29 300037 1 PLATE, ADJUSTER
30 500005 4
5/16" X 1-1/2" BOLT W/ LOCK WASHER & NUT (NOT SHOWN)
31 300009 1 WEIGHT STOP
32 300071 1 PLATE, HANDLE BRACE GUSSET
33 500051 6 3/8" X 1" BOLT W/ LOCK NUT
34 100037 1 ENGINE W/ EXHAUST DEFLECTOR, 4HP HONDA
35 400115 1 BRACE, HANDLE
36 500114 2 5/16" X 2-1/4" TAP BOLT
37 500083 2 WASHER, 5/16" FLAT
38 500115 2 WASHER, 5/16" LOCK
39 500101 2 NUT, 5/16"
40 300049 2 PLATE, CHAIN TIGHTENING
41 100013 2 BEARING W/ COLLAR, 3/4" PILLOW BLOCK
42 500010 4
5/16" X 1-3/4" BOLT W/ (2) FLAT WASHERS, LOCK WASHER & NUT
43 100041 1 9" PULLEY W/ 3/4" HUB & 3/16" SQ. KEY
44 200011 1 JACK SHAFT W/ #40 X 13 SPROCKET & HUB
45 100108 1 CHAIN, #40 X 139 PITCH
46 500124 2 5/16" X 3/4" CARRIAGE BOLT W/ LOCK NUT
47 400071 1 GUARD, CHAIN
48 100032 42 TINE, PLUGGING
49 300007 2 ARM, LINKAGE
50 500049 2 3/8" X 1-1/4" BOLT W/ FLAT WASHER & (2) LOCK NUTS
51 400027 1 HANDLE, LOWERING
52 500048 2 3/8" X 3-1/2" BOLT W/ (2) LOCK NUTS
53 100036 1 CABLE W/ CONNECTING ENDS, THROTTLE
54 100020 2 TIE, PLASTIC
55 200008 1 CABLE, CLUTCH
56 400028 1 HANDLE, MAIN
57 500050 2 3/8" X 1-1/4" BOLT W/ (2) LOCK NUTS
58 100035 1 SPRING, THROTTLE CABLE CONNECTING
59 400053 1 HANDLE, CONTROL
60 100033 2 GRIP 1/8" X 1"
61 500055 1 3/8" X 1-1/4" BOLT W/ LOCK WASHER, LOCK NUT & NUT
62 100034 1 SPRING, CLUTCH CABLE
TA-26D TURF AERATOR
(S.N. 000252 & UP)
PARTS LIST
