Classen 60-RT - Parts Handle and Control Assembly

14

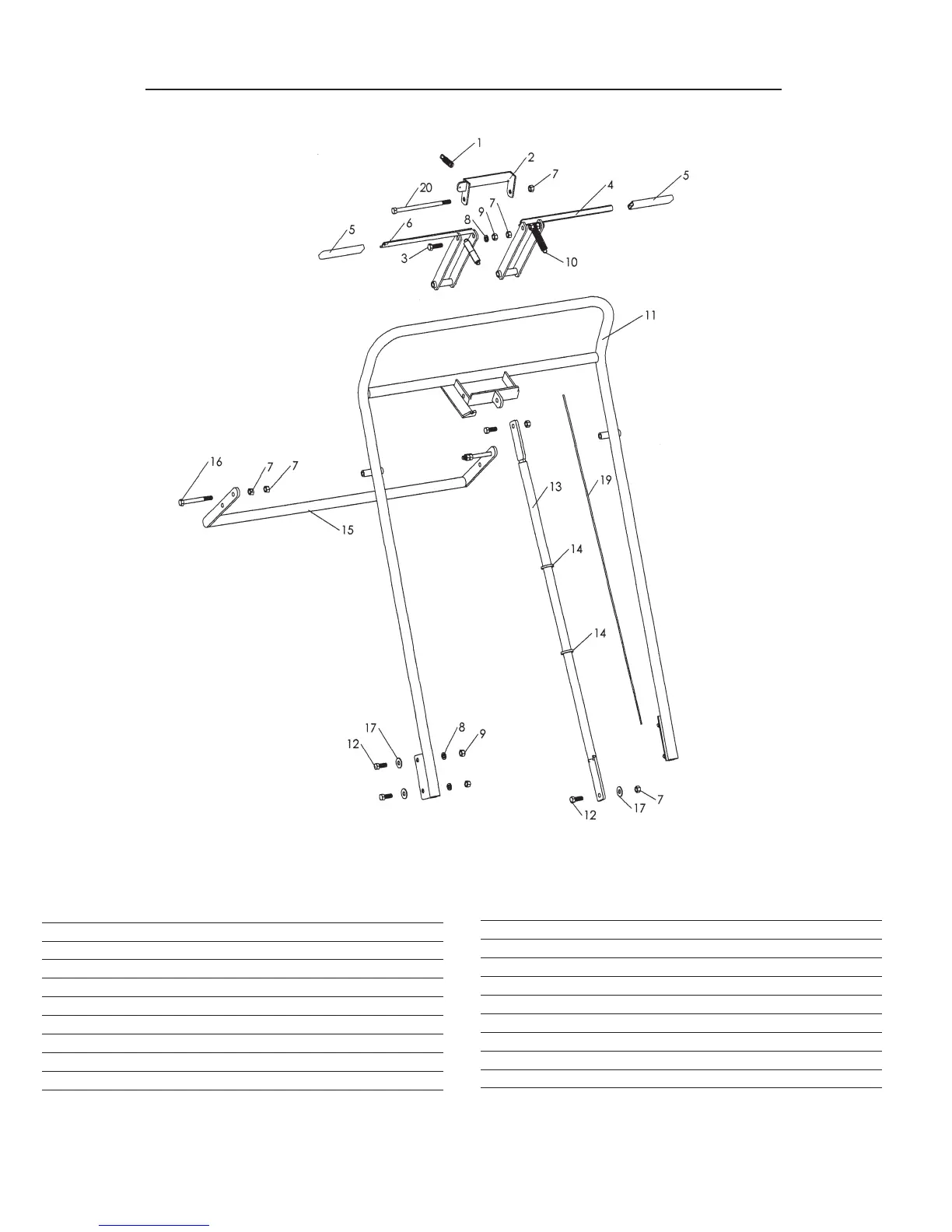

Parts Handle and Control Assembly
TA-25D SPLIT-DRIVE AERATOR
QTY/PER
KEY PART NO. SHEET DESCRIPTION
1 100035 1 THROTTLE CABLE CONNECTING SPRING
2 400088 1 THROTTLE ARM
3 500134 2 3/8" x 1-1/4" BOLT
4 400081 1 CONTROL HANDLE (L.H.)
5 100007 2 RUBBER GRIP
6 400090 1 CONTROL HANDLE (R.H.)
7 500041 9 3/8" LOCK NUT
8 500130 6 3/8" LOCK WASHER
9 500129 6 3/8" NUT
10 100034 2 CLUTCH CABLE SPRING
QTY/PER
KEY PART NO. SHEET DESCRIPTION
11 400028 1 MAIN HANDLE
12 500043 6 3/8" x 1" BOLT
13 300054 1 HANDLE BRACE
14 100020 2 PLASTIC TIE
15 400027 1 LOWERING HANDLE
16 500170 2 3/8" x 3-1/2" BOLT
17 500042 4 3/8" FLAT WASHER
18 200020 2 CLUTCH CABLE, (NOT SHOWN)
19 100149 1 THROTTLE CABLE w/ CONNECTING ENDS
20 500162 1 3/8" x 6-1/2" BOLT
