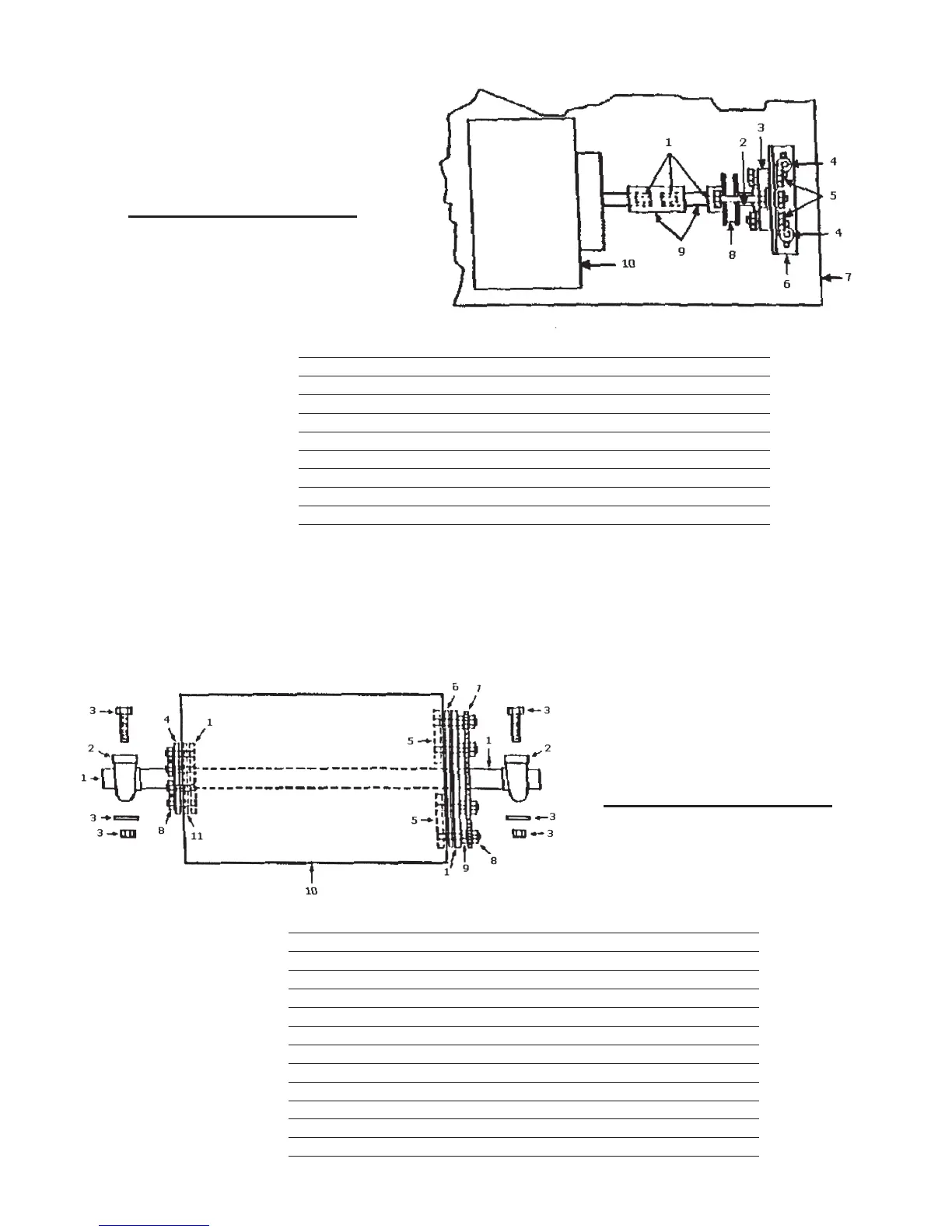

Classen 60-RT - Engine Pulley Components; Water Drum Components

21
Engine Pulley
Components
TA-26D TURF AERATOR
QTY/PER
KEY PART NO. SHEET DESCRIPTION
1 500011 6 KEY, 3/16" x 1" SQUARE
2 500098 3 3/8" x 3-1/2" BOLT w/ (2) FLATS, LOCK, & (2) NUTS
3 100081 1 BEARING, 3/4" 2-BOLT
4 500060 6 3/8" x 1" BOLT w/ FLAT, LOCK, & NUT
5 500099 2 3/8" x 1-1/4" BOLT w/ FLAT, LOCK, & NUT
6 300037 1 PLATE, ADJUSTER
7 400073 1 FRAME, MAIN
8 100038 1 PULLEY, 3/4" x 3"
9 200013 1 COUPLER w/ STUB SHAFT, 3/4"
10 100037 1 ENGINE, 4.0 HP HONDA
QTY/PER
KEY PART NO. SHEET DESCRIPTION
1 700010 1 AXLE, DRUM
2 100004 4 BEARING w/ ECCENTRIC COLLAR, 1" PILLOW BLOCK
3 500040 8 1/2" x 1-3/4" BOLT w/ FLAT WASHER & LOCK NUT
4 100083 1 WASHER, SMALL STEEL
5 700011 2 INNER HALF PLATE w/ STUDS
6 100084 1 GASKET, LARGE RUBBER
7 200015 1 SPROCKET, #40 x 30
8 500100 12 LOCK NUT, 5/16" TWO-WAY
9 500101 6 NUT, 5/16" STANDARD
10 100086 1 DRUM, WATER
11 100087 1 GASKET, SMALL RUBBER
12 100108 1 CHAIN, #40 x 139 PITCH (NOT SHOWN)
13 100109 1 PLUG, WATER DRUM (NOT SHOWN)
Water Drum
Components
TA-26D TURF AERATOR
Top View Looking Down on the Front of the Aerator
Front View of Water Drum & Mounting
