TA-26D TURF AERATOR

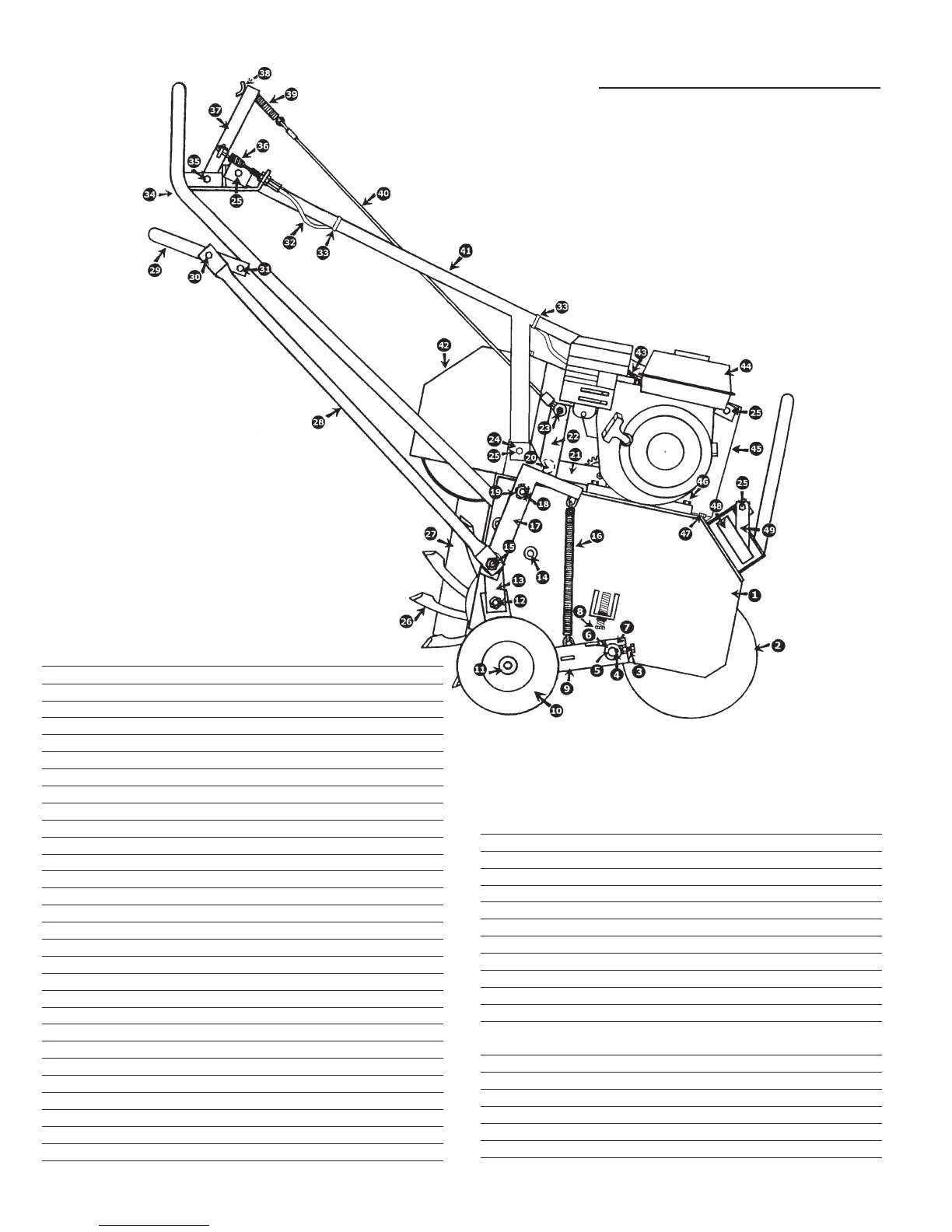

Right Side View
QTY/PER
KEY PART NO. SHEET DESCRIPTION
1 400073 1 FRAME, MAIN
2 100086 1 DRUM, WATER
3 500015 3 1/4" X 3/4" BOLT W/ LOCK WASHER & NUT
4 500011 6 KEY, 3/16" X 1" SQUARE
5 200012 1 SHAFT, KEYED
6 500054 2 WASHER, (3) 3/4" FLAT
7 500109 2
1/4"-28 X 5/8" BOLT W/ FENDER WASHER & LOCK WASHER
8 500044 2 1/2" X 1-3/4" BOLT W/ LOCK WASHER & 2 NUTS
9 400026 1 ARM, R.H. REAR AXLE SUPPORT
10 100031 2 TIRE ASSEMBLY, 8" REAR
11 100049 2 PIN W/ CLIP, REAR AXLE
12 500131 4 NUT, 1/2" LOCK
13 300006 2 FLAT, PIVOT
14 500060 6 3/8" X 1" BOLT W/ FLAT WASHER, LOCK WASHER & NUT
15 500046 2 1/2" X 2" BOLT W/ (3) FLAT WASHERS & (2) LOCK NUTS
16 100040 2 SPRING, FRAME
17 400015 2 ARM, SPRING
18 500047 2 1/2" X 2-1/2" BOLT W/ (2) LOCK NUTS
19 300055 2 SPACER W/ (2) FLAT WASHERS & BUSHING
20 100021 2 BUSHING, BRASS
21 400021 1 ARM, IDLER
22 400020 1 ARM, CLUTCH
23 500107 1 3/8" X 1" BOLT W/ 2 FLAT WASHERS & LOCK NUT
24 500042 1 WASHER, 3/8" FLAT
25 500051 6 3/8" X 1 BOLT W/ LOCK NUT
26 100032 42 TINE, PLUGGING
27 400071 1 GUARD, CHAIN
28 300007 2 ARM, LINKAGE
29 400027 1 HANDLE, LOWERING
30 500049 2 3/8" X 1-1/4" BOLT W/ FLAT WASHER & (2) LOCK NUTS
QTY/PER
KEY PART NO. SHEET DESCRIPTION
31 500048 2 3/8" X 3-1/2" BOLT W/ (2) LOCK NUTS
32 100036 1 CABLE W/ CONNECTING ENDS, THROTTLE
33 100020 2 TIE, PLASTIC
34 400028 1 HANDLE, MAIN
35 500050 2 3/8" X 1-1/4" BOLT W/ (2) LOCK NUTS
36 100035 1 SPRING, THROTTLE CABLE CONNECTING
37 400053 1 HANDLE, CONTROL
38 100033 2 GRIP, 1/8" X 1"
39 100034 1 SPRING, CLUTCH CABLE
40 200008 1 CABLE, CLUTCH
41 400115 1 BRACE, HANDLE
42 400029 1 PULLEY GUARD W/ (3) 5/16" X 3/4" BOLTS,
(3) FLAT WASHERS, (3) LOCK WASHERS & NUT
43 100027 1 SPRING, THROTTLE
44 100037 1 ENGINE W/ EXHAUST DEFLECTOR, 4HP HONDA
45 300071 1 PLATE, HANDLE BRACE GUSSET
46 500005 4 5/16" X 1-1/2" BOLT W/ LOCK WASHER & NUT
47 500056 4 5/16" X 3/4" BOLT W/ FLAT WASHER, LOCK WASHER & NUT
48 400057 1 WEIGHT BAR
49 300009 1 WEIGHT STOP
To Next Page
