Classen 60-RT - Drive Components

22

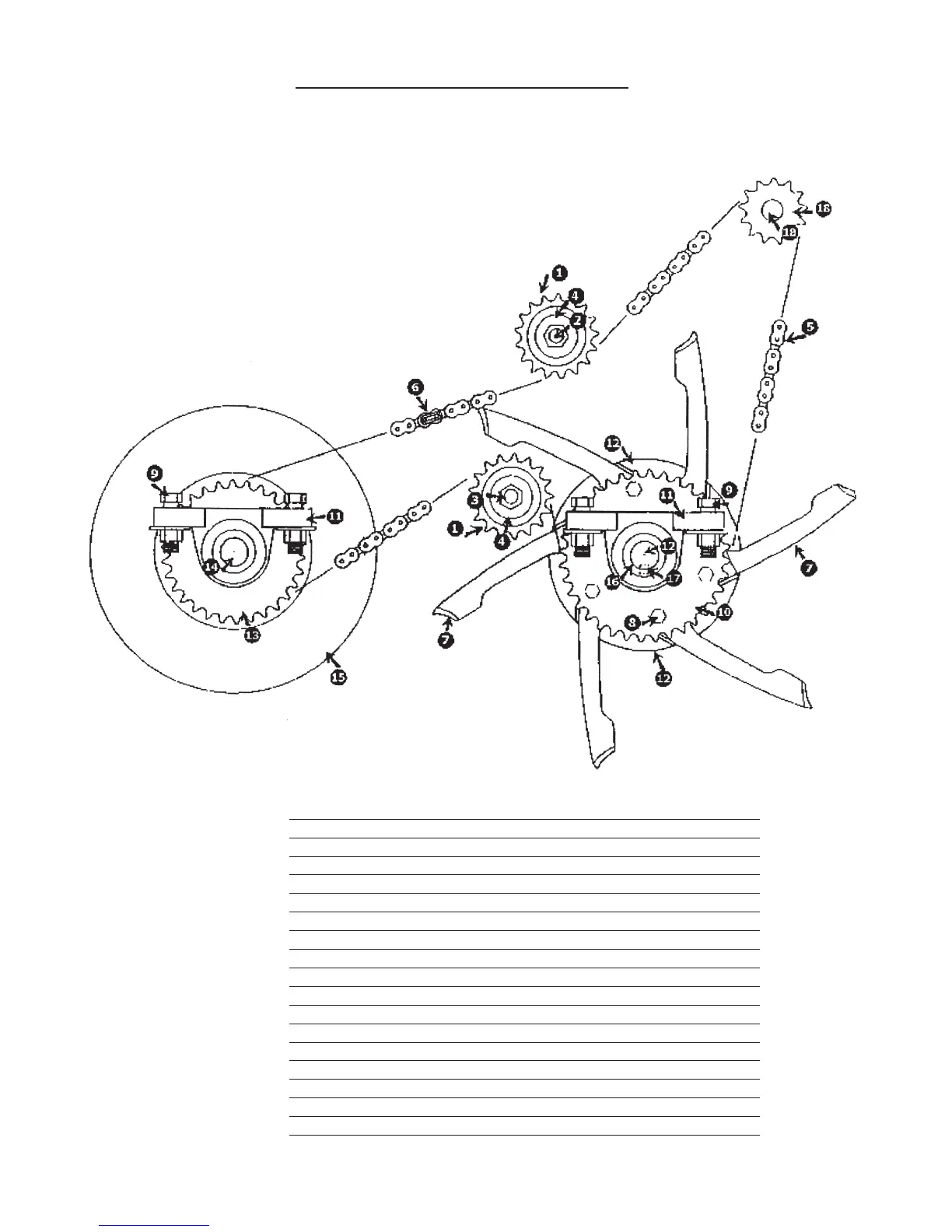

Drive Components
TA-26D TURF AERATOR
QTY/PER
KEY PART NO. SHEET DESCRIPTION
1 100043 2 IDLER SPROCKET, #40 x 17 x 1/2"
2 500037 1 1/2" x 1-3/4" BOLT w/ LOCK & NUT
3 500038 1 LOCK & NUT, 1/2"
4 500034 2 FLAT WASHERS, (2) 1/2"
5 100108 1 CHAIN, #40 x 139 PITCH
6 100025 1 CONNECTING LINK, #40
7 100032 42 TINE, PLUGGING
8 500128 84 5/16" x 1-1/2" BOLT w/ LOCK NUT
9 500040 8 1/2" x 1-3/4" BOLT w/ FLAT & LOCK NUT
10 200009 1 SPROCKET w/ 1" HUB, #40 x 36
11 100004 4 BEARING w/ ECCENTRIC COLLAR, 1" PILLOW BLOCK
12 700019 1 SHAFT ASSEMBLY, TINE DISC
13 200015 1 SPROCKET, #40 x 30
14 700010 1 AXLE, DRUM
15 100086 1 DRUM, WATER
16 300011 1 SPACER, 1" OUTSIDE DRUM SHAFT
17 500003 1 KEY, 1/4" x 7/8" HALF MOON
18 200011 1 JACK SHAFT ASSEMBLY, #40 x 13
