7

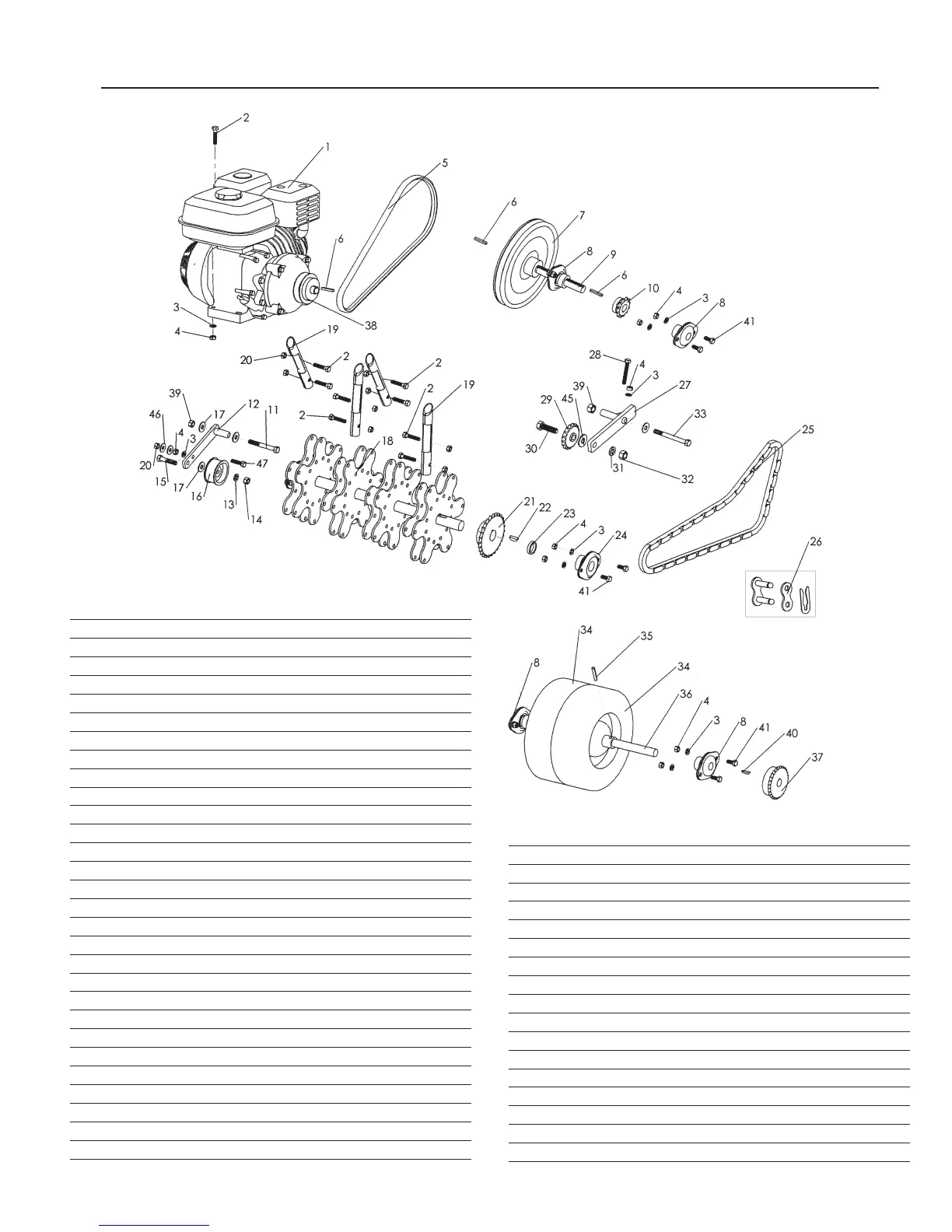

Parts Power Train and Tine Rotor Assembly
QTY/PER
KEY PART NO. SHEET DESCRIPTION
1 100037 1 HONDA ENGINE 4.0 HP
1 100094 1 BRIGGS & STRATTON I.C. 3.5 HP
2 500147 52 5/16" x 1-1/2" BOLT
3 500115 18 5/16" LOCK WASHER
4 500101 18 5/16" NUT
5 100255 1 BX 38 V-BELT
6 500011 3 3/16" SQUARE KEY
7 100245 1 PULLEY & HUB w/o KEY, AB x 3/4" x 9"
8 100247 4
BEARING, PLATED FLANGE w/ COLLAR, 3/4" 2 BOLT
9 200034 1 JACKSHAFT, 3/4"
10 100252 1 SPROCKET, #40 B12 x 3/4"
11 500159 1 3/8" x 2-3/4" BOLT
12 400136 1 ARM, BELT TIGHTENER
13 500130 1 3/8" LOCK WASHER
14 500129 1 3/8" NUT
15 500091 1 3/8" x 2" BOLT
16 100010 1 IDLER PULLEY
17 500042 3 3/8" FLAT WASHER
18 700023 1 TINE SHAFT ASSEMBLY
19 100032 24 TINE
20 500169 50 5/16" LOCK NUT
21 100253 1 SPROCKET, #40 B27 x 1"
22 500003 1 1/4" x 7/8" HALF MOON KEY
23 300073 1 SPACER, TINE SHAFT
24 100248 2
BEARING, PLATED FLANGE w/ COLLAR, 1" 2 BOLT
25 100254 1 CHAIN, #40 x 109 PITCH
26 100025 1 CONNECTING LINK
27 400137 1 ARM, CHAIN TIGHTENER
28 500114 1 5/16" x 2-1/4" TAP BOLT
29 100043 1 IDLER SPROCKET
CA-18 COMPACT AERATOR
QTY/PER
KEY PART NO. SHEET DESCRIPTION
30 500174 1 1/2" x 1-3/4" BOLT
31 500006 1 1/2" LOCK WASHER
32 500106 1 1/2" NUT
33 500175 1 3/8" x 3-3/4" BOLT
34 100246 2 TIRE & WHEEL, 10 x 3W
35 500172 2 ROLL PIN, 1/4" x 1-1/2"
36 600026 1 AXLE, FRONT DRIVE
37 100249 1 SPROCKET, #40 B21 x 3/4"
38 100038 1 PULLEY w/ 3/4" HUB, 3/4" x 3"
39 500041 2 3/8" LOCK NUT
40 500173 1 KEY, 3/16" x 7/8" HALF MOON
41 500140 12 5/16" x 3/4" BOLT
42 100263 1 DEFLECTOR, HONDA ENG. (NOT SHOWN)
43 100264 1 DEFLECTOR, B&S ENG. (NOT SHOWN)
44 100265 2 SCREWS, DEFLECTOR
45 500034 1 1/2" FLAT WASHER
46 500083 2 5/16" FLAT WASHER
47 500073 1 5/16" x 1-1/4" BOLT
