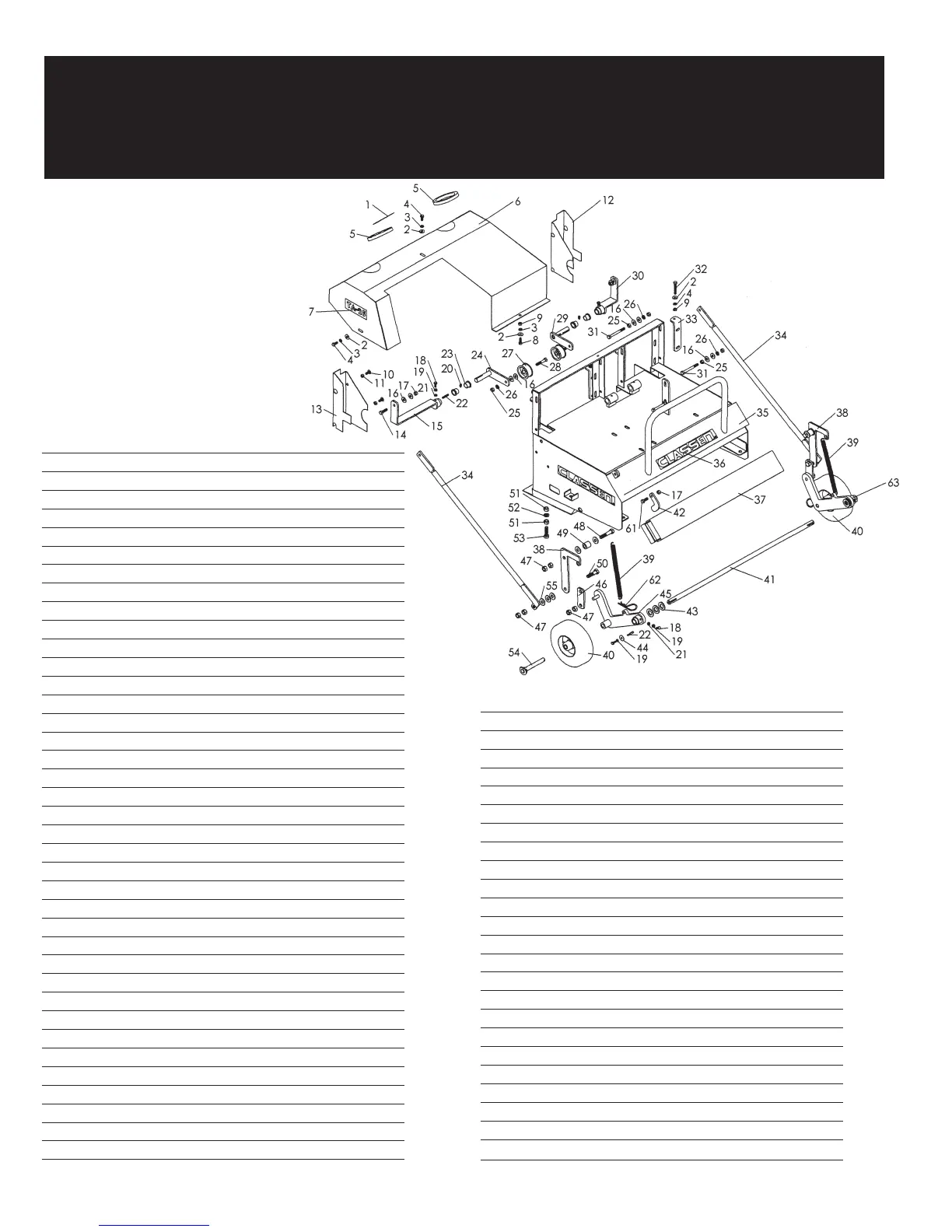

Classen 60-RT - Ta-25 D Split-Drive Aerator; Parts Main Frame

12
QTY/PER
KEY PART NO. SHEET DESCRIPTION
1 100069 1 DECAL, "DANGER"
2 500083 8 5/16" FLAT WASHER
3 500115 8 5/16" LOCK WASHER
4 500140 3 5/16" x 3/4" BOLT
5 100419 2 RUBBER EDGING
6 400092 1 PULLEY GUARD
7 100152 2 DECAL, "TA-25"
8 500133 1 5/16" x 1" BOLT
9 500101 5 5/16" NUT
10 500163 4 5/16" x 3/4" CARRIAGE BOLT
11 500169 4 5/16" LOCK NUT
12 400071 1 CHAIN GUARD, (L.H.)
13 400089 1 CHAIN GUARD, (R.H.)
14 500134 2 3/8" x 1-1/4" BOLT
15 400085 1 CLUTCH ARM, (R.H.)
16 500042 12 3/8" FLAT WASHER
17 500041 2 3/8" LOCK NUT
18 500029 4 1/4" x 3/4" BOLT
19 500136 4 1/4" NUT
20 500001 2 1/4" x 28 GREASE FITTING
21 500137 4 1/4" LOCK WASHER
22 500011 4 3/16" x 1" SQ. KEY
23 100021 4 BRASS BUSHING
24 400021 1 IDLER ARM, (R.H.)
25 500129 7 3/8" NUT
26 500130 4 3/8" LOCK WASHER
27 100010 2 IDLER PULLEY
28 500091 2 3/8" x 2" BOLT
29 400087 1 IDLER ARM, (L.H.)
30 400083 1 CLUTCH ARM, (L.H.)
31 500170 2 3/8" x 3-1/2" BOLT
32 500114 4 5/16" x 2-1/4" TAP BOLT
33 300049 4 CHAIN TIGHTENING PLATE
34 300007 2 LINKAGE ARM
35 400079 1 TA-25D MAIN FRAME
36 100074 3 DECAL, "CLASSEN"
37 400057 1 WEIGHT BAR
38 400015 2 SPRING ARM
39 100040 2 FRAME SPRING
Parts
Main Frame
TA-25D SPLIT-DRIVE AERATOR
(S.N. 100 & UP)
PARTS LIST
QTY/PER
KEY PART NO. SHEET DESCRIPTION
40 100031 2 8" REAR TIRE ASSEMBLY
41 200012 1 KEYED SHAFT
42 300009 1 WEIGHT STOP FLAT
43 500194 6 3/4" FLAT WASHER
44 500164 2 1/4" FENDER WASHER
45 400026 1 REAR AXLE SUPPORT ARM, (R.H.)
46 300006 2 PIVOT FLAT
47 500131 12 1/2" LOCK NUT
48 500135 2 1/2" x 2-1/2" BOLT
49 300005 2 BUSHING SPACER
50 500149 2 1/2" x 2" BOLT
51 500106 4 1/2" NUT
52 500006 2 1/2" LOCK WASHER
53 500174 2 1/2" x 1-3/4" BOLT
54 300002 2 AXLE PIN
55 500034 8 1/2" FLAT WASHER
56 100096 1 DECAL, "ALL GUARDS" (N.S.)
57 100157 2 DECAL, "SPLIT-DRIVE" (N.S.)
58 100055 1 DECAL, "SERIAL NUMBER" (N.S.)
59 100257 1 DECAL, "PATENT" (N.S.)
60 100073 1 LUBRICATION TAG (N.S.)
61 500043 1 3/8" x 1" BOLT
62 500096 2 5/32" x 3" BRIDGE PIN CLIP
63 400025 1 REAR AXLE SUPPORT ARM, (L.H.)
64 500165 1 3/8" x 4-1/2" BOLT
TA-25D
SPLIT-DRIVE AERATOR
