6
QTY/PER
KEY PART NO. SHEET DESCRIPTION
1 400127 1 MAIN FRAME
2 400138 1 PULLEY GUARD
3 400131 1 HANDLE MOUNT
4 500129 8 3/8" NUT
5 500130 6 3/8" LOCK WASHER
6 500043 4 3/8" x 1" BOLT
7 400126 2 WEIGHT BAR
8 300080 2 1/2" WHEEL PIVOT PIN
9 300081 2 WEIGHT STOP
10 500133 2 5/16" x 1" BOLT
11 500115 2 5/16" LOCK WASHER
12 500101 2 5/16" NUT
13 600027 1 KEYED SHAFT
14 100031 2 REAR TIRE, 8"
15 500053 4 5/8" FLAT WASHER
16 500016 2 5/32" x 1-1/4" COTTER PIN
17 400142 1 ARM, L.H. REAR AXLE SUPPORT
18 500071 2 1/4" x 5/8" FINE BOLT
19 500137 6 1/4" LOCK WASHER
20 500164 4 1/4" FENDER WASHER
21 500029 4 1/4" x 3/4" BOLT
22 500136 4 1/4" NUT
23 100250 2 SPRING

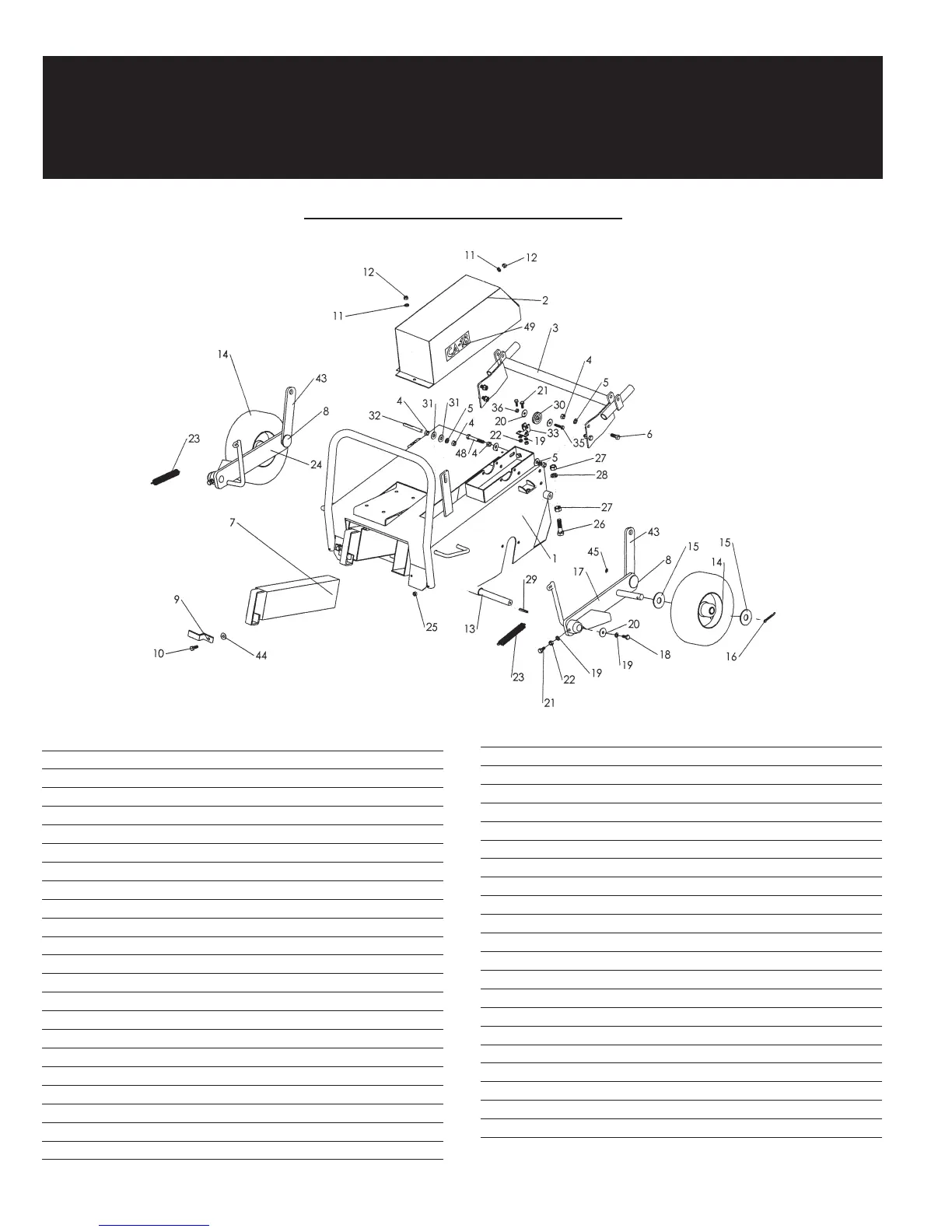

Parts Main Frame
CA-18 COMPACT AERATOR
(S.N. 1062 & UP)
PARTS LIST
QTY/PER
KEY PART NO. SHEET DESCRIPTION
24 400141 1 ARM, R.H. REAR AXLE SUPPORT
25 500169 2 5/16" LOCK NUT
26 500149 2 1/2" x 2" BOLT
27 500106 4 1/2" NUT
28 500006 2 1/2" LOCK WASHER
29 500011 2 3/16" SQUARE KEY
30 100270 1 PULLEY, CLUTCH CABLE SUPPORT
31 500042 4 3/8" FLAT WASHER
32 500179 1 V-BELT GUIDE BOLT (3/8" x 2-3/4")
33 300107 2 PULLEY MOUNTING BRACKET
34 100256 2 DECAL, "CA-18"
35 500218 1 1/4" x 1-1/4" BOLT
36 500139 1 1/4" LOCK NUT
37 500154 1 3/8" x 2-3/4" BOLT
38 100055 1 DECAL, "SERIAL NUMBER" (NOT SHOWN)
39 100069 1 DECAL, "DANGER" (NOT SHOWN)
40 100073 1 LUBRICATION TAG (NOT SHOWN)
41 100074 2 DECAL, "CLASSEN" (NOT SHOWN)
42 100096 1 DECAL, "ALL GUARDS" (NOT SHOWN)
43 300079 2 WHEEL PIVOT FLAT
44 500083 2 5/16" FLAT WASHER
45 500078 2 "E" RING
CA-18 COMPACT AERATOR
