10

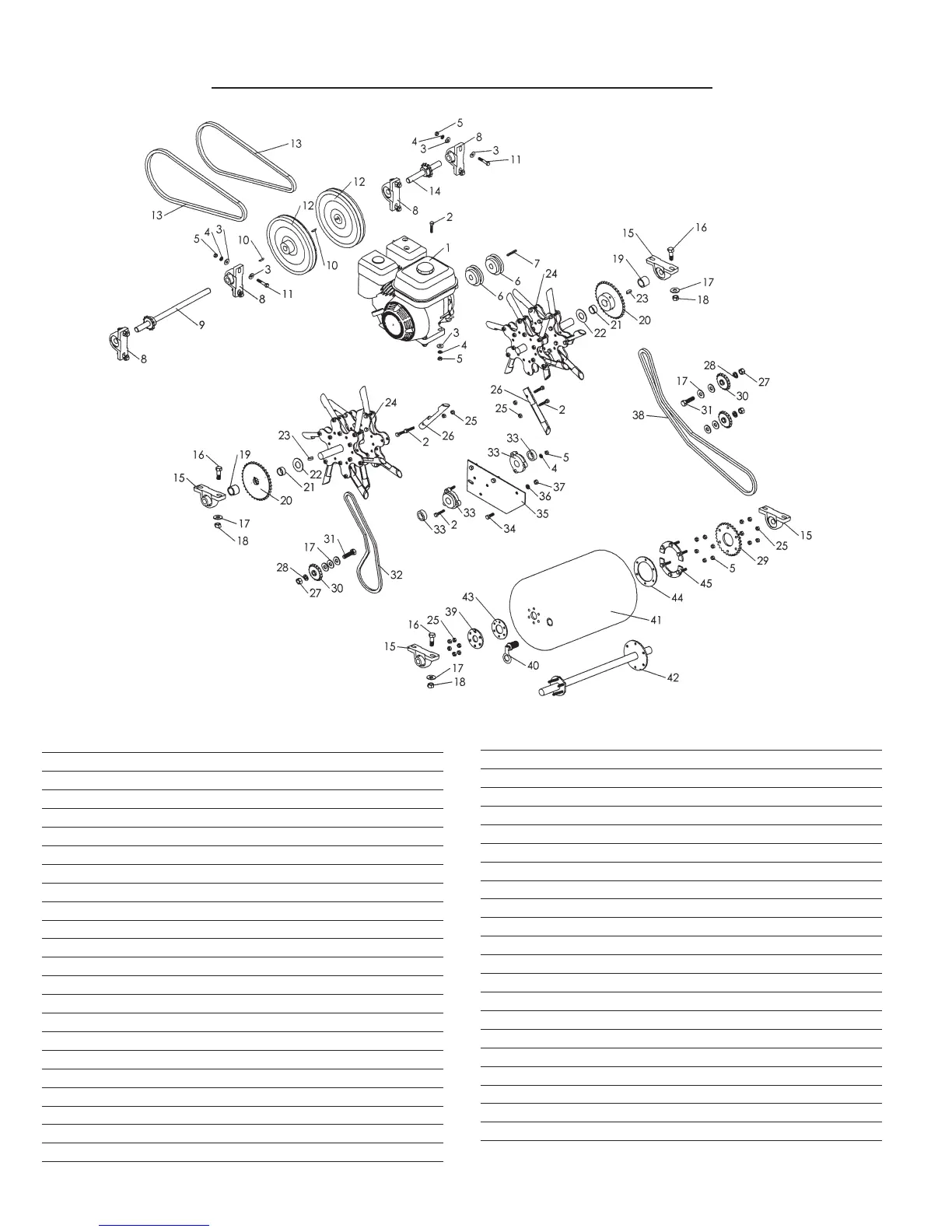

Parts Power Train Assembly
TA-17D SPLIT-DRIVE AERATOR
QTY/PER
KEY PART NO. SHEET DESCRIPTION
1 100037 1 4.0 HP HONDA ENGINE
2 500147 60 5/16" x 1-1/2" BOLT
3 500083 20 5/16" FLAT WASHER
4 500115 15 5/16" LOCK WASHER
5 500101 21 5/16" NUT
6 100420 2 3" x 3/4" PULLEY w/ HUB
7 500231 1 3/16" x 1-3/4" SQ. KEY
8 100013 4 3/4" BEARING w/ COLLAR
9 200024 1 JACK SHAFT ASSEMBLY, (R.H.)
10 500173 2 3/16" x 7/8" HALF MOON KEY
11 500074 8 5/16" x 1-3/4" BOLT
12 100245 2 9" PULLEY & HUB w/o KEY
13 100150 2 BX-45 V-BELT
14 200023 1 JACK SHAFT ASSEMBLY, (L.H.)
15 100004 4 1" BEARING w/ COLLAR
16 500150 8 1/2" x 1-1/2" BOLT
17 500034 15 1/2" FLAT WASHER
18 500131 8 1/2" LOCK NUT
19 300132 2 1" OUTSIDE SPACER
20 200009 2 #40 x 36 SPROCKET & HUB
21 300011 2 OUTSIDE DRUM SHAFT SPACER
22 300131 2 2" MACHINERY WASHER
23 500003 2 1/4" x 7/8" HALF MOON KEY
QTY/PER
KEY PART NO. SHEET DESCRIPTION
24 700018 2 TINE DISC SHAFT ASSEMBLY
25 500169 60 5/16" LOCK NUT
26 100032 24 PLUGGING TINE
27 500106 3 1/2" NUT
28 500006 3 1/2" LOCK WASHER
29 200015 1 #40 x 30 SPROCKET
30 100043 3 IDLER SPROCKET
31 500174 2 1/2" x 1-3/4" BOLT
32 100151 1 #40 x 75 PITCH CHAIN w/ LINK
33 100155 2 1" 3-BOLT FLANGE BEARING w/ COLLAR
34 500043 3 3/8" x 1" BOLT
35 300057 1 3/16" LOWER PLATE
36 500130 3 3/8" LOCK WASHER
37 500129 3 3/8" NUT
38 100108 1 #40 x 139 PITCH CHAIN
39 100083 1 SMALL STEEL WASHER
40 100109 1 WATER DRUM PLUG
41 100085 1 WATER DRUM
42 700009 1 DRUM AXLE
43 100087 1 SMALL RUBBER GASKET
44 100084 1 LARGE RUBBER GASKET
45 700011 2 INNER HALF-PLATE w/ STUDS
To Next Page
