13

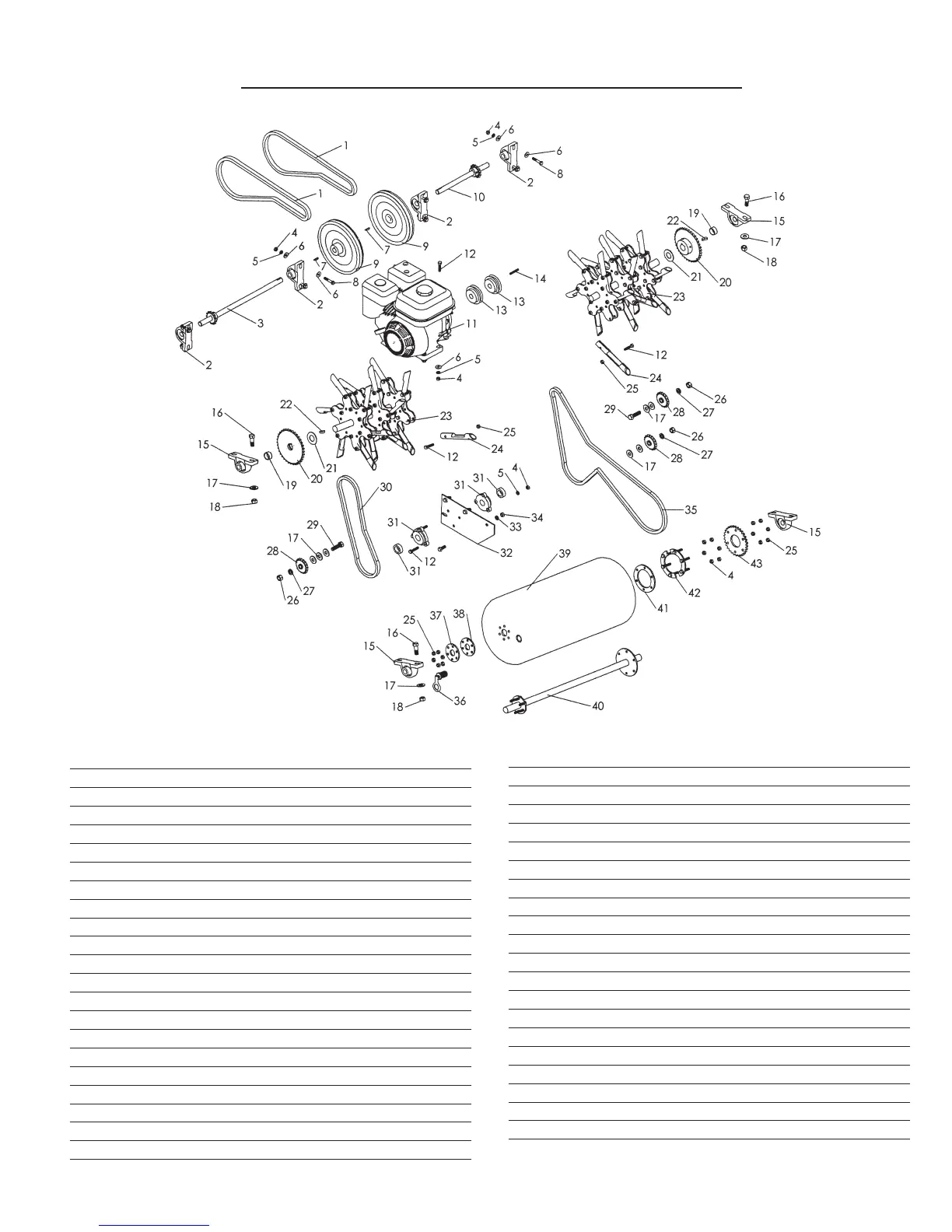

Parts Power Train Assembly
TA-25D SPLIT-DRIVE AERATOR
QTY/PER
KEY PART NO. SHEET DESCRIPTION
1 100150 2 BX-45 V-BELT
2 100013 4 3/4" BEARING w/ COLLAR
3 200022 1 JACK SHAFT ASSEMBLY, (R.H.)
4 500101 21 5/16" NUT
5 500115 15 5/16" LOCK WASHER
6 500083 20 5/16" FLAT WASHER
7 500173 2 3/16" x 7/8" HALF MOON KEY
8 500074 8 5/16" x 1-3/4" BOLT
9 100245 2 9" PULLEY & HUB w/o KEY
10 200021 1 JACK SHAFT ASSEMBLY, (L.H.)
11 100037 1 4.0 HP HONDA ENGINE
12 500147 79 5/16" x 1-1/2" BOLT
13 100420 2 3" x 3/4" PULLEY w/ HUB
14 500231 1 3/16" x 1-3/4" SQ. KEY
15 100004 4 1" BEARING w/ COLLAR
16 500150 8 1/2" x 1-1/2" BOLT
17 500034 15 1/2" FLAT WASHER
18 500131 8 1/2" LOCK NUT
19 300011 2 OUTSIDE DRUM SHAFT SPACER
20 200009 2 #40 x 36 SPROCKET & HUB
21 300131 2 2" MACHINERY WASHER
22 500003 2 1/4" x 7/8" HALF MOON KEY
QTY/PER
KEY PART NO. SHEET DESCRIPTION
23 700017 2 TINE DISC SHAFT ASSEMBLY
24 100032 36 PLUGGING TINE
25 500169 84 5/16" LOCK NUT
26 500106 3 1/2" NUT
27 500006 3 1/2" LOCK WASHER
28 100043 3 IDLER PULLEY
29 500174 2 1/2" x 1-3/4" BOLT
30 100151 1 #40 x 75 PITCH CHAIN w/ LINK
31 100155 2 1" 3-BOLT FLANGE BEARING w/ COLLAR
32 300057 1 3/16" LOWER PLATE
33 500130 3 3/8" LOCK WASHER
34 500129 3 3/8" NUT
35 100108 1 #40 x 139 PITCH CHAIN
36 100109 1 WATER DRUM PLUG
37 100083 1 SMALL STEEL WASHER
38 100087 1 SMALL RUBBER GASKET
39 100086 1 WATER DRUM
40 700010 1 DRUM AXLE
41 100084 1 LARGE RUBBER GASKET
42 700011 2 INNER HALF-PLATE w/ STUDS
43 200015 1 #40 x 30 SPROCKET
