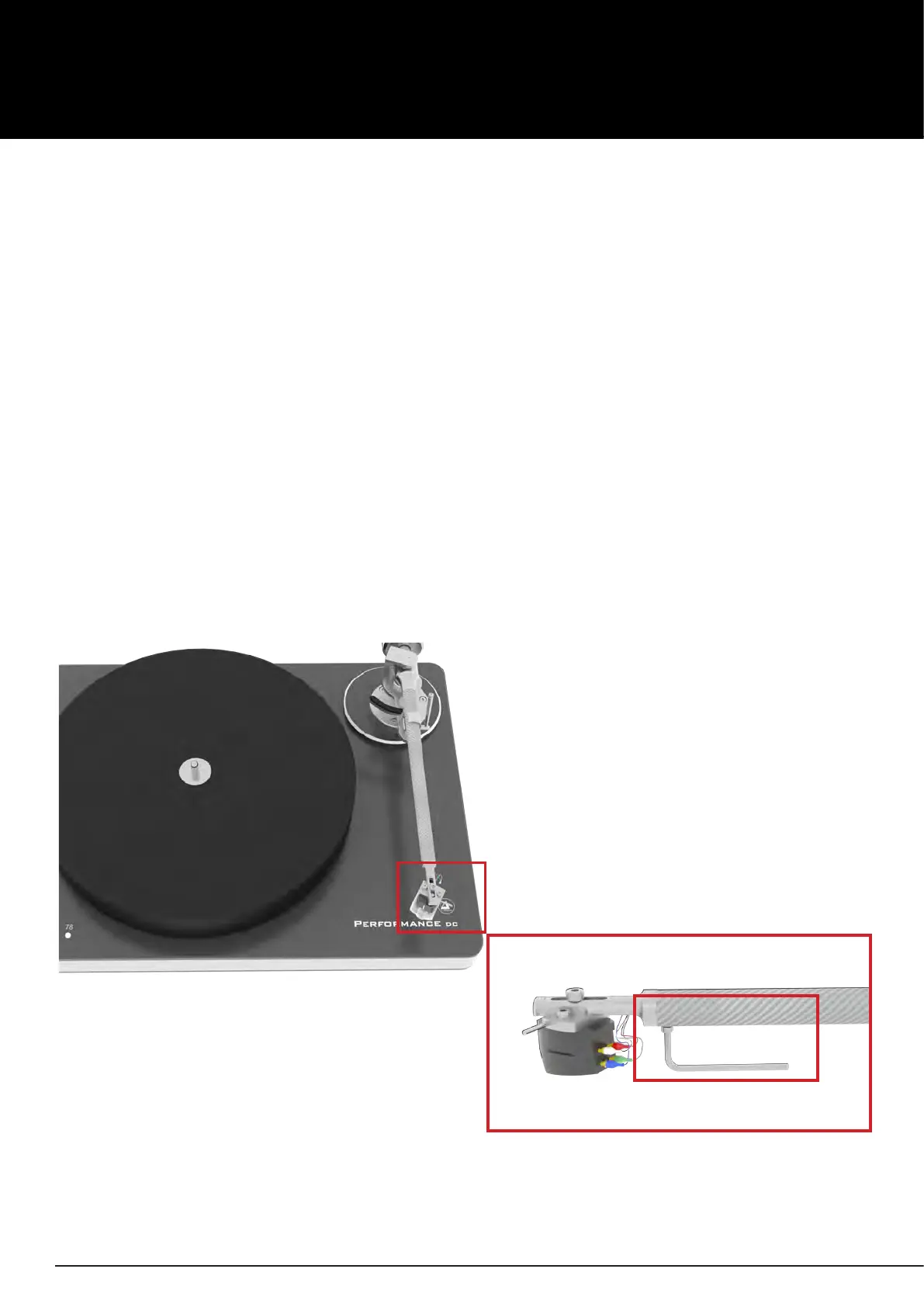

Pic. 14: Azimuth adjustment
5.4 Adjustment of the azimuth
The azimuth is the angle of the cartridge stylus to the record surface. Viewed from the front, the
cartridge needle has to be vertical to the record.
Please note: The azimuth is already set at the factory.
Lower the cartridge onto the record surface and check the position of the needle if you still want to
optimize the azimuth.
Please proceed as following to change the azimuth:
Loosen the screw (hex wrench #2) on the bottom side of the tonearm tube near the headshell.
Now you can adjust the azimuth by turning the headshell in the tonearm tube.
Carefully tighten the small hex screw again without changing the previously selected position.
We recommend the “Mini Level Gauge” from Clearaudio (Art.No.: AK001; also available from www.
analogshop.de) to check the adjustment.
