Clearaudio Concept - Mounting the Tonearm Assembly

User manual / Bedienungsanleitung
Made in Germany Page / Seite 9

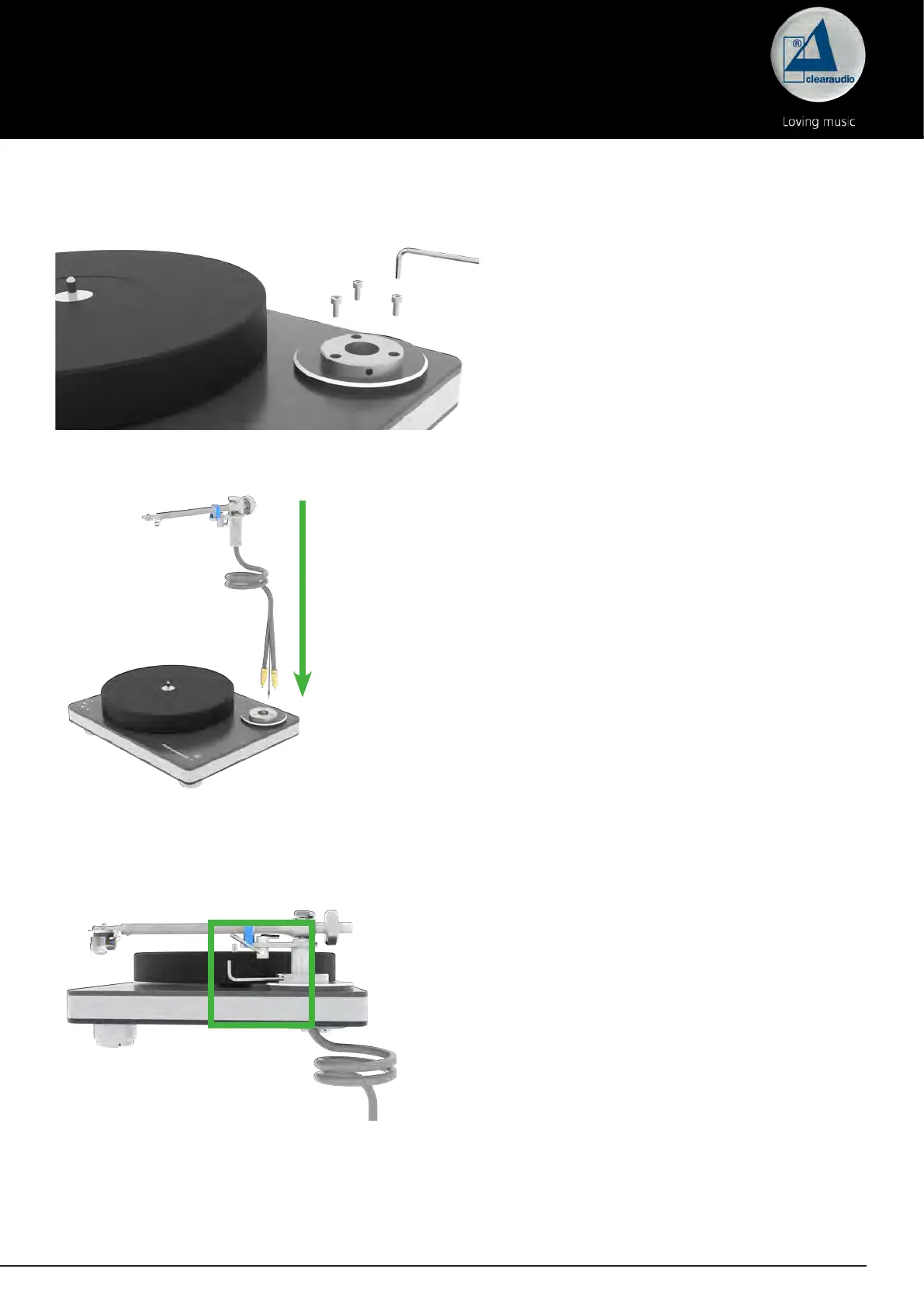

Pic. 5: Mounting the tonearm
Pic. 6: Locking the tonearm
3. Mounting the concept / Verify tonearm
Pic. 4: Assembling the clamping base
Take the clamping ring and place it on the
recess in the tonearm base.
Now you can attach the clamping ring to the
tonearm base with the 3 supplied M4 x 10
screws.
Make sure that the side hole of the clamping
ring remains accessible (see Pic. 4).
First insert the tonearm cable and then the
tonearm foot of the concept / Verify tonearm
into the hole of the clamping ring (Pic. 5).
Now x the tonearm with the screws and
the hex wrench. Do not over-tighten for later
adjustments (Pic. 6)!
