boiler
has
a
lead
sulfide
(infrared
sensitive)
detector.
BURNER
SWITCH
(Figure
1-1)
A
manually
operated
start-stop
switch
used
for di-
rectly
starting
and
stopping
burner
operation.
FORCED
DRAFT
FAN
MOTOR
(Figure
1-1)
Directly
drives
a
forced
draft
fan
to
provide
com-
bustion
air.
Also
referred
to
as
blower
motor.
On
an
oil
fired
unit
the
oil
pump
is
driven
from
this
motor
by
a V
-belt.
BLOWER
MOTOR
COMBUSTION
AIR PROVING
SWITCH
DAMPER
MOTOR
AUXILIARY
SWITCH
DAMPER
LINKAGE
BUTTERFLY
GAS
VALVE
BLOWER MOTOR
STARTER
Chapter
1-General
Description
and
Principles
of
Operation
FORCED
DRAFT
FAN
MOTOR
STARTER
(Figure
1-1)
Energizes
forced
draft
fan
(blower)
motor.
DAMPER
MOTOR
(Figure
1-1)
A
two
position
motor
that
positions
the
air
damper
through
a
linkage
system,
to
provide
proper
air-
fuel
ratio
under
low fire
and
high
fire
conditions.
The
motor
is
powered
to
the
open
position
and
spring
returned
to
the
closed.
The
motor
actuates
one
or
more
auxiliary
switches.
PROGRAMMING
AND FLAME
SAFEGUARD
CONTR.OL
-------mrTIMER
-
DIAL
---------!!!!-GAS-OIL
SWITCH
----OIL
PUMP
OIL PRESSURE
GAUGE

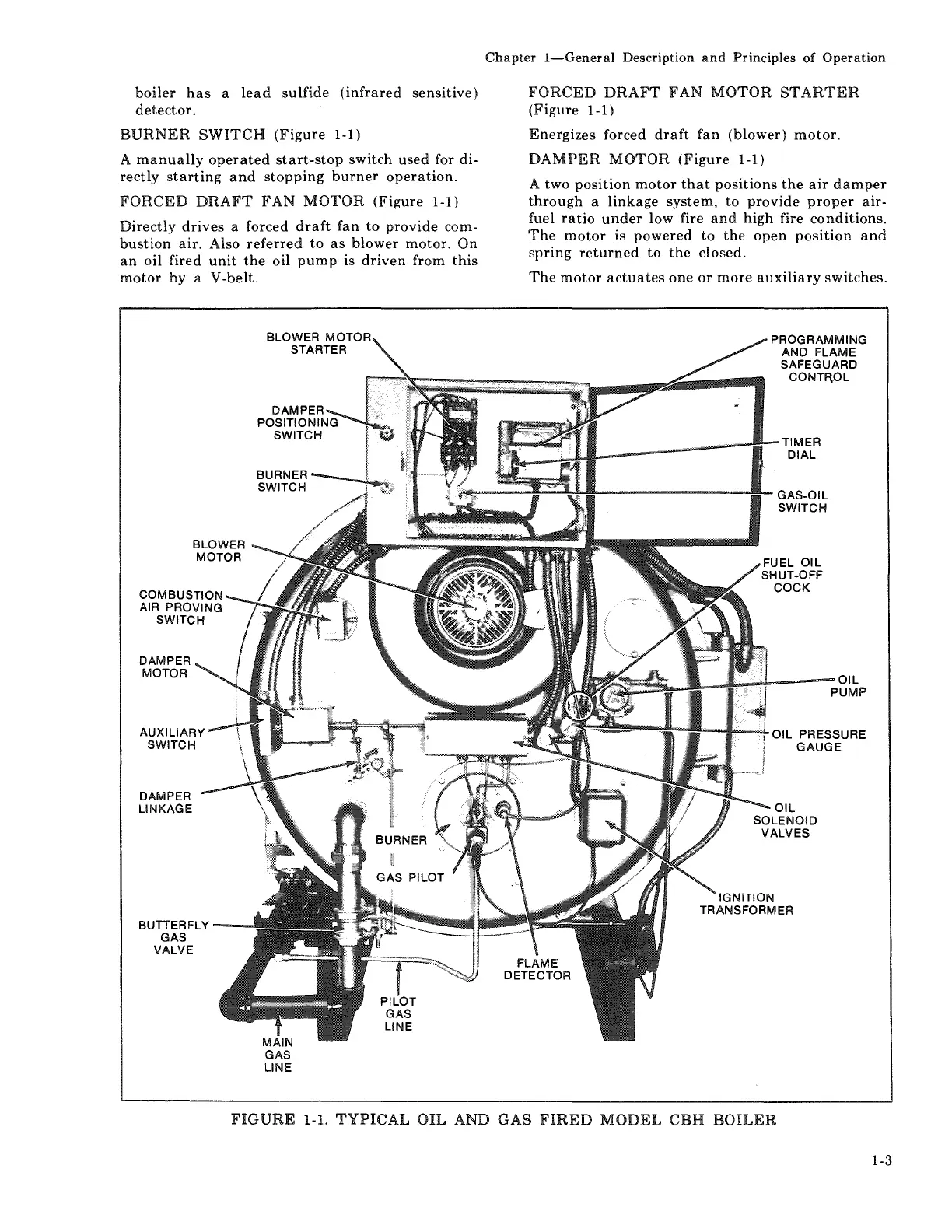

FIGURE
1-l.
TYPICAL
OIL
AND
GAS
FIRED
MODEL
CBH
BOILER
1-3
