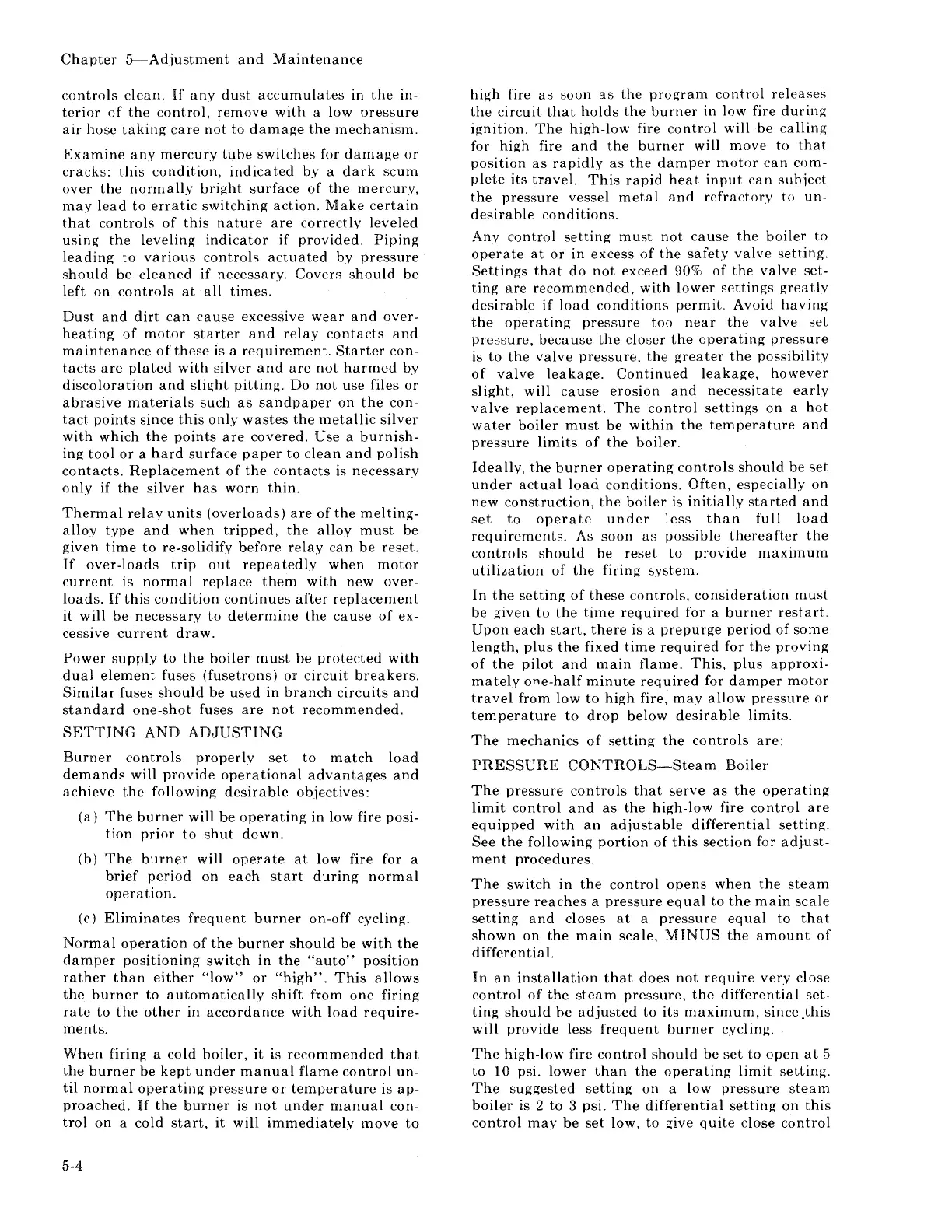

5--Adjustment
and
Maintenance
controls
clean.
If
any
dust
accumulates
in
the
in-
terior
of
the
control,
remove
with
a low
pressure
air
hose
taking
care
not
to
damage
the
mechanism.
Examine
any
mercury
tube
switches
for
damage
or
cracks:
this
condition,
indicated
by
a
dark
scum
over
the
normally
bright
surface
of
the
mercury,
may
lead
to
erratic
switching
action.
Make
certain
that
controls
of
this
nature
are
correctly
leveled
using
the
leveling
indicator
if
provided.
Piping
leading
to
various
controls
actuated
by
pressure
should
be
cleaned
if
necessary.
Covers
should
be
left
on
controls
at
all
times.
Dust
and
dirt
can
cause
excessive
wear
and
over-
heating
of
motor
starter
and
relay
contacts
and
maintenance
of
these
is a
requirement.
Starter
con-
tacts
are
plated
with
silver
and
are
not
harmed
by
discoloration
and
slight
pitting.
Do
not
use
files
or
abrasive
materials
such
as
sandpaper
on
the
con-
tact
points
since
this
only
wastes
the
metallic
silver
with
which
the
points
are
covered.
Use
a
burnish-
ing
tool
or
a
hard
surface
paper
to
clean
and
polish
contacts.
Replacement
of
the
contacts
is
necessary
only
if
the
silver
has
worn
thin.
Thermal
relay
units
(overloads)
are
of
the
melting-
alloy
type
and
when
tripped,
the
alloy
must
be
given
time
to
re-solidify
before
relay
can
be
reset.
If
over-loads
trip
out
repeatedly
when
motor
current
is
normal
replace
them
with
new
over-
loads.
If
this
condition
continues
after
replacement
it
will
be
necessary
to
determine
the
cause
of
ex-
cessive
current
draw.
Power
supply
to
the
boiler
must
be
protected
with
dual
element
fuses
(fusetrons)
or
circuit
breakers.
Similar
fuses
should
be
used
in
branch
circuits
and
standard
one-shot
fuses
are
not
recommended.
SETTING
AND
ADJUSTING
Burner
controls
properly
set
to
match
load
demands
will
provide
operational
advantages
and
achieve
the
following
desirable
objectives:
(a)
The
burner
will
be
operating
in
low
fire
posi-
tion
prior
to
shut
down.
(b)
The
burner
will
operate
at
low fire for a
brief
period
on
each
start
during
normal
operation.
(c)
Eliminates
frequent
burner
on-off
cycling.
Normal
operation
of
the
burner
should
be
with
the
damper
positioning
switch
in
the
"auto"
position
rather
than
either
"low"
or
"high".
This
allows
the
burner
to
automatically
shift
from
one
firing
rate
to
the
other
in
accordance
with
load
require-
ments.
When
firing
a
cold
boiler,
it
is
recommended
that
the
burner
be
kept
under
manual
flame
control
un-
til
normal
operating
pressure
or
temperature
is
ap-
proached.
If
the
burner
is
not
under
manual
con-
trol
on
a
cold
start,
it
will
immediately
move
to
5-4
high
fire
as
soon
as
the
program
control
releases
the
circuit
that
holds
the
burner
in low fire
during
ignition.
The
high-low
fire
control
will
be
calling
for
high
fire
and
the
burner
will
move
to
that
position
as
rapidly
as
the
damper
motor
can
com-
plete
its
travel.
This
rapid
heat
input
can
subject
the
pressure
vessel
metal
and
refractory
to
un-
desirable
conditions.
Any
control
setting
must
not
cause
the
boiler
to
operate
at
or
in
excess
of
the
safety
valve
setting.
Settings
that
do
not
exceed
90%
of
the
valve
set-
ting
are
recommended,
with
lower
settings
greatly
desirable
if
load
conditions
permit.
Avoid
having
the
operating
pressure
too
near
the
valve
set
pressure,
because
the
closer
the
operating
pressure
is
to
the
valve
pressure,
the
greater
the
possibility
of
valve
leakage.
Continued
leakage,
however
slight,
will
cause
erosion
and
necessitate
early
valve
replacement.
The
control
settings
on
a
hot
water
boiler
must
be
within
the
temperature
and
pressure
limits
of
the
boiler.
Ideally,
the
burner
operating
controls
should
be
set
under
actual
loaci
conditions.
Often,
especially
on
new
construction,
the
boiler
is
initially
started
and
set
to
operate
under
less
than
full
load
requirements.
As
soon
as
possible
thereafter
the
controls
should
be
reset
to
provide
maximum
utilization
of
the
firing
system.
In
the
setting
of
these
controls,
consideration
must
be
given
to
the
time
required
for a
burner
restart.
Upon
each
start,
there
is a
prepurge
period
of
some
length,
plus
the
fixed
time
required
for
the
proving
of
the
pilot
and
main
flame.
This,
plus
approxi-
mately
one-half
minute
required
for
damper
motor
travel
from
low
to
high
fire,
may
allow
pressure
or
temperature
to
drop
below
desirable
limits.
The
mechanics
of
setting
the
controls
are:
PRESSURE
CONTROLS-Steam
Boiler
The
pressure
controls
that
serve
as
the
operating
limit
control
and
as
the
high-low
fire
control
are
equipped
with
an
adjustable
differential
setting.
See
the
following
portion
of
this
section
for
adjust-
ment
procedures.
The
switch
in
the
control
opens
when
the
steam
pressure
reaches
a
pressure
equal
to
the
main
scale
setting
and
closes
at
a
pressure
equal
to
that
shown
on
the
main
scale,
MINUS
the
amount
of
differential.
In
an
installation
that
does
not
require
very
close
control
of
the
steam
pressure,
the
differential
set-
ting
should
be
adjusted
to
its
maximum,
since
_this
will
provide
less
frequent
burner
cycling.
The
high-low
fire
control
should
be
set
to
open
at
5
to
10
psi.
lower
than
the
operating
limit
setting.
The
suggested
setting
on
a
low
pressure
steam
boiler
is 2
to
3
psi.
The
differential
setting
on
this
control
may
be
set
low,
to
give
quite
close
control
