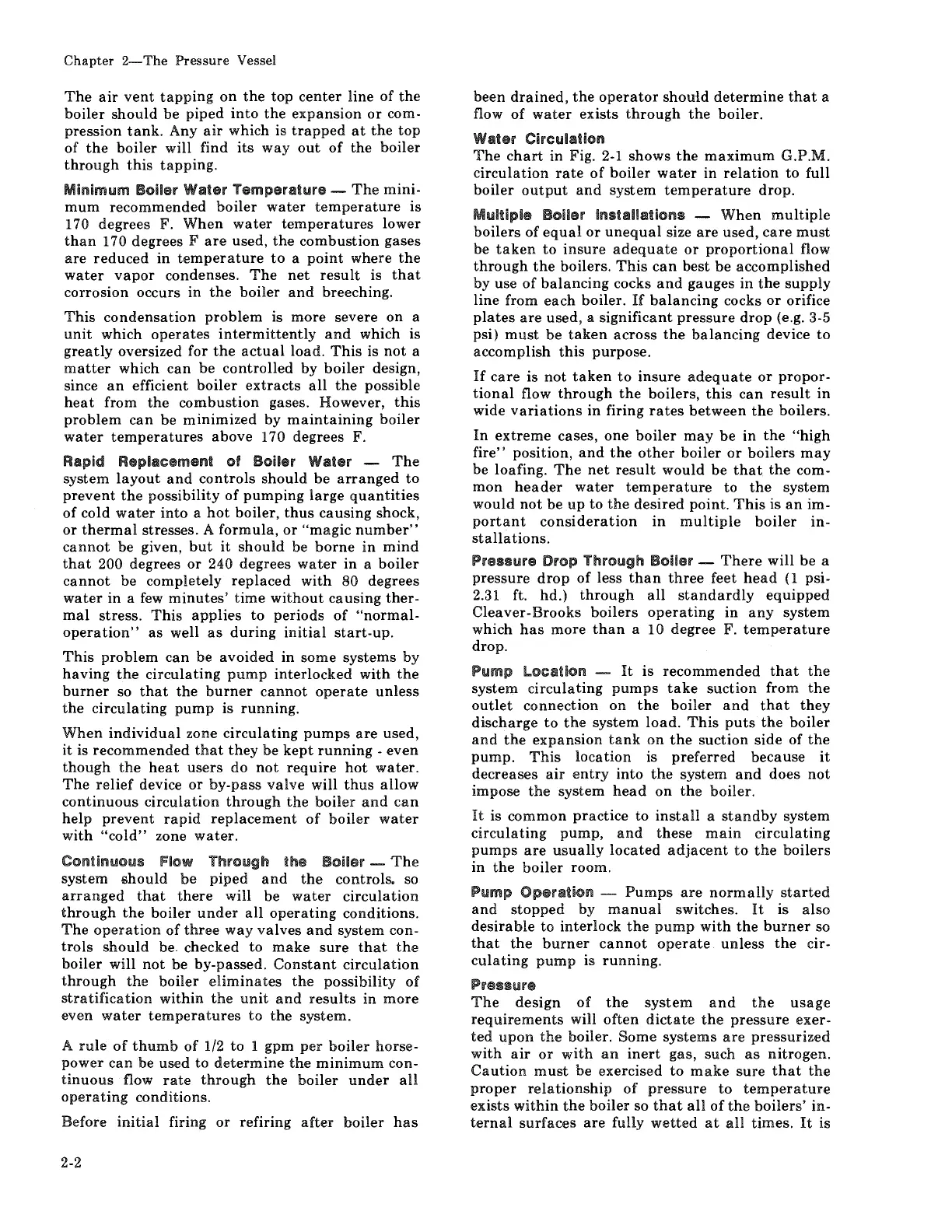

Chapter
2-
The
Pressure
Vessel
The
air
vent
tapping
on
the
top
center
line
of
the
boiler
should
be
piped
into
the
expansion
or
com-
pression
tank.
Any
air
which
is
trapped
at
the
top
of
the
boiler
will
find
its
way
out
of
the
boiler
through
this
tapping.
Minimum
Boiler
Water
Temperature-
The
mini-
mum
recommended
boiler
water
temperature
is
170
degrees
F.
When
water
temperatures
lower
than
170
degrees
F
are
used,
the
combustion
gases
are
reduced
in
temperature
to
a
point
where
the
water
vapor
condenses.
The
net
result
is
that
corrosion
occurs
in
the
boiler
and
breeching.
This
condensation
problem
is
more
severe
on
a
unit
which
operates
intermittently
and
which
is
greatly
oversized
for
the
actual
load.
This
is
not
a
matter
which
can
be
controlled
by
boiler
design,
since
an
efficient
boiler
extracts
all
the
possible
heat
from
the
combustion
gases.
However,
this
problem
can
be
minimized
by
maintaining
boiler
water
temperatures
above
170
degrees
F.
Rapid Replacement
of
Boiler
Water
-
The
system
layout
and
controls
should
be
arranged
to
prevent
the
possibility
of
pumping
large
quantities
of
cold
water
into
a
hot
boiler,
thus
causing
shock,
or
thermal
stresses.
A
formula,
or
"magic
number"
cannot
be
given,
but
it
should
be
borne
in
mind
that
200
degrees
or
240
degrees
water
in
a
boiler
cannot
be
completely
replaced
with
80
degrees
water
in
a few
minutes'
time
without
causing
ther-
mal
stress.
This
applies
to
periods
of
"normal-
operation"
as
well
as
during
initial
start-up.
This
problem
can
be
avoided
in
some
systems
by
having
the
circulating
pump
interlocked
with
the
burner
so
that
the
burner
cannot
operate
unless
the
circulating
pump
is
running.
When
individual
zone
circulating
pumps
are
used,
it
is
recommended
that
they
be
kept
running
-
even
though
the
heat
users
do
not
require
hot
water.
The
relief
device
or
by-pass
valve
will
thus
allow
continuous
circulation
through
the
boiler
and
can
help
prevent
rapid
replacement
of
boiler
water
with
"cold"
zone
water.
Contiru.1ous Flow
Through
the
Boiler
-
The
system
should
be
piped
and
the
controls.
so
arranged
that
there
will
be
water
circulation
through
the
boiler
under
all
operating
conditions.
The
operation
of
three
way
valves
and
system
con-
trols
should
be.
checked
to
make
sure
that
the
boiler
will
not
be
by-passed.
Constant
circulation
through
the
boiler
eliminates
the
possibility
of
stratification
within
the
unit
and
results
m
more
even
water
temperatures
to
the
system.
A
rule
of
thumb
of
1/2
to
1
gpm
per
boiler
horse-
power
can
be
used
to
determine
the
minimum
con-
tinuous
flow
rate
through
the
boiler
under
an
operating
conditions.
Before
initial
firing
or
refiring
after
boiler
has
2-2
been
drained,
the
operator
should
determine
that
a
flow
of
water
exists
through
the
boiler.
Water
Circulation
The
chart
in
Fig. 2-1
shows
the
maximum
G.P.M.
circulation
rate
of
boiler
water
in
relation
to
full
boiler
output
and
system
temperature
drop.
Multiple
Boiler
Installations
-
When
multiple
boilers
of
equal
or
unequal
size
are
used,
care
must
be
taken
to
insure
adequate
or
proportional
flow
through
the
boilers.
This
can
best
be
accomplished
by
use
of
balancing
cocks
and
gauges
in
the
supply
line
from
each
boiler.
If
balancing
cocks
or
orifice
plates
are
used,
a
significant
pressure
drop
(e.g. 3-5
psi)
must
be
taken
across
the
balancing
device
to
accomplish
this
purpose.
If
care
is
not
taken
to
insure
adequate
or
propor-
tional
flow
through
the
boilers,
this
can
result
in
wide
variations
in
firing
rates
between
the
boilers.
In
extreme
cases,
one
boiler
may
be
in
the
"high
fire''
position,
and
the
other
boiler
or
boilers
may
be
loafing.
The
net
result
would
be
that
the
com-
mon
header
water
temperature
to
the
system
would
not
be
up
to
the
desired
point.
This
is
an
im-
portant
consideration
in
multiple
boiler
in-
stallations.
Pressure Drop
Through
Boiler
-
There
will
be
a
pressure
drop
of
less
than
three
feet
head
( 1 psi-
2.31 ft.
hd.)
through
all
standardly
equipped
Cleaver-Brooks
boilers
operating
in
any
system
which
has
more
than
a
10
degree
F.
temperature
drop.
Pump
location
-
It
is
recommended
that
the
system
circulating
pumps
take
suction
from
the
outlet
connection
on
the
boiler
and
that
they
discharge
to
the
system
load.
This
puts
the
boiler
and
the
expansion
tank
on
the
suction
side
of
the
pump.
This
location
is
preferred
because
it
decreases
air
entry
into
the
system
and
does
not
impose
the
system
head
on
the
boiler.
It
is
common
practice
to
install
a
standby
system
circulating
pump,
and
these
main
circulating
pumps
are
usually
located
adjacent
to
the
boilers
in
the
boiler
room.
Pump
Operation
-
Pumps
are
normally
started
and
stopped
by
manual
switches.
It
is
also
desirable
to
interlock
the
pump
with
the
burner
so
that
the
burner
cannot
operate
unless
the
cir-
culating
pump
is
running.
Pressure
The
design
of
the
system
and
the
usage
requirements
will
often
dictate
the
pressure
exer-
ted
upon
the
boiler.
Some
systems
are
pressurized
with
air
or
with
an
inert
gas,
such
as
nitrogen.
Caution
must
be
exercised
to
make
sure
that
the
proper
relationship
of
pressure
to
temperature
exists
within
the
boiler
so
that
all
of
the
boilers'
in-
ternal
surfaces
are
fully
wetted
at
all
times.
It
is
