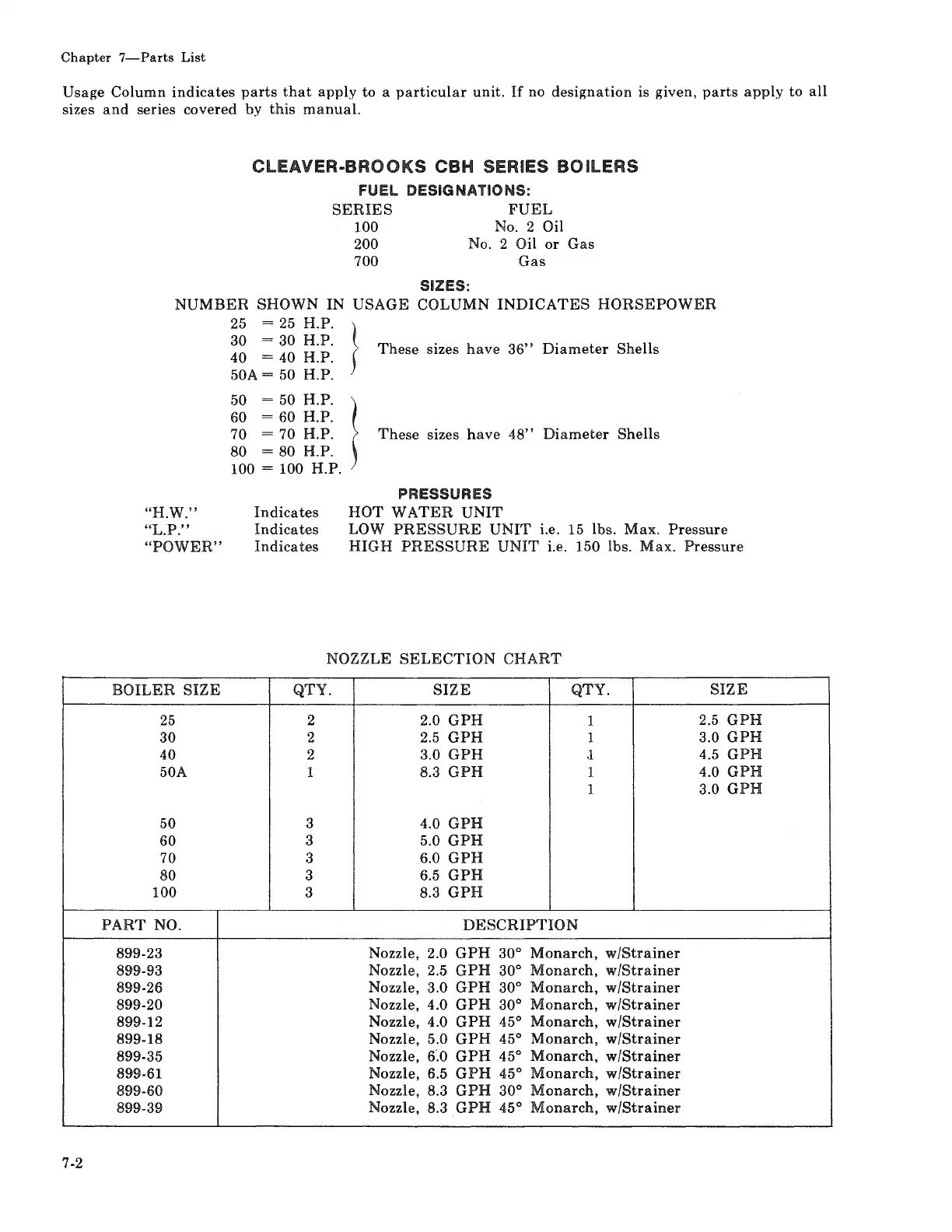

Chapter 7-Parts List
Usage Column indicates parts that apply to a particular unit. If no designation is given, parts apply to all
sizes and series covered by this manual.
7-2
CLEAVER-BROOKS CBH SERIES BOILERS
FUEl DESIGNATIONS:
SERIES FUEL
100 No. 2 Oil
200
No. 2 Oil or Gas
700 Gas
SIZES:
NUMBER SHOWN IN USAGE COLUMN INDICATES HORSEPOWER
25 = 25 H.P. )
30
=
30
H.P. { These sizes have 36" Diameter Shells
40 = 40 H.P. )
"H.W."
"L.P.''
"POWER''
BOILER SIZE
25
30
40
50
A
50
60
70
80
100
PART NO.
899-23
899-93
899-26
899-20
899-12
899-18
899-35
899-61
899-60
899-39
50A =50 H.P.
50 =50 H.P. t
60 = 60 H.P.
70 = 70 H.P.
80 = 80 H.P.
100 = 100 H.P.
These sizes have 48" Diameter Shells
PRESSURES
HOT WATER UNIT Indicates
Indicates
Indicates
LOW PRESSURE UNIT i.e. 15 lbs. Max. Pressure
HIGH PRESSURE UNIT i.e. 150 lbs. Max. Pressure
NOZZLE SELECTION CHART
QTY.
SIZE
QTY. SIZE
2 2.0 GPH
1
2.5
GPH
2 2.5 GPH 1
3.0 GPH
2 3.0 GPH
.1
4.5 GPH
1 8.3 GPH 1
4.0 GPH
1
3.0 GPH
3 4.0 GPH
3 5.0 GPH
3
6.0 GPH
3
6.5 GPH
3 8.3 GPH
DESCRIPTION
Nozzle, 2.0 GPH 30° Monarch, w/Strainer
Nozzle, 2.5 GPH 30° Monarch, w/Strainer
Nozzle, 3.0 GPH 30° Monarch, w/Strainer
Nozzle, 4.0 GPH 30° Monarch, w/Strainer
Nozzle, 4.0 G PH
45°
Monarch, w/Strainer
Nozzle, 5.0 G PH 45°
Monarch, w/Strainer
Nozzle, 6-.0 GPH 45°
Monarch, w/Strainer
Nozzle, 6.5 GPH 45° Monarch, w/Strainer
Nozzle, 8.3 G PH 30° Monarch, w/Strainer
Nozzle, 8.3 G PH 45° Monarch, w/Strainer
