750-368
CBEX Elite 100-1200 HP
9-21

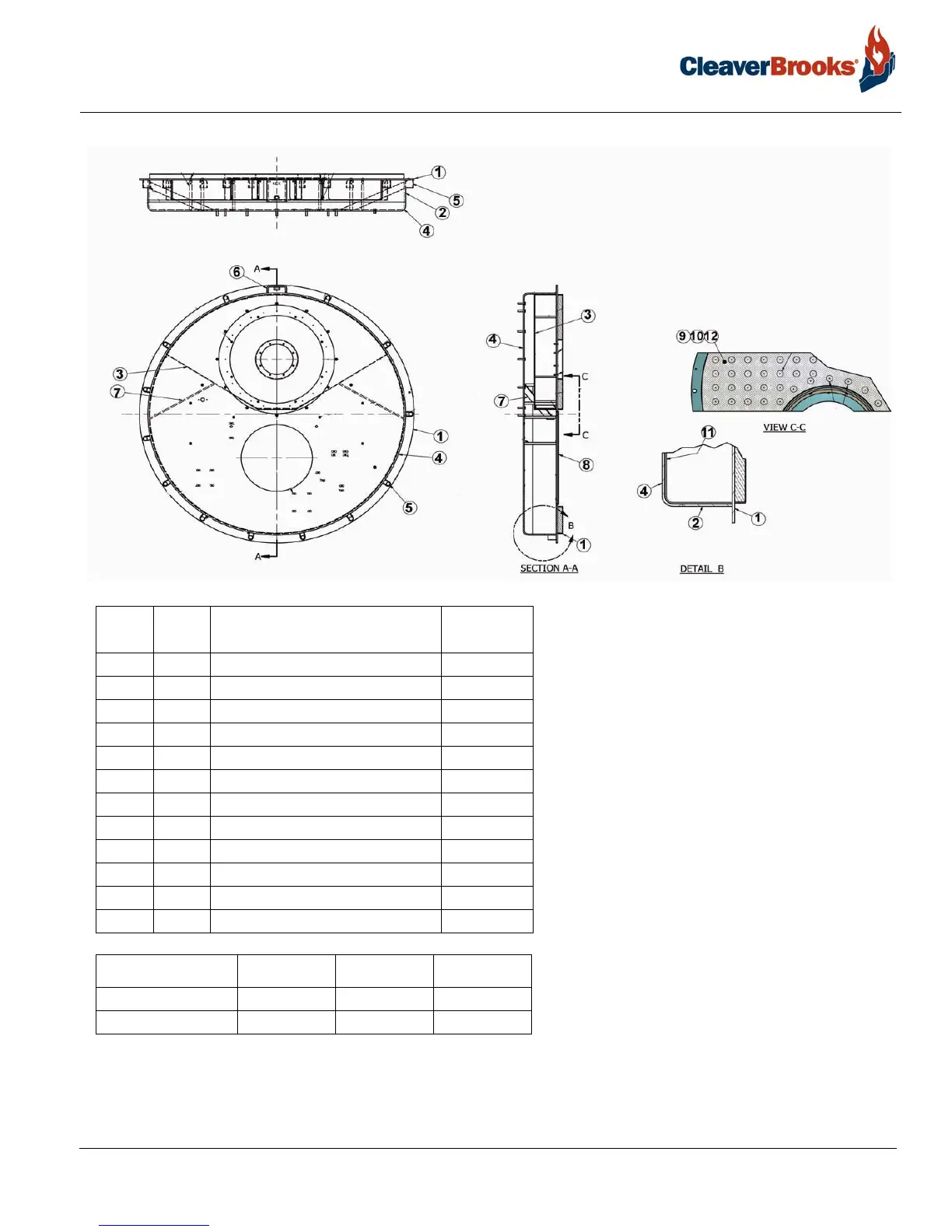

— Front Head Assembly
9.16.3 — 78”
Item Qty Description
78”
Part #
1 1 Inner Door Plate Assembly See Table
2 1 Front Head Ring 080-01460
3 1 Air Duct Assembly 039-01730
4 1 Front Head 132-02684
5 13 Lug 103-00107
6 1 Davit Support 085-03125
7 2 Flat Bar 971-00078
8 1 Head Plate Gasket 032-00898
9 1 Blanket Insulation 872-01084
10 1 Screen 930-00135
11 1 Interior Insulation See Table
12 180oz Coating Cement Rigidizer 872-00443
Assembly No. IFGR Plate Item #1 Item #11
132-02683 (RH) 30 ppm 132-02682 465-01680
132-02740 (RH) 60 ppm 132-02682 N/A
To Next Page
