Parts
9-22
750-368
CBEX Elite 100-1200 HP
9.16.4 — 85” & 92”

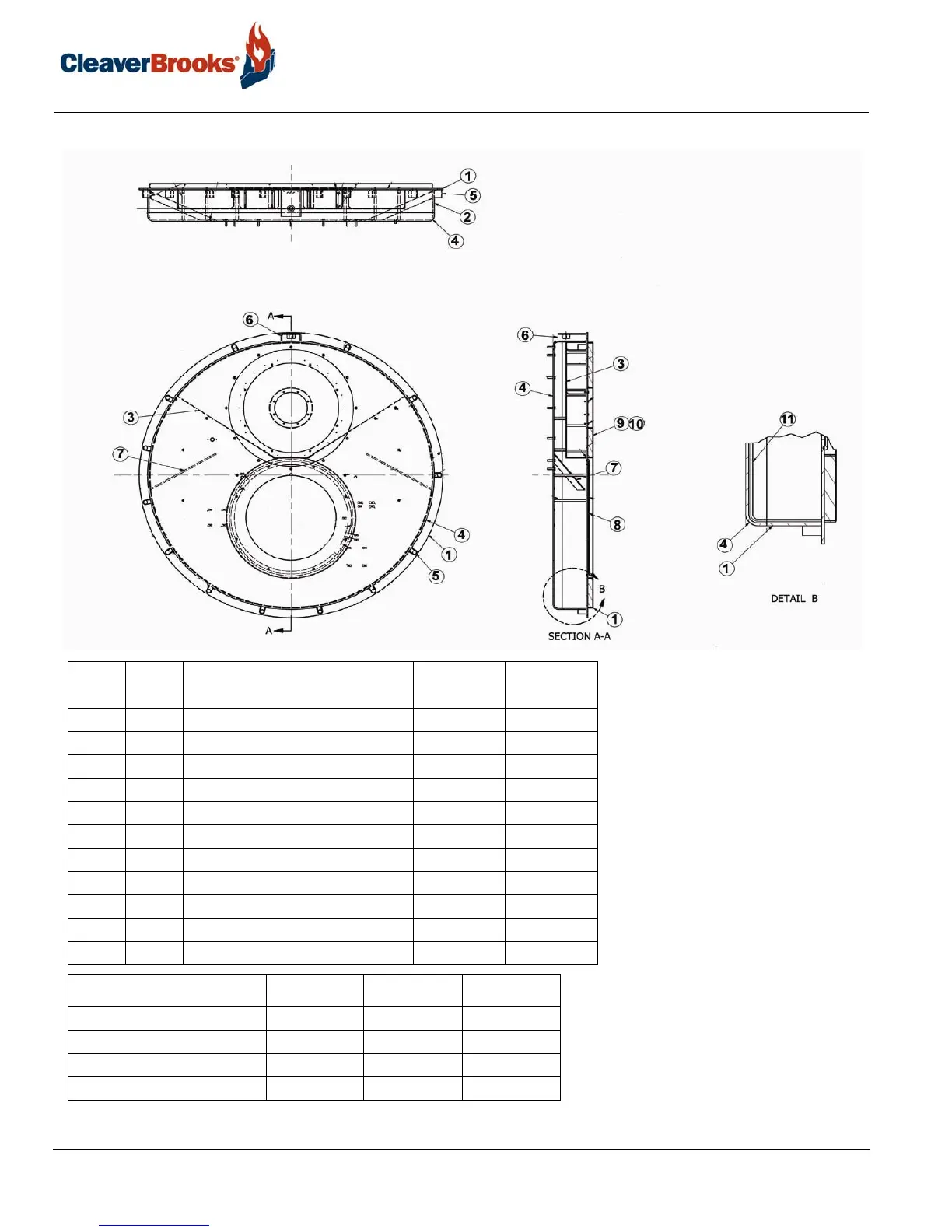

Item Qty Description
85”
Part #
92”
Part #
1 1 Inner Door Plate Assembly See Table See Table
2 1 Front Head Ring 080-00935 080-01330
3 1 Air Duct Assembly 039-01727 039-01732
4 1 Front Head 132-02677 132-02696
5 13 Lug 103-00107 103-00107
6 1 Davit Support 085-03119 085-03119
7 2 Flat Bar 971-00078 971-00078
8 1 Head Plate Gasket 032-00993 032-00993
9 1 Blanket Insulation 872-01084 872-01084
10 1 Screen 930-00135 930-00135
11 1 Interior Insulation See Table See Table
Assembly No. IFGR Plate Item #1 Item #11
85” 132-02675 (RH) 30 ppm 132-02674 465-02366
85” 132-02736 (RH) 60 ppm 132-02674 N/A
92” 132-02694 (RH) 30 ppm 132-02695 465-02655
92” 132-02744 (RH) 60 ppm 132-02695 N/A
To Next Page
