Programming
3
Special
Function
Allows the tool functionality to be automatically controlled based on the Part ID.
• Disabled: The Part ID characters have no control over the tool functionality.
Note: Setting this option to Disabled does NOT cause Configure Data table entries
to be lost.
• Enabled: The Position/Value pairs on the Configure Data screen may be used to
control the tool functionality. The user may enter Position/Character pairs with asso-
ciated functions to control the tool based on the part ID.
- <Configure>
If you choose Enabled at the drop-down menu Special Function the button
<Configure> appears. A user can set-up barcode masks.

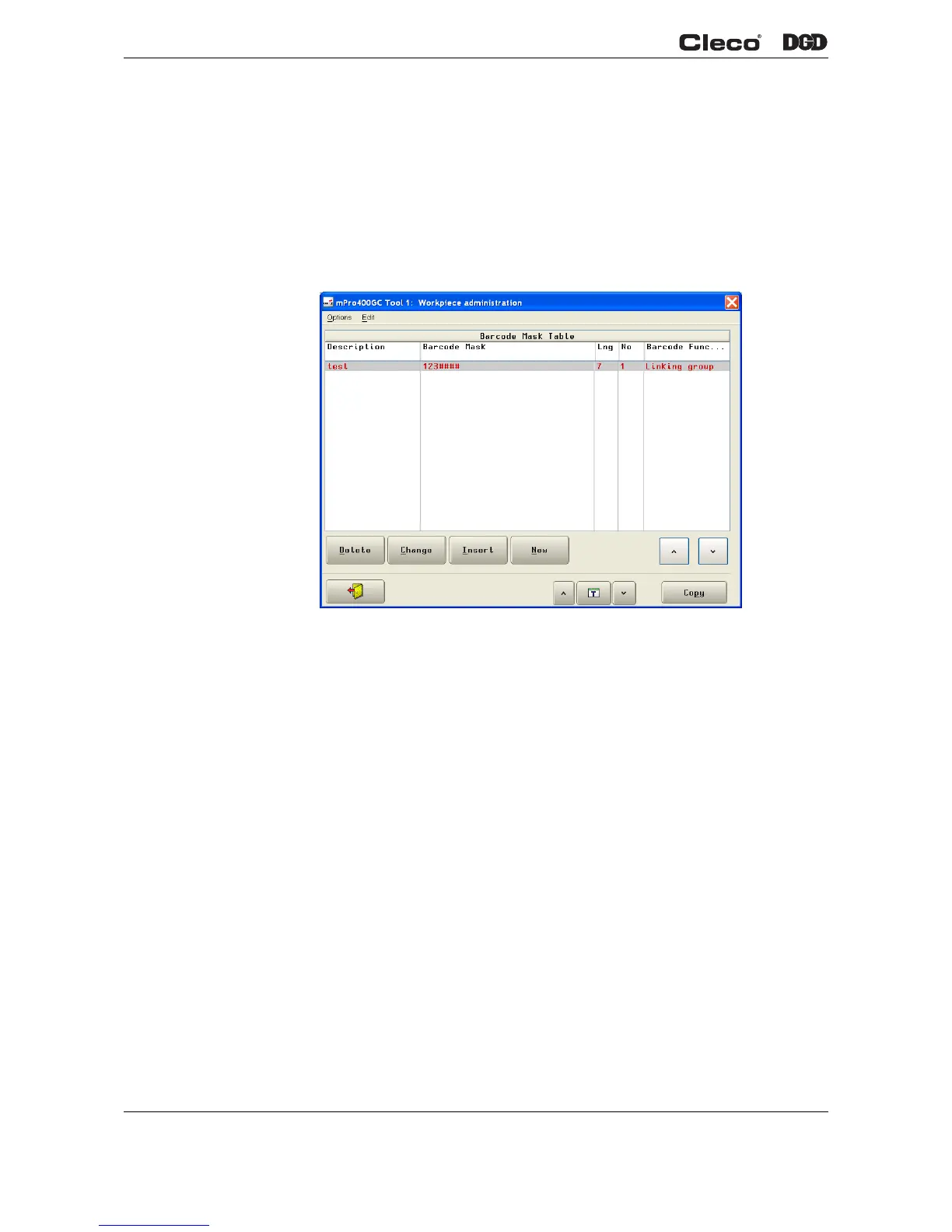

<New> Insert a new barcode mask.
Workpiece Description - An identifier for the selected mask.
Barcode Mask - The mask from which we wish to select the data
function. Alphanumeric characters are accepted, "#' is treated as don't
cares. Comparing the line of the barcode table with the read in bar-
code, the passages marked by "#" are excluded.
Barcode Function - Used to select what happens when a barcode
matching mask is scanned.
Use Application X (1-99)- use program X when barcode is
scanned. Use Linking Group X (1 - 32)- use tightening group
X when barcode is scanned.
Tool Enable - enable the selected tool when barcode is scanned.
Tool Disable - disable the selected tool when barcode is scanned
<Insert> Insert a new mask above the previously entered mask.
<Change> Edit a mask.
<Delete> Removes a mask.
<Copy> Copies data of the currently set tool group to the requested tool group.
