Clevo P151SM-A - Disassembly - Optical Device Removal (contd.); Optical Device Removal Steps

Disassembly
2 - 12 Removing the Optical (CD/DVD) Device
2.Disassembly
6. Carefully pry the bezel off the optical device at point (Figure 8d).
7. Separate the bezel and the optical device.
8. Reverse the process to attach the front bezel with the new optical device at point (
Figure 8f).
9. Insert the new device and carefully slide it into the computer (the device only fits one way. DO NOT FORCE IT; The
screw holes should line up).
10. Replace the component bay cover and tighten the screws.
11. Restart the computer to allow it to automatically detect the new device.
8
7
8
8
9

8. Bezel Cover
•1 Screw
g.
8
e.
f.
7
8
9

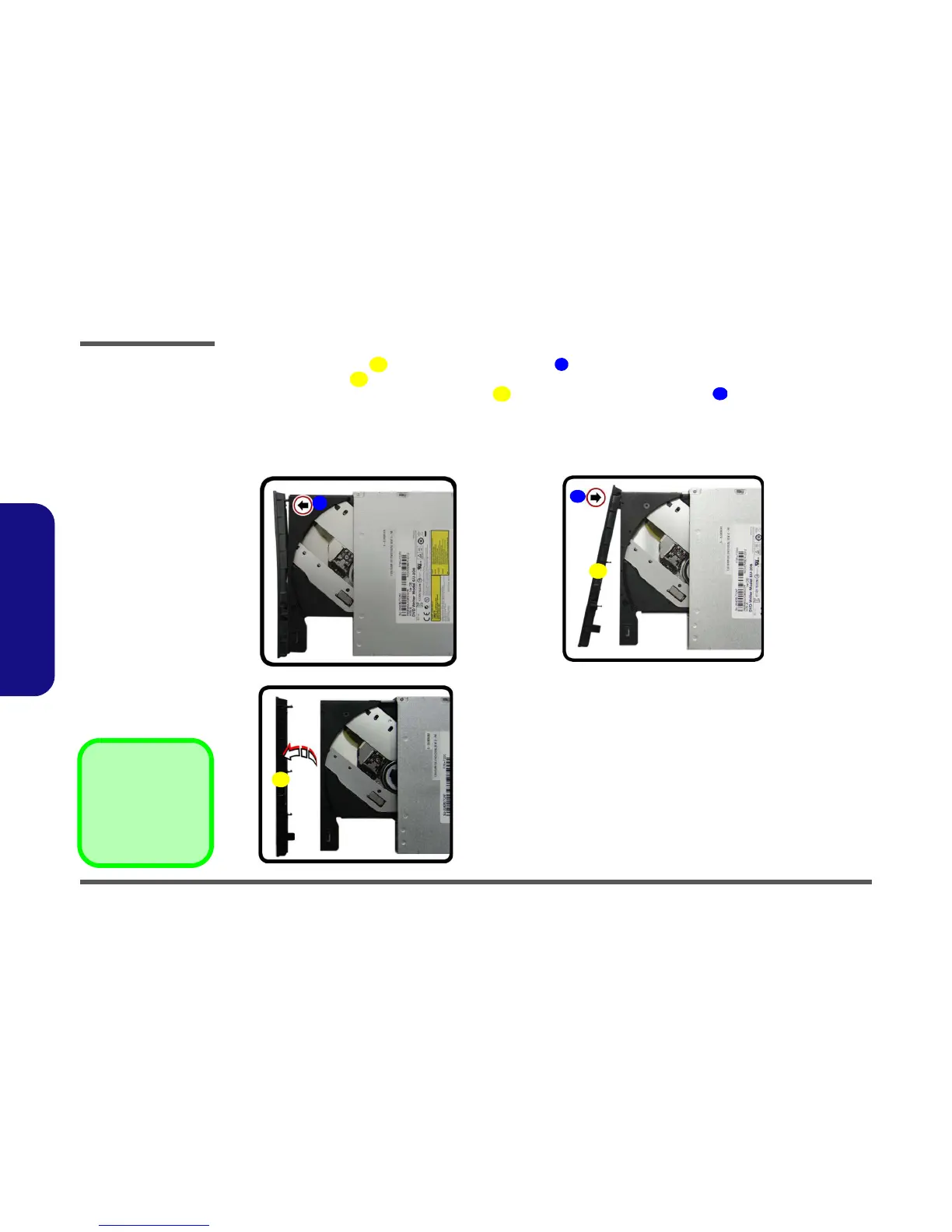

Figure 8
Optical Device
Removal (cont’d.)
e. Pry the bezel off the opti-
cal device.
f. Separate the bezel and
optical device
g. Install the front bezel.
