Disassembly
Removing the Hard Disk from the Secondary HDD Bay 2 - 13
2.Disassembly
Removing the Hard Disk from the Secondary HDD Bay
Note that the secondary hard disk (if installed) is located under the optical device bay (CD/DVD).
1. Turn off the computer, and turn it over, remove the battery (
page 2 - 5) and optical device (page 2 - 11).
2. Remove the screw at point (
Figure 9c), and use a screwdriver to carefully push out the secondary HDD module
at point (
Figure 9a and Figure 9b).
3. When the module is removed turn it over to access the rear. Remove screws - from the secondary HDD
module assembly(
Figure 9c).
4. Remove the hard disk from the caddy module (
Figure 9d).
5. Reverse the process to install a new hard disk (do not forget to replace all the screws and covers).
8. HDD
9. Caddy Module
•5 Screws

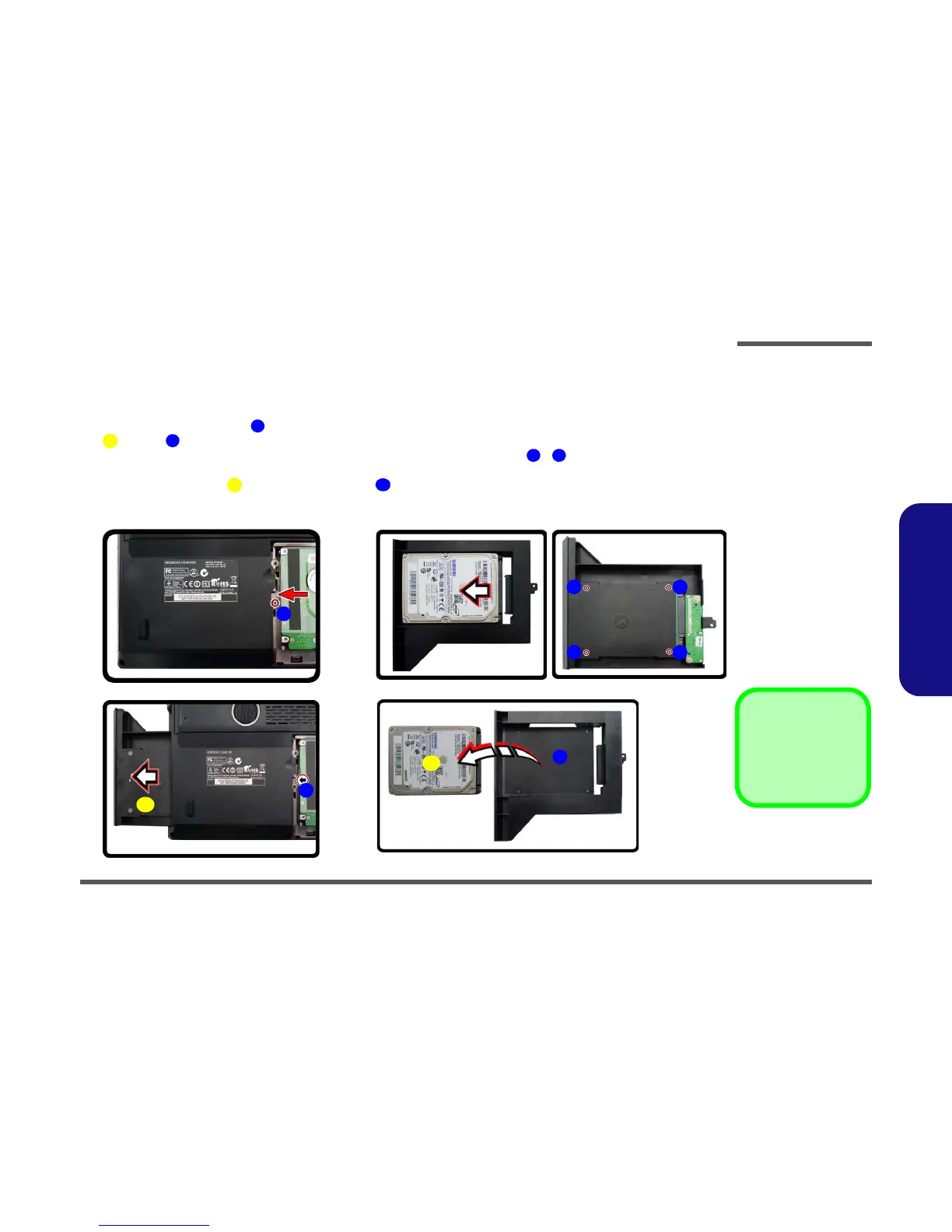

Figure 9
Secondary HDD
Assembly Removal
a. Remove the screws.
b. Use a screwdriver to
carefully push the HDD
module out.
b. Remove the screws.
c. Lift the secondary HDD
assembly up and out of
the caddy module.
1
6
3
2
4
7
6
8
9
a. c.
b.
9
1
2
4
8
3
d.
5
7 6
