Removing the Optical (CD/DVD) Device
1. Turn off the computer, and remove the battery (
page 2 - 5).
2. Locate the hard disk bay cover and remove screws & (
Figure 7a).
3. Remove the hard disk bay cover (
Figure 7b).
4. Remove the screw at point (
Figure 7c), and use a screwdriver to carefully push out the optical device at
point (
Figure 7d).
5. Reverse the process to install any new optical (CD/DVD) device.

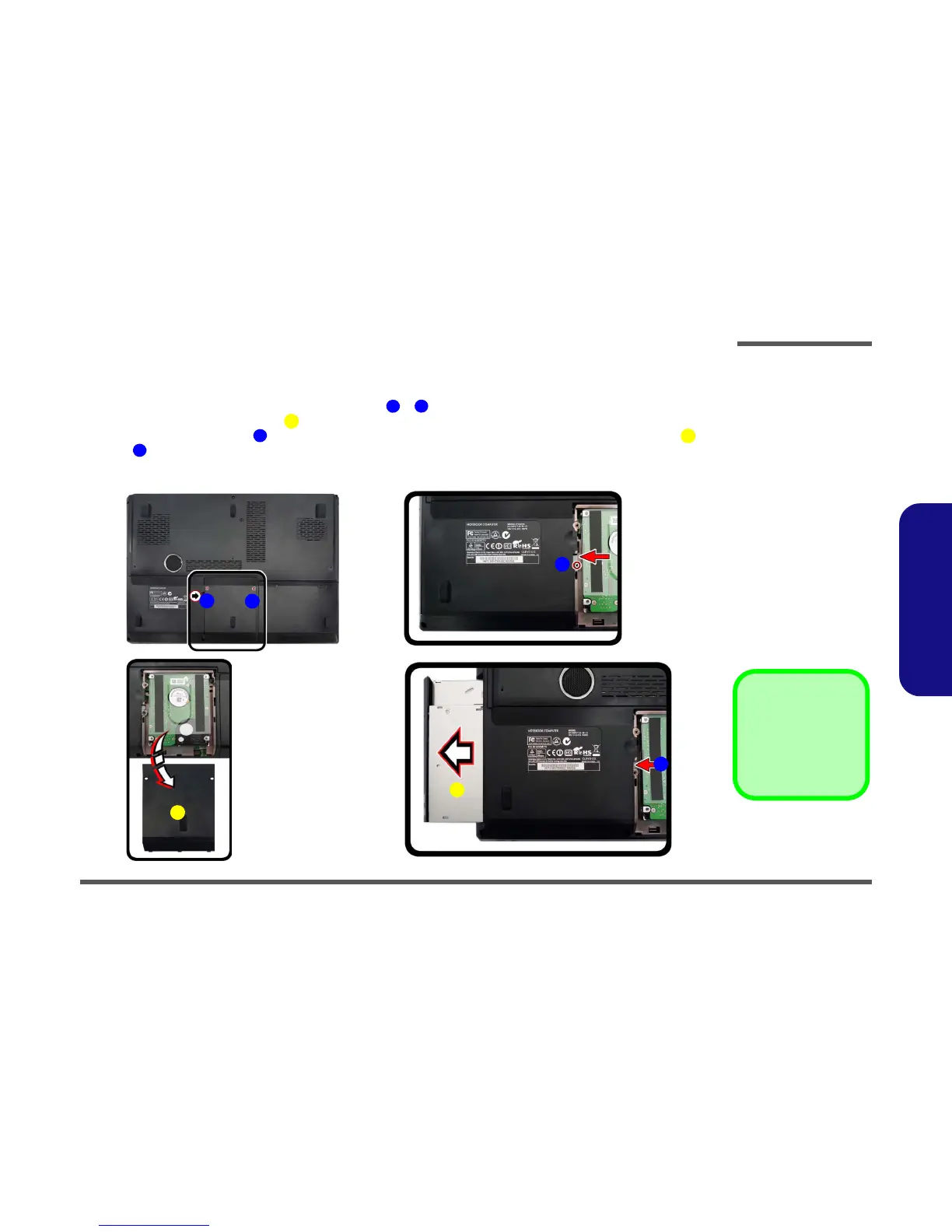

Figure 7
Optical Device
Removal
a. Locate the hard disk bay
cover and remove the
screws.
b. Remove the hard disk
bay cover.
c. Remove the screw.
d. Use a screwdriver to
carefully push the optical
device out.
1
2
6
3
4
6
5
6

3. HDD Bay Cover
5. Optical Device
•3 Screws
a.
b.
3
c.
d.
1
2
6
4
5
