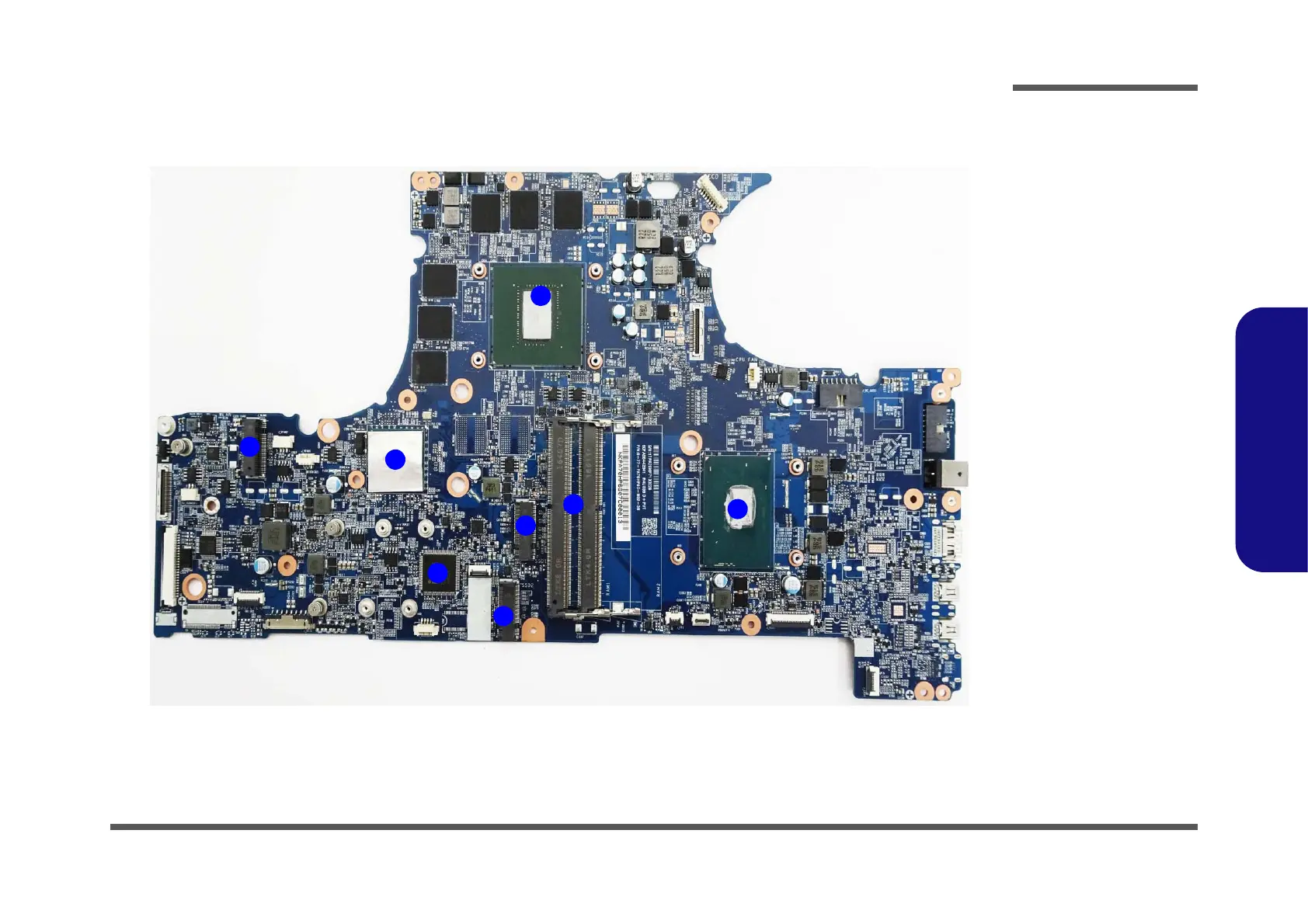

Figure 8
Mainboard Bottom
Key Parts
1. Mini-Card
Connector (M.2
SSD Module)
2. Mini-Card
Connector (M.2
SSD Module)
3. KBC-ITE IT8587
4. Mini-Card
Connector (WLAN
Module)
5. PCH
6. GPU-GTX1070
7. Memory Slots
DDR4 SO-DIMM
8. CPU
Introduction
Mainboard Overview - Bottom (Key Parts) 1 - 9
1.Introduction
Mainboard Overview - Bottom (Key Parts)
