Disassembly
2 - 16 Removing the CCD
2.Disassembly
Removing the CCD
1. Turn off the computer, turn it over to remove the keyboard (page 2 - 5) and battery (page 2 - 6).
2. Lay the computer down on a flat surface with the top case up forming a 120 degree angle. Carefully remove the
mylar covers - and screws - .
3. Run your fingers around the inner frame of the LCD panel to lift it up at points - as indicated by the arrows,
run your fingers again around the inner frame at point to lift from one corner to the other as indicated by the
arrows, and then lift up the outer frame at point as indicated by the arrows (Figure 11e).
4. Remove the LCD front cover (Figure 11b).
1
2
3
4
5
6
7
8
5
b.
a.
9
8
2
1
7
5
6
4
3
9. LCD Front Cover
•2 Screws

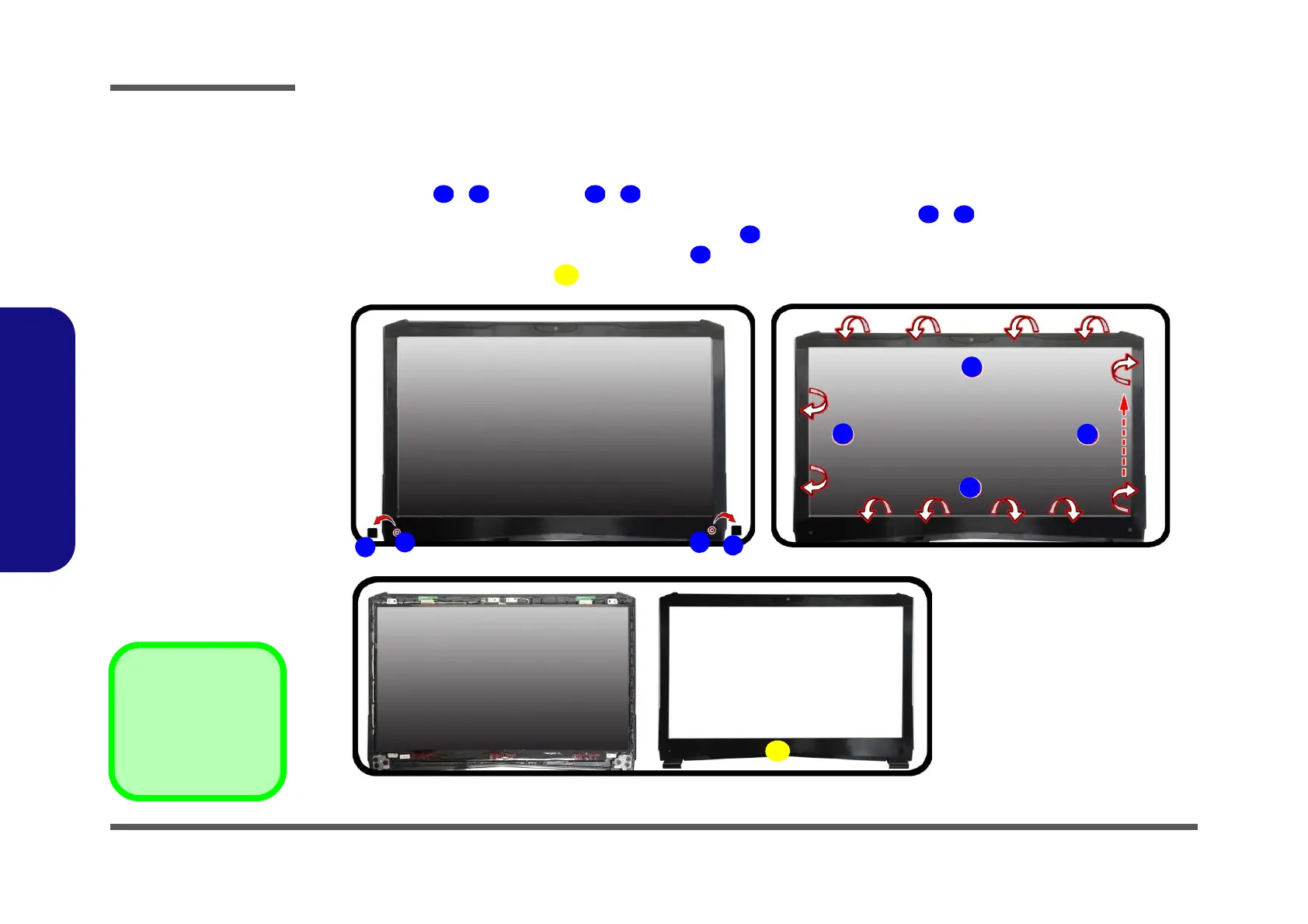

Figure 11
CCD Removal
a. Remove rubber and
screws and then careful-
ly release the inner
frame of the LCD panel
at the points indicated by
the arrows.
b. Remove the LCD front
cover.
