Clevo PA71HS User Manual

Disassembly
2 - 14 Removing the Wireless LAN Module
2.Disassembly
Removing the Wireless LAN Module
1. Turn off the computer, turn it over, remove the keyboard (page 2 - 5) and battery (page 2 - 6).
2. The Wireless LAN module will be visible at point on the mainboard (Figure 10a).
3. Carefully disconnect the cables & , and then remove the screw
(Figure 10b)
4. The Wireless LAN module (Figure 10c) will pop-up, and you can remove it from the computer.
1
2
3
4
5
b.
c.
a.
5
1
5
2
3
4

5.Wireless LAN Module
•1 Screw

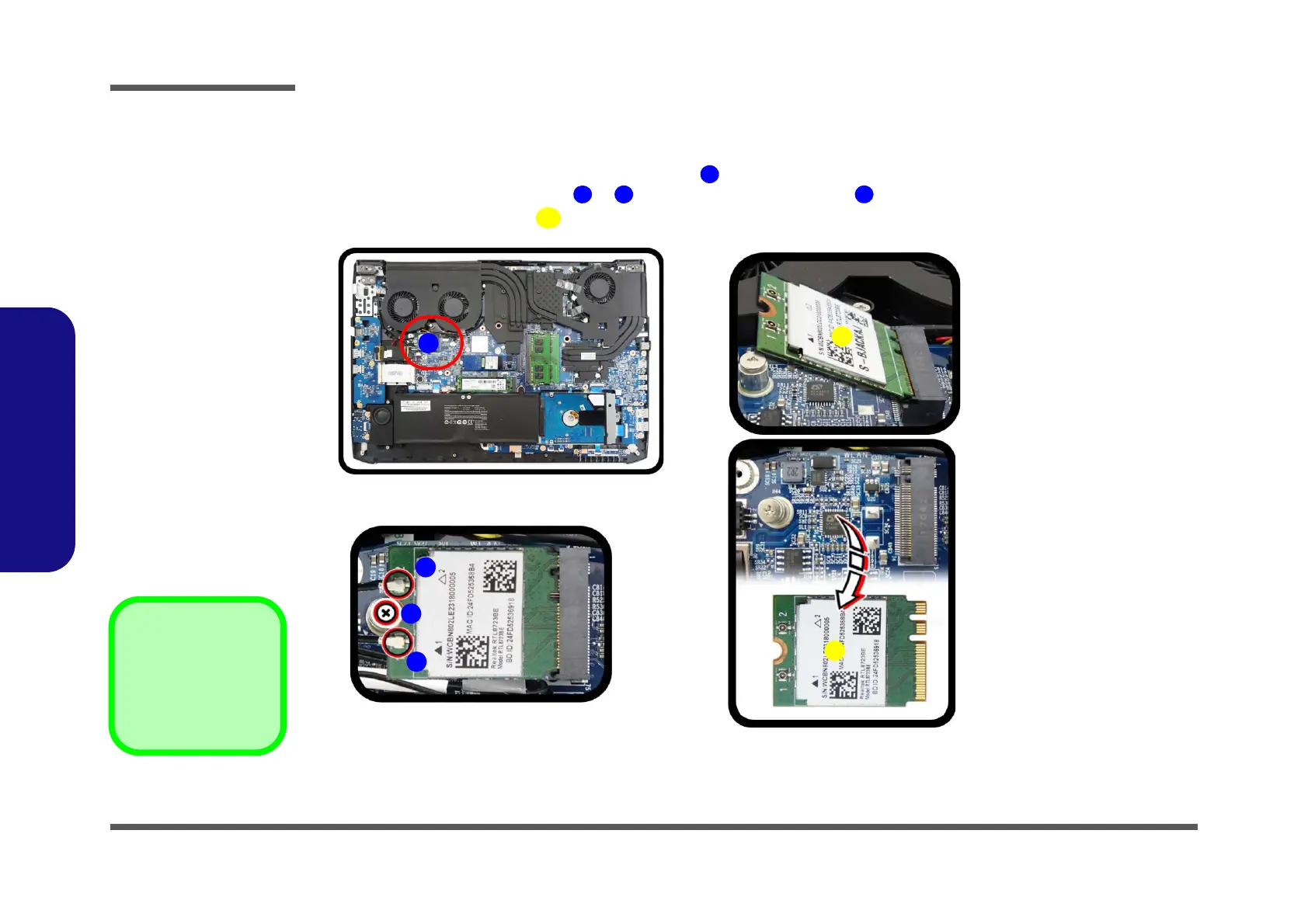

Figure 10
Wireless LAN
Module Removal
a. Locate the WLAN.
b. Disconnect the cables
and remove the screw.
c. The WLAN module will
pop up.
Note: Make sure you
reconnect the antenna
cable to the “1 + 2”
socket (Figure 10b).

Clevo PA71HS Specifications

General

Brand	Clevo
Model	PA71HS
Category	Laptop
Language	English
