Clevo PA71HS

Disassembly
Removing the M.2 SSD Module 2 - 13
2.Disassembly
M.2 SSD-2 Removal Procedure
1. Turn off the computer, turn it over, remove the keyboard (page 2 - 5) and battery (page 2 - 6).

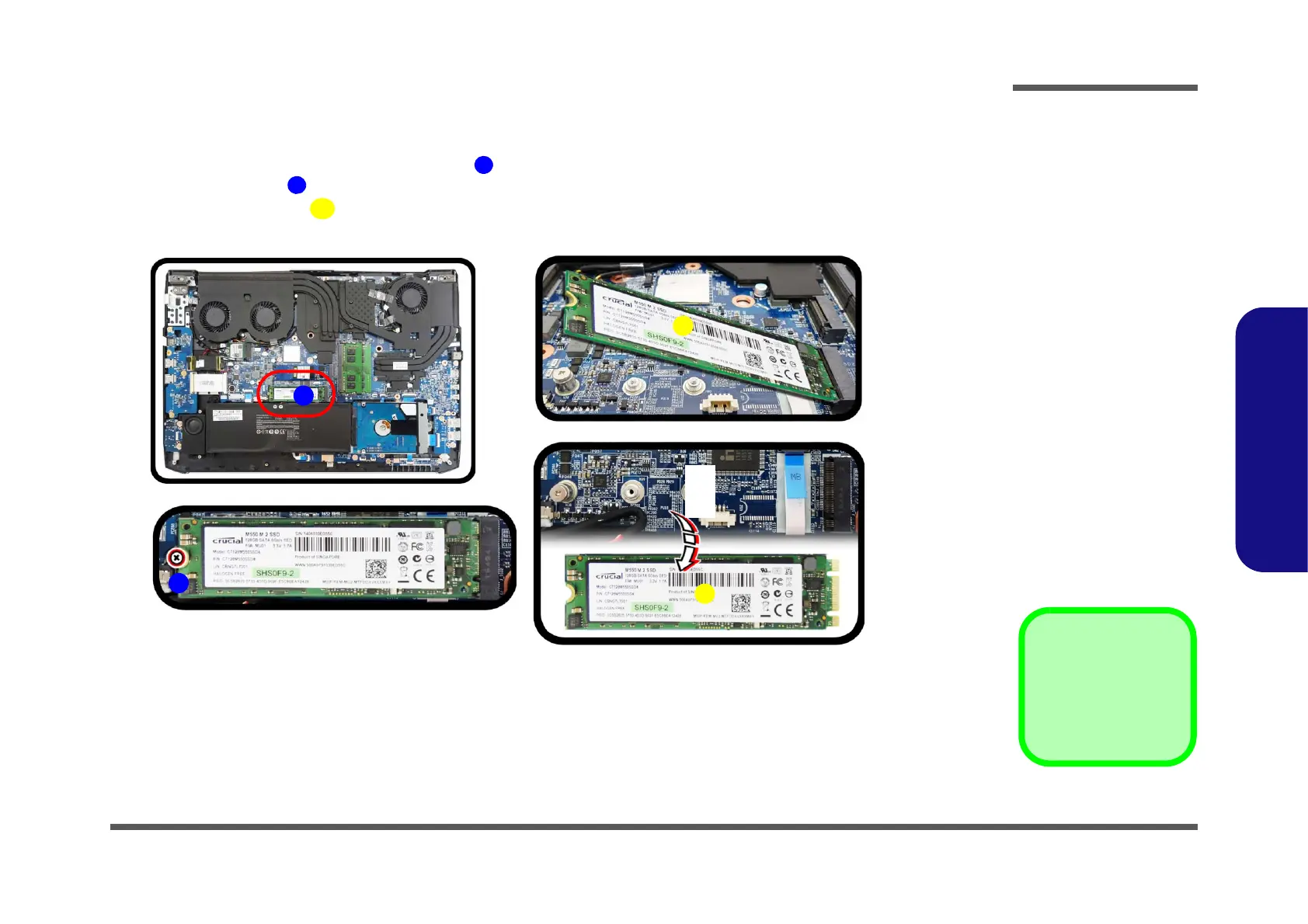

2. The M.2 SSD module will be visible at point on the mainboard (Figure 7a).
3. Remove the screw
(Figure 7b).
4. The M.2 SSD module (Figure 7c) will pop-up, and you can remove it from the computer.
5. Reverse the process to install a new module (do not forget to replace the screws and thermal pad).
1
2
3
b.
c.a.
2
3
1
3

3.M2 SSD Module
•1 Screw
Figure 9
M.2 SSD-2 Module
Removal
a. Locate the M.2 SSD.
b. Remove the screw.
c. The M.2 SSD module
will pop up.
