Disassembly
2 - 18 Removing the LCD Module
2.Disassembly
Removing the LCD Module
1. Turn off the computer, turn it over to remove the keyboard (page 2 - 5), battery (page 2 - 6), HDD (page 2 - 8),
RAM (page 2 - 10), SSD module (page 2 - 11) and WLAN (page 2 - 14).
2. Lay the panel down on a flat surface (protection pad) with the top case open forming a 120 degree angle. Carefully
disconnect the cables - and remove the screws - (Figure 13a).
3. Lift and remove the heatsink from the mainboard (Figure 13b).
1
4
5
18
19
b.
a.
19
5
2
1
6
7
8
4
3
9
11
12
10
15
13 14
16
17
18

19. Heat sink
•14 Screws

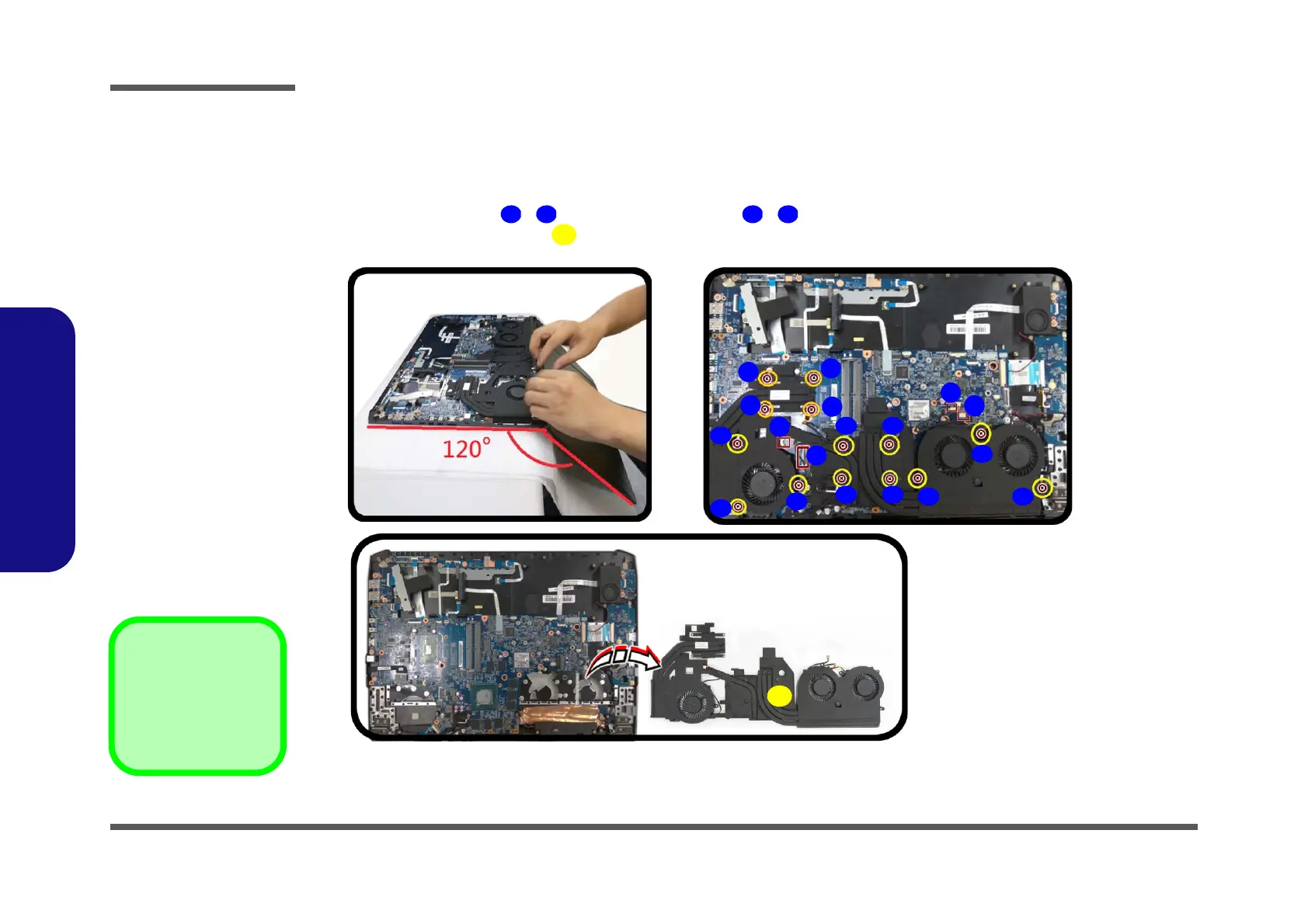

Figure 13
Top Case Removal
a. Remove screws and
heatsink then carefully
release the inner frame
of the LCD panel at the
points indicated by the
arrows.
b. Remove the LCD front
cover.
