Removing the LCD Module 2 - 19
2.Disassembly

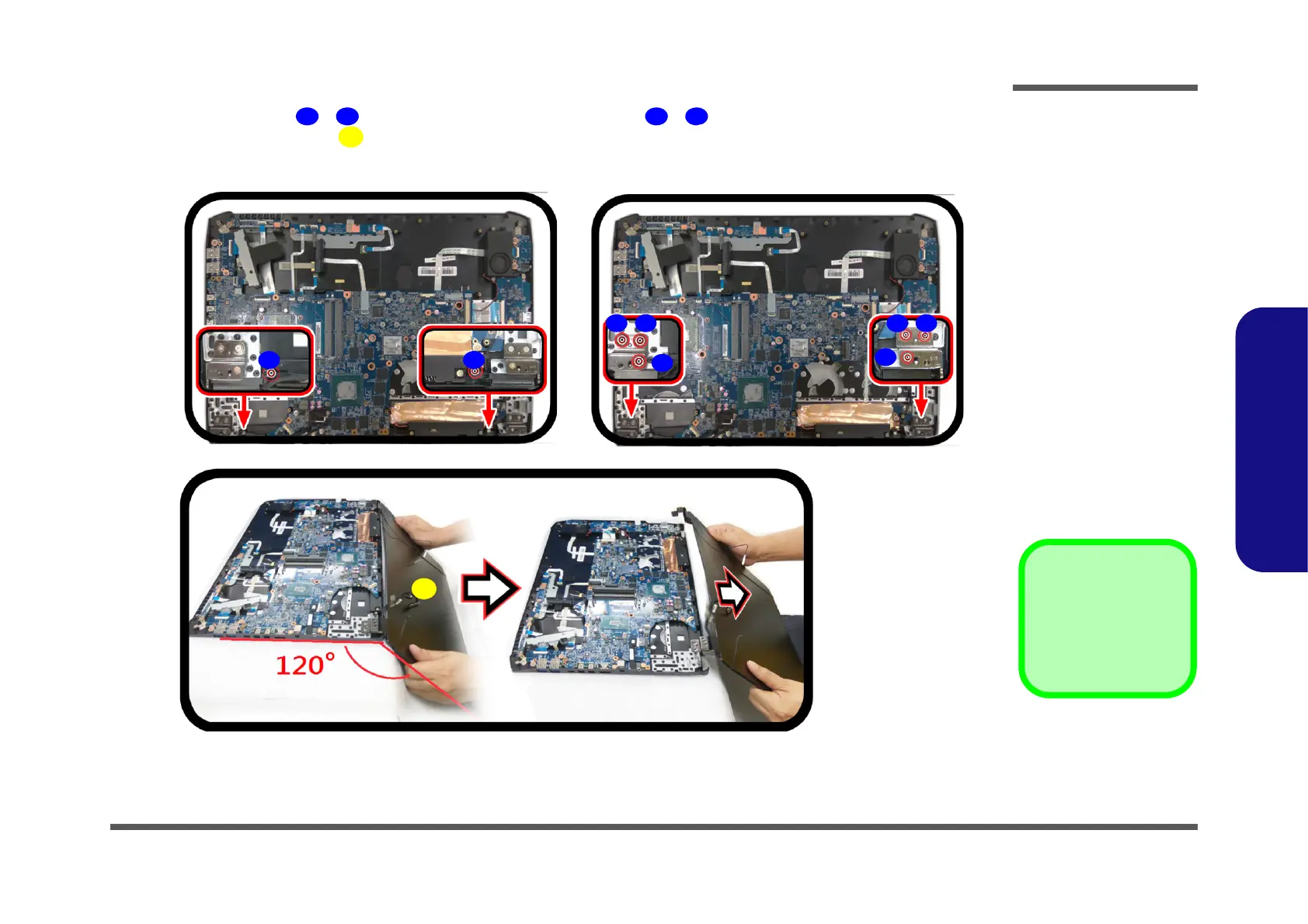

4. Remove the screws - from the hinge cover and the screws - from the hinge (Figure 14c).
5. Remove the LCD module while it is open, still forming a 120 degree angle (Figure 14d).
6. Reverse the process to install a new LCD module.
20
21
22
27
28
d.
c.
28
20 21
22 23 26 27
24
25

28. LCD Module
•8 Screws
Figure 14
Top Case Removal
(cont’d)
c. Remove the screws.
d. Remove the LCD mod-
ule.
