Clevo PA71HS

Disassembly
Removing the Hard Disk Drive 2 - 9
2.Disassembly
4. Slightly slide and pull the hard disk out.
5. Lift the hard disk assembly out of the bay (Figure 5c).
6. Remove screws - and bracket from the hard disk (Figure 5d).
7. Reverse the process to install a new hard disk (do not forget to replace the screws).
3
4
5
6
7
8
c.
3
4
d.
7
6
5
8

3. HDD Assembly
7. HDD Bracket
8. HDD
•2 Screws
Figure 5

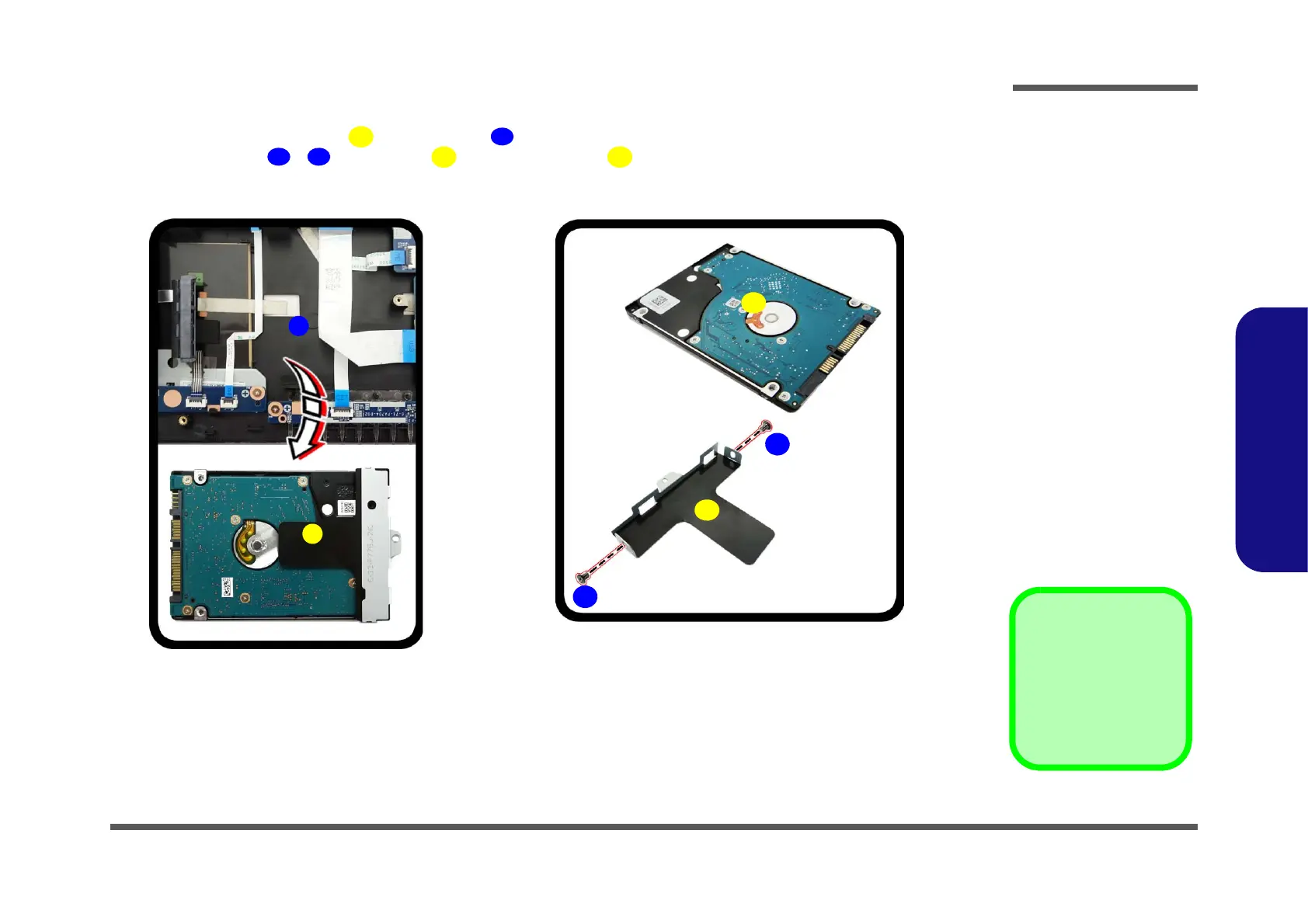

HDD Assembly
Removal (cont’d.)
c. Slide and pull the HDD
assembly out of the bay.
d. Remove the screws and
bracket from the HDD.
