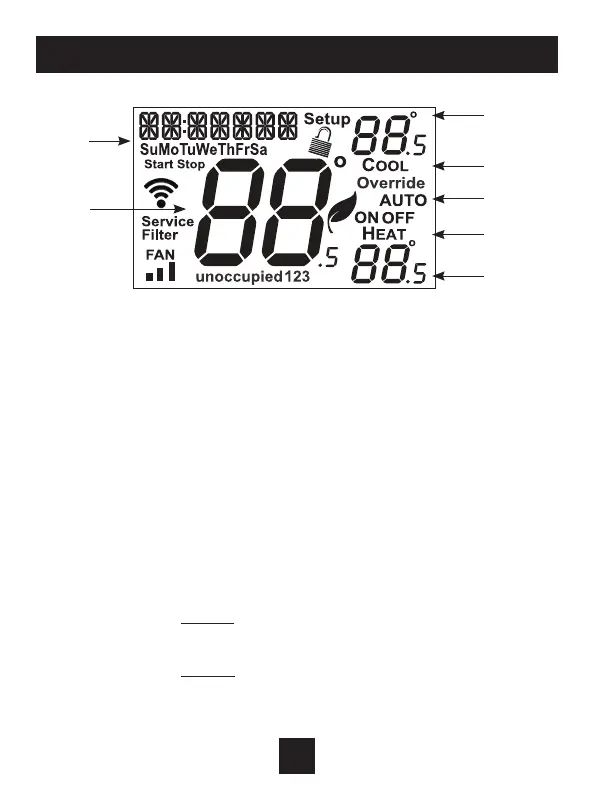

Display
1 Mode Indicators
Selects the operational mode of the equipment.
HEAT - Indicates the heating mode.
COOL - Indicates the cooling mode.
AUTO - Indicates the system will automatically changeover
between heat and cool modes as the temperature
varies.
OFF - Indicates heating and cooling are turned off.
2 Clock with Day of the Week
Indicates the current time and day. This clock is also used to
program the time period schedules.
3 Room Temperature Display
Indicates current room temperature.
4 Desired Set Temperature
Indicates desired room temperature.
2
3
4
1
1
1
4
