CLIVET EVH-X SPACE 3.1 - Thermostat Positioning; Wall Instalaltion with Uncased Box; Wall Installation

14
EVH-X SPACE 2.1 - 12.1
M0SM10N17-03

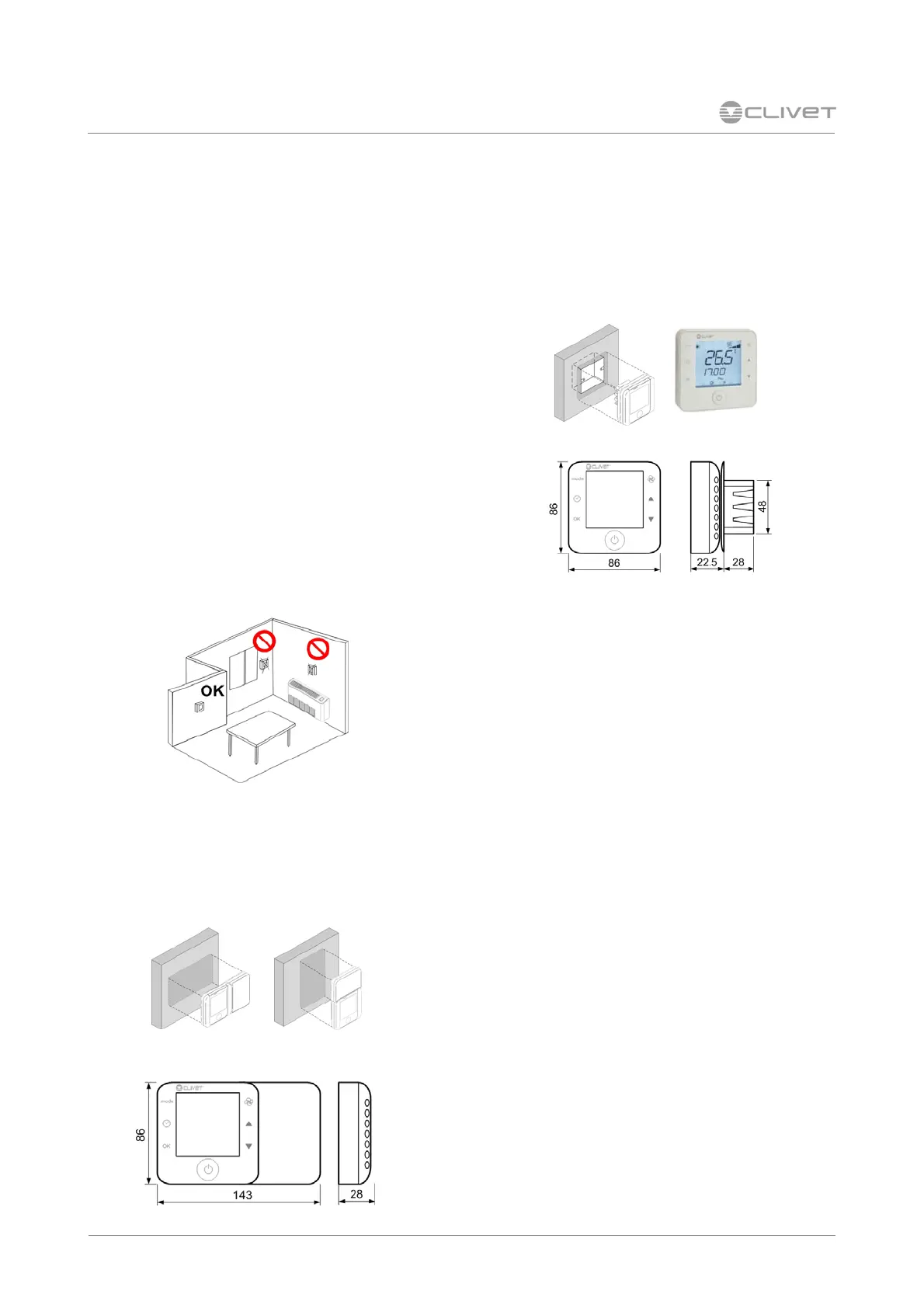

4 POSITIONING
Thermostat positioning (option)
The choice of the installation point is important for
the comfort of the served area and the energy
consumptions.
The thermostat must be positioned:
• in a room with medium temperature and
humidity conditions, representative of the other
rooms
• at a height of 150 cm
• preferably on an inner wall
Positions to avoid:
• near heat sources
• exposed to direct solar radiation
• in a position with exhaust air from outlets or
diffusers
• behind curtains or pieces of furniture
• near doors and windows to the outside
• on walls crossed by heating chimneys or pipes
• on external walls.
Wall instalaltion with uncased box
Enables the unit to be remotely controlled.
It can be easily installed in the main square or
round uncased section boxes with 65 mm
diameters and a depth of at least 31 mm.
► Electrical connections
Wall installation
Enables the unit to be remotely controlled. It can
be attached to a wall with the support in a
horizontal or vertical position.
► Electrical connections
