20
EVH-X SPACE 2.1 - 12.1
M0SM10N17-03
5 WATER CONNECTIONS
• Flow switch
• T fitting
• Power supply connection
Water connections
Warning
Kit composition
Size
DN Rp fittings
2.1-3.1-5.1-7.1
25 1” F
Assemble and perform the hydraulic connections first, then the electrical connections.

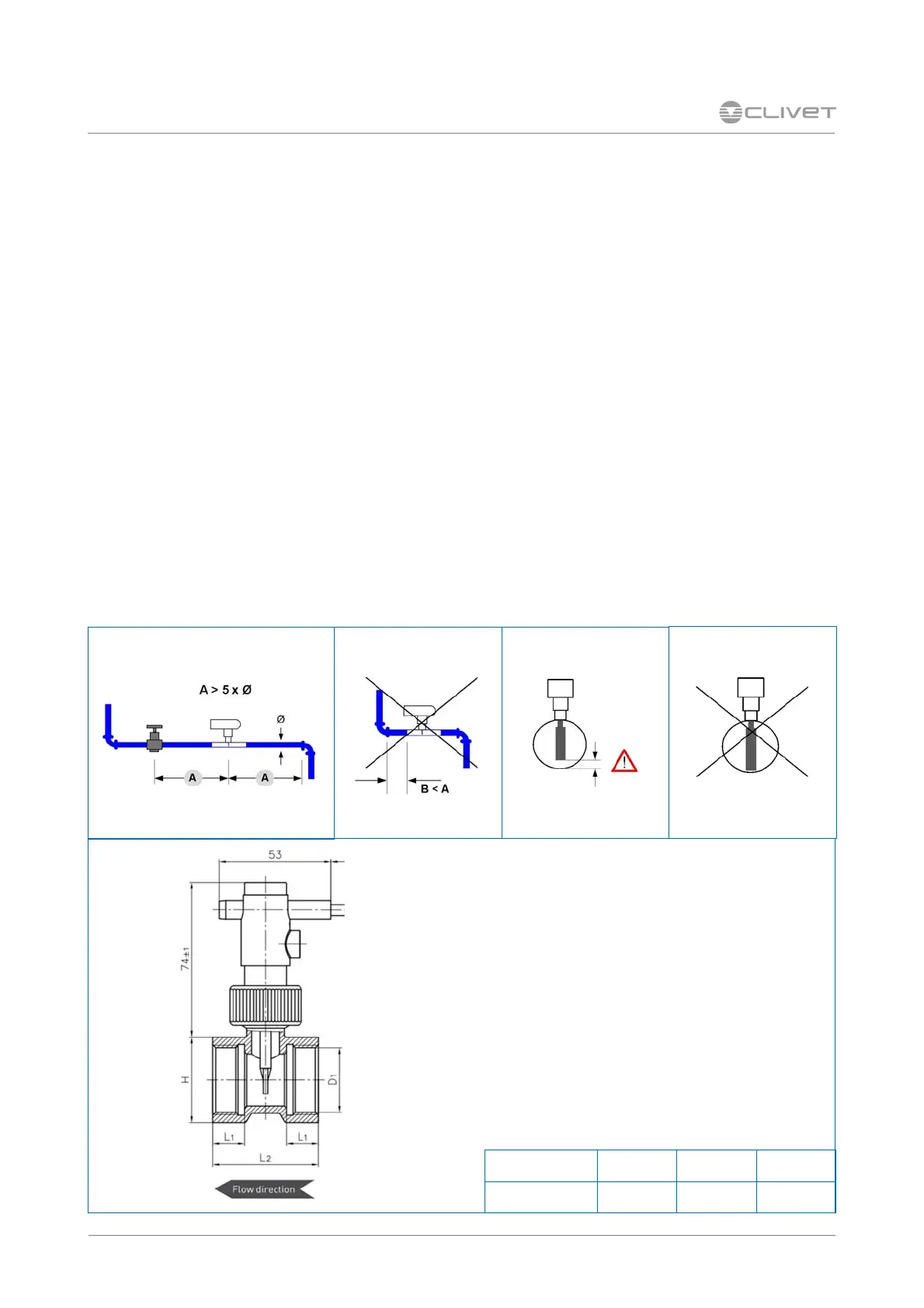

Install the flow switch in a straight section of the pipe, away from any bends.
Assemble the flow switch with the blade facing downwards.
Follow the direction of flow indicated.
Use a sealant to ensure tightness of the fittings.
If in doubt, refer to the component manufacturer’s instructions.
Flow Switch (option)
