CLIVET EVH-X SPACE 3.1 User Manual

51
EVH-X SPACE 2.1 - 12.1
M0SM10N17-03
11 GENERAL TECHNICAL DATA

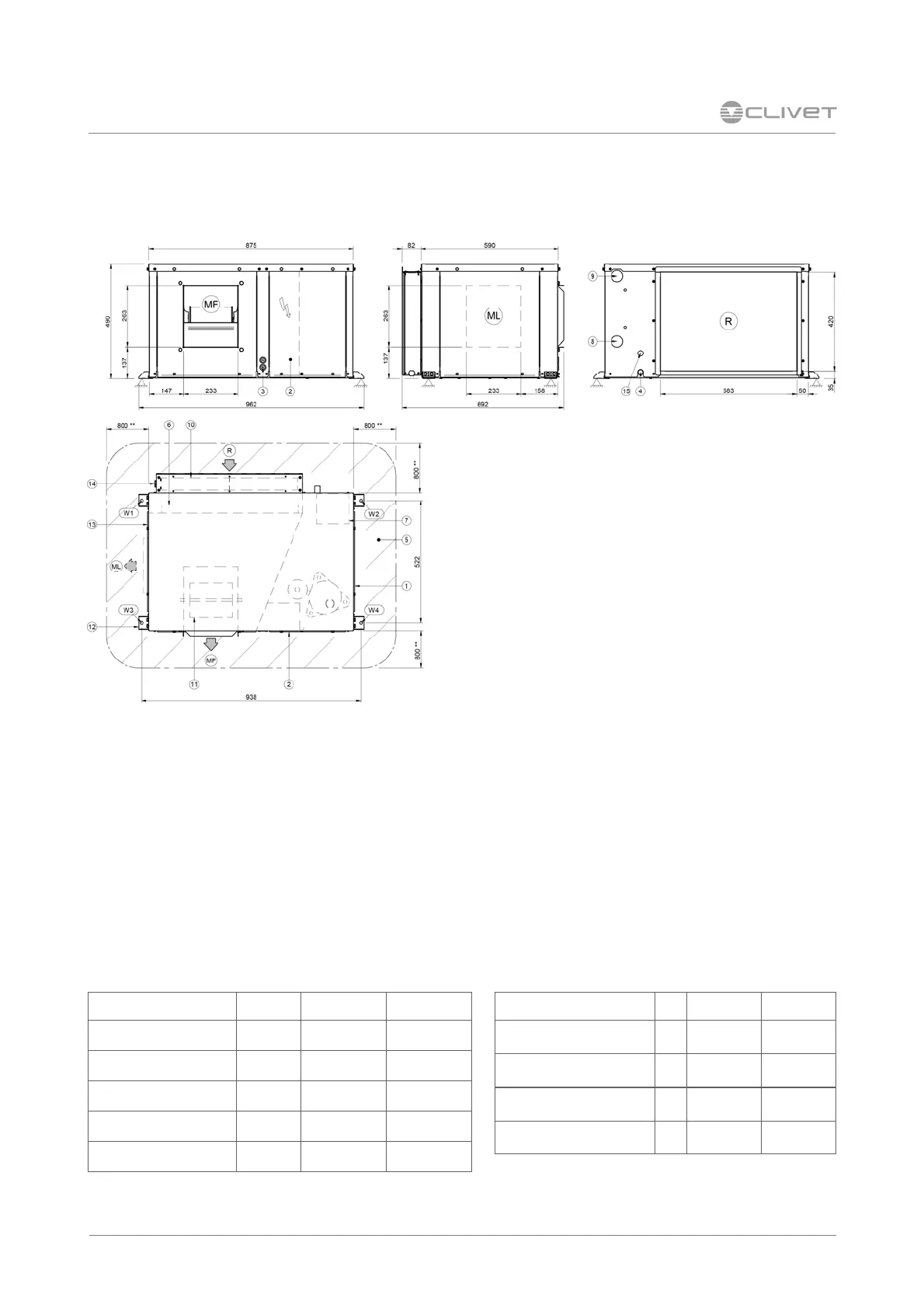

Dimensional drawings
SIZE 2.1-3.1
1 Compressor enclosure
2 Electrical panel
3 Power input
4 Condensate drain
5 Functional spaces
6 Treatment coil
7 Plate exchanger
8 Plate exchanger water input 1"
9 Plate exchanger water output 1"
10 Air filters
11 Electric fan (supply-return)
12 Lifting bracket
13 Coil - electric fan inspection
14 Filters inspection
15 Hidraulic circuit valve connection
(R) Air inlet
(MF) Front air supply
(ML) Lateral air supply
(**) Minimun suggested clearance
Size 2.1 3.1
Lenght
962 962
Height
490 490
Depth
692 692
Operation weight
98 103
Shipping weight
102 107
mm
mm
mm
Kg
Kg
Weight distribution 2.1 3.1
Support point W1
Kg 22 24
Support point W2
Kg 25 25
Support point W3
Kg 24 26
Support point W4
Kg 27 28
