52
EVH-X SPACE 2.1 - 12.1
M0SM10N17-03

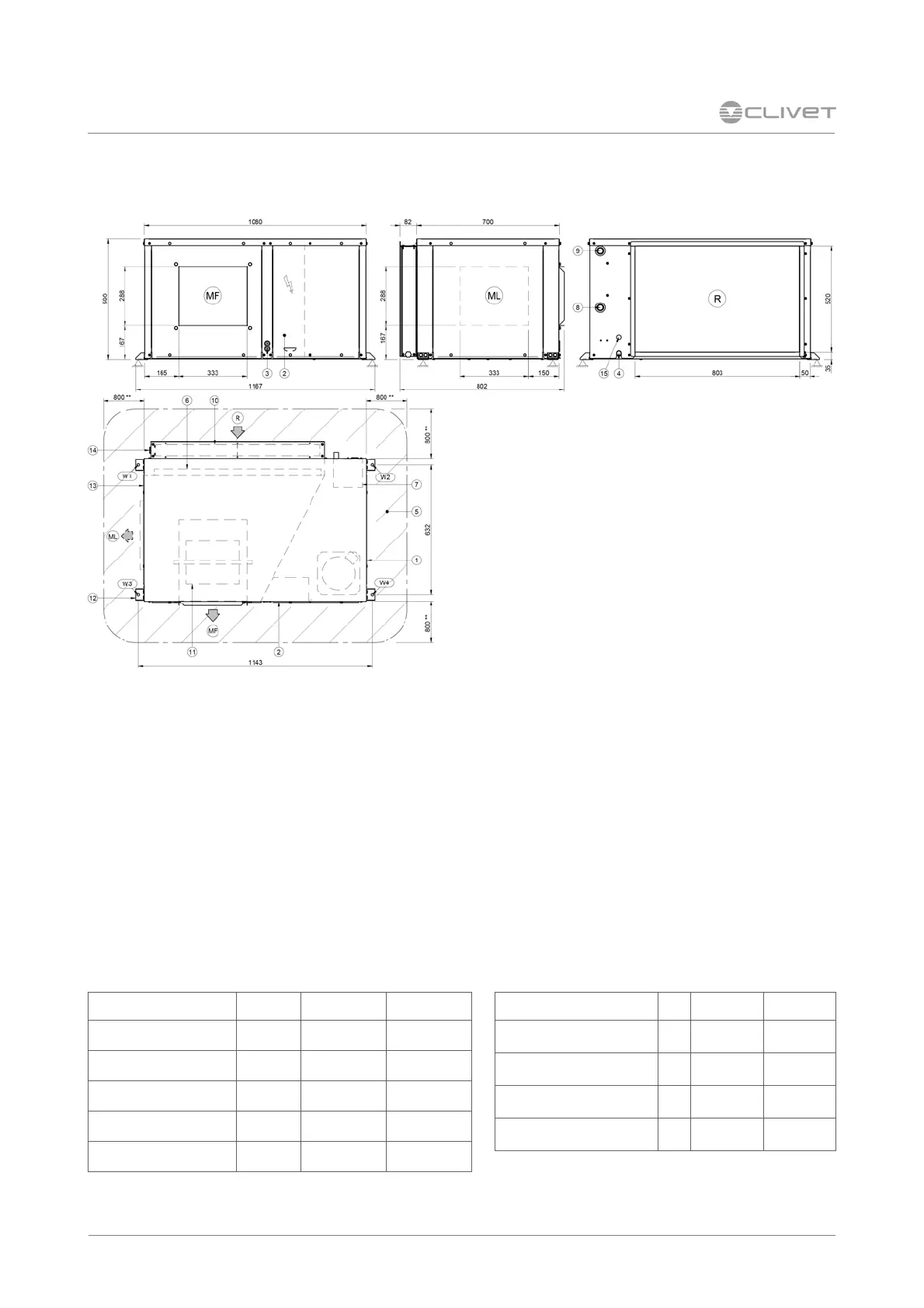

11 GENERAL TECHNICAL DATA
SIZE 5.1-7.1
Size 5.1 7.1
Lenght
1167 1167
Height
590 590
Depth
802 802
Operation weight
138 151
Shipping weight
143 156
mm
mm
mm
Kg
Kg
Weight distribution 5.1 7.1
W1 Support point
Kg 31 34
W2 Support point
Kg 36 39
W3 Support point
Kg 33 36
W4 Support point
Kg 38 42
1 Compressor enclosure
2 Electrical panel
3 Power input
4 Condensate drain
5 Functional spaces
6 Treatment coil
7 Plate exchanger
8 Plate exchanger water input 1"
9 Plate exchanger water output 1"
10 Air filters
11 Electric fan (supply-return)
12 Lifting bracket
13 Coil - electric fan inspection
14 Filters inspection
15 Hidraulic circuit valve connection
(R) Air inlet
(MF) Front air supply
(ML) Lateral air supply
(**) Minimun suggested clearance
