53
EVH-X SPACE 2.1 - 12.1
M0SM10N17-03

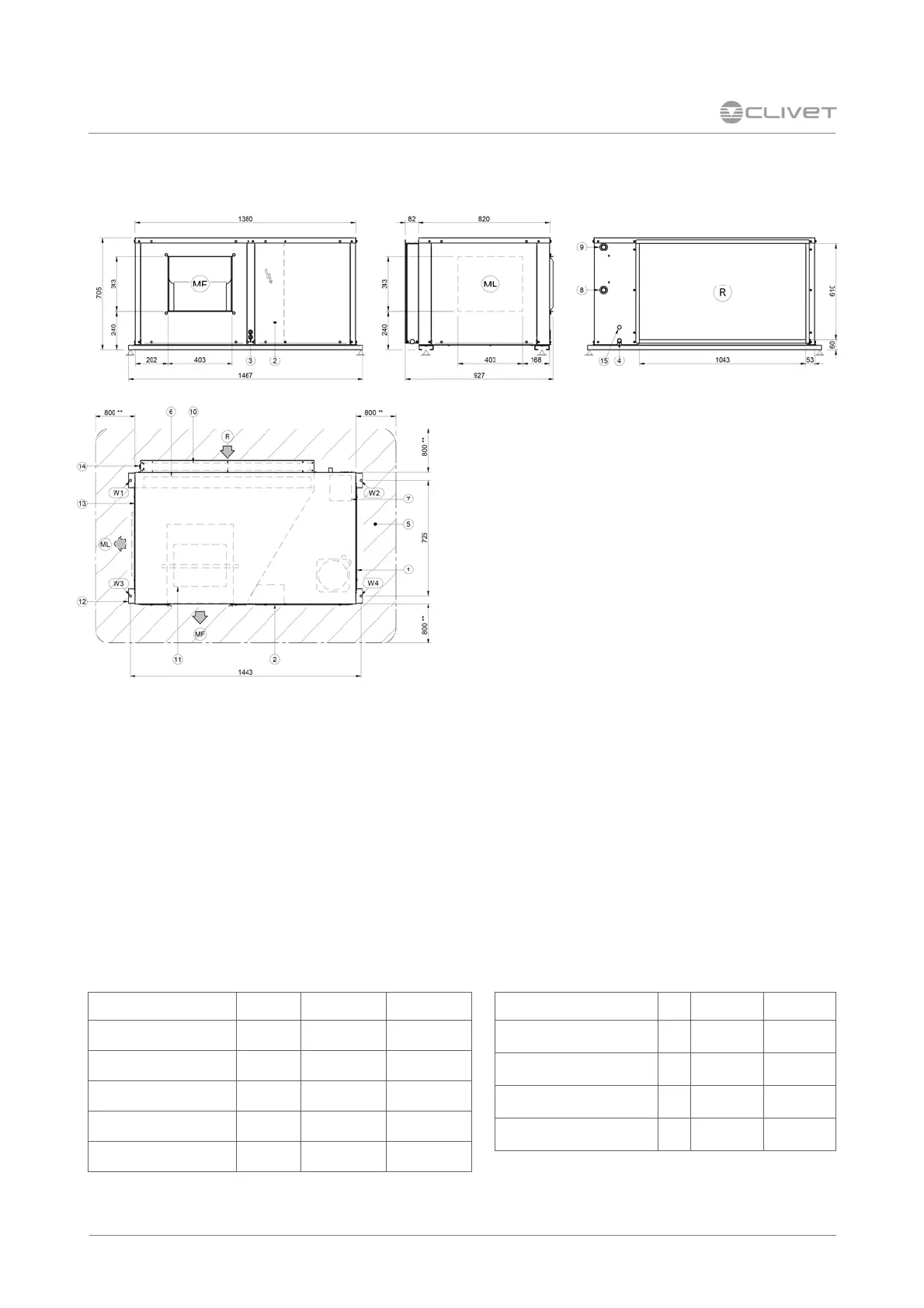

11 GENERAL TECHNICAL DATA
SIZE 10.1-12.1
Size 10.1 12.1
Lenght
1467 1467
Height
705 705
Depth
927 927
Operation weight
200 225
Shipping weight
225 250
mm
mm
mm
Kg
Kg
Weight distribution 10.1 12.1
W1 Support point
Kg 37 42
W2 Support point
Kg 54 57
W3 Support point
Kg 52 59
W4 Support point
Kg 57 67
1 Compressor enclosure
2 Electrical panel
3 Power input
4 Condensate drain
5 Functional spaces
6 Treatment coil
7 Plate exchanger
8 Plate exchanger water input 1"1/2
9 Plate exchanger water output 1"1/2
10 Air filters
11 Electric fan (supply-return)
12 Lifting bracket
13 Coil - electric fan inspection
14 Filters inspection
15 Hidraulic circuit valve connection
(R) Air inlet
(MF) Front air supply
(ML) Lateral air supply
(**) Minimun suggested clearance
