EVH-X SPACE 2.1 - 12.1
M0SM10N17-03
4 POSITIONING
• Flat washer 10x40, 2x nut M10 low
Installation
Kit composition
M10 threaded bars (not supplied)
Kit code Size
Anti-vibration supporting points
W1 W2 W3 W4
PE7O00006 2.1 - 3.1
MNZr 3 F11
MNZr 3 F11 MNZr 3 F11 MNZr 3 F11
PE7O00007 5.1 - 7.1
MNZr 5 F11 MNZr 5 F11 MNZr 5 F11 MNZr 5 F11
PE7O00008 10.1 - 12.1
MNZr 8 F11 MNZr 8 F11 MNZr 8 F11
MNZr 8 F11

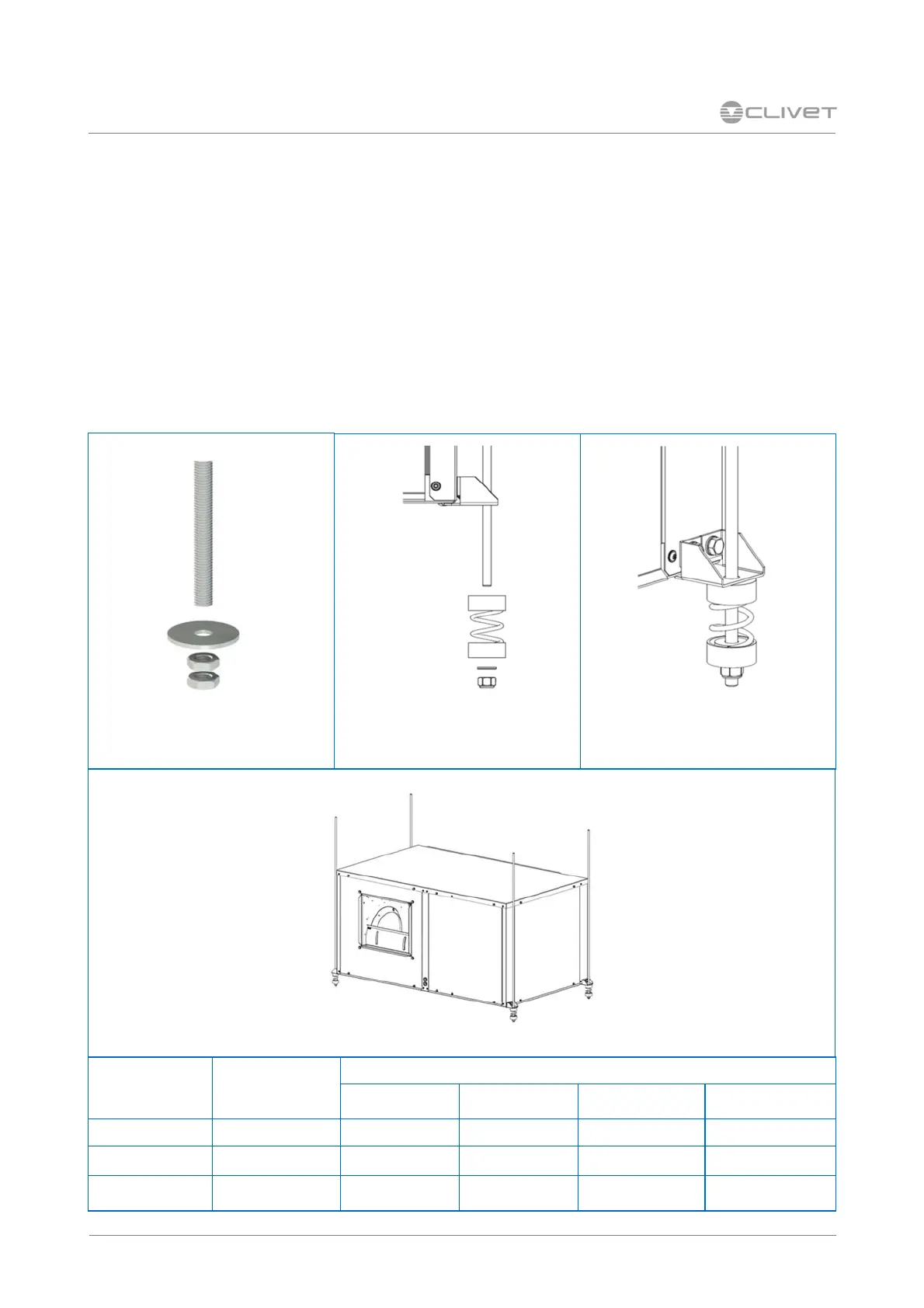

Insert the threaded rod inside the
anti-vibration mount.
Lock the lower and the upper nut
M10 and make sure they are
properly tightened.
Anti-vibration mount support (option)
