19
EVH-X SPACE 2.1 - 12.1
M0SM10N17-03
5 WATER CONNECTIONS
Electrical connections
Perform the electrical connections after the hydraulic connections
Perform the electrical connections with the unit disconnected.
Make sure that the cables are not damaged along the way.
Use the cable prearranged glands
Cable passage inside the unit (it is necessary to remove the compressor side panels).

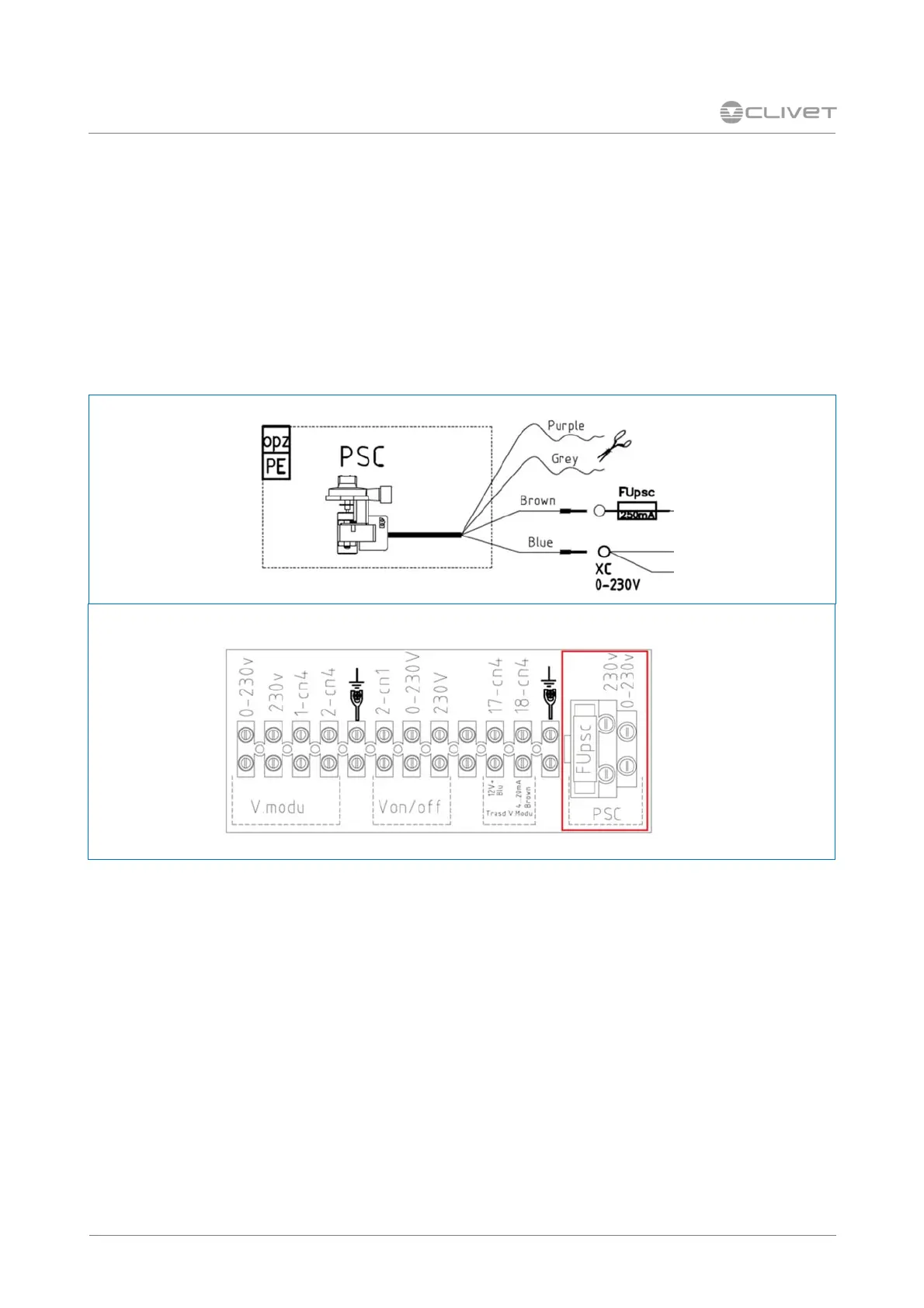

Follow the connections on the wiring diagram.
If in doubt, refer to the unit’s wiring diagram
Carefully tighten the terminals.
XC
