35
EVH-X SPACE 2.1 - 12.1
M0SM10N17-03

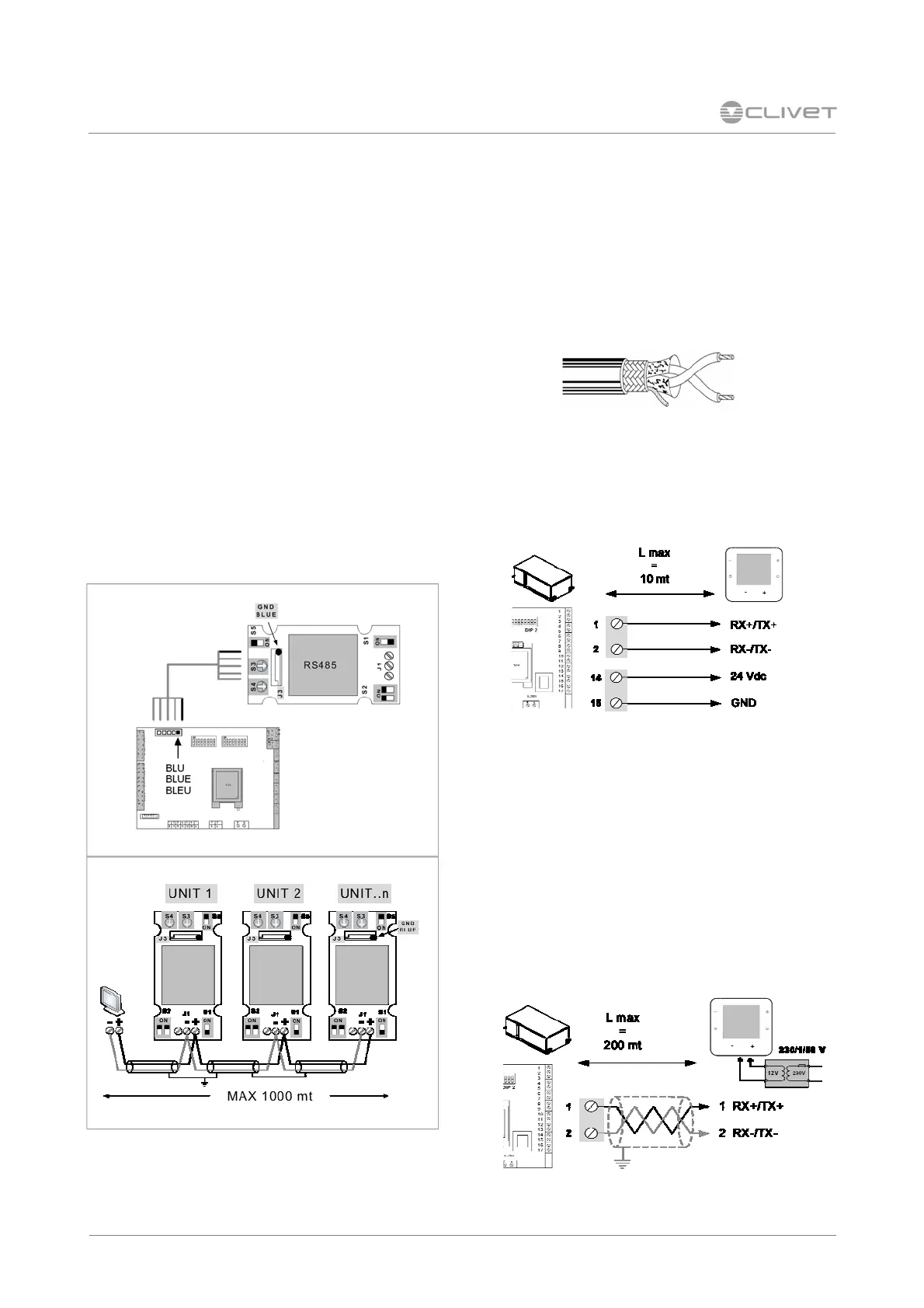

7 ELECTRICAL CONNECTIONS
Thermostat : connection up to 10m
The signal and the power supply are taken directly
from the built-in unit card.
Thermostat : connection up to 200m
Power supply taken by the trasformer (included in
the packaging) to connect to the 230/1/50
network.
The signal is taken directly from the built-in unit
card.
Type of shielded twisted duplex cable:
Min 0,5/max 1,5 mm
2
Supervision - Modbus network
MODULE RS 485 (Accessory separately
supplied)
Perform the addressing by S3, S4 S5 ; allowed
and valid addresses from 1 to 127
S3 it sets the address dozens
S4 it sets the address units
S5 it sets the address hundreds : ON = 100,
OFF = 0
S1 485 terminator : ON = termination YES
S2 line polarizer : OFF = polarization NO
Check that it is OFF on all the cards
For improve the comunication put S2 = ON on a
single card.
If more cards are polarized, faults occur
J1 RS 485 serial
J3 TTL serial
RS485 RS485 RS485
Bus connection features
Couple of conductors twisted and shielded
Section of conductor 0,22mm2…0,35mm2
Nominal capacity between conductors < 50 pF/m
nominal impedance 120 Ω
Recommended cable BELDEN 3105A
