Pay attention to the direction when prying open
the rear cover. Prying in an incorrect direction
will damage the rear cover.
INFORMATION
i
Do not excessively tighten the installation
screws to prevent rear cover deformation of the
wired controller.
INFORMATION
i
Buckling
position
Back cover
Straight head
screwdriver
Front cover

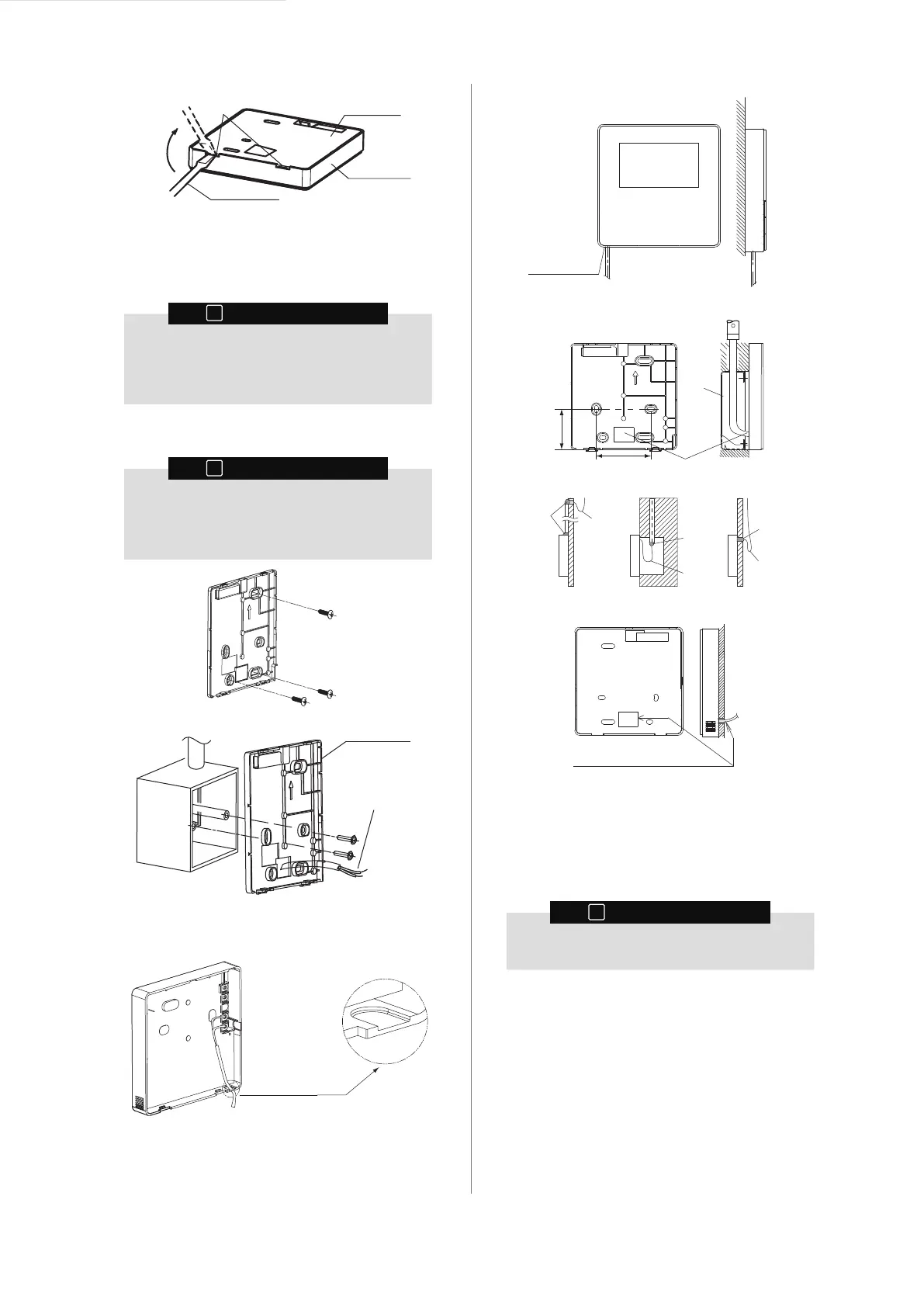

1. Insert the tip of a straight head screwdriver into the
bending location at the bottom of the wired controller.
Raise the screwdriver to pry open the rear cover.
2. Fix the rear cover on the wall.
3. Wire the wired controller.
4. Connect the wired controller to the unit. For the
connection method, see page 12.
Electrician
box
Back cover
Signal switching
wires
Cutting place of lower
left side wire outlet
lower left side
wire outlet
60mm
44mm
Wiring hole
Putty
Trap
Putty
Trap
Putty
Trap
Electrician box
Diameter : Φ8--Φ10
Wall hole and wiring hole
Avoid the water enter into the wired remote controller,
use trap and putty to seal the connectors of wires during
wiring installation.
Do not jam wires during installation.
INFORMATION
i
