6.1.3 Multiple Set Point Function
You can set the following 4 parameters in FOR
SERVICEMAN. (See ''FOR SERVICEMAN''.)
H_weather
_Twout
L_weather
_Twout
L_ODU_T4
H_ODU_T4
Shift
value
+05
-05
H_ODU_T4: high outdoor temperature (indicates the
high temperature point among outdoor ambient
temperature)
L_ODU_T4: low outdoor temperature (indicates the low
temperature point among outdoor ambient temperature)
L_weather_Twout: the desired leaving water
temperature when the outdoor temperature equals or
drops below the low ambient temperature (indicates that
the desired water outlet temperature is lower than the
low temperature point of the outdoor ambient
temperature)
H_weather_Twout: the desired leaving water
temperature when the outdoor temperature equals or
rises above the high ambient temperature (indicates the
desired water outlet temperature is higher than the high
temperature point of the outside ambient temperature)
If Weather TEMP.SET is enabled, you cannot set the
desired water outlet temperature. If you press ▼ or ▲,
the following interface is displayed.
04:27 27-05-2019 sun
OK CONFIRM
NO YES
WEATHER TEMP. SET function is on. Do you want
to turn it off ?
Press OK at NO to return to the main interface. Move the
cursor to YES, and then press OK. The weather
temperature curve setting interface is displayed as
follows.
HEAT MODE
WEATHER TEMP. SET
SHIFT VALUE
SCROLL
OFF
0°C
MULTIPLE
SET POINT
WEATHER
TEMP. SET
PRESET
TEMP.

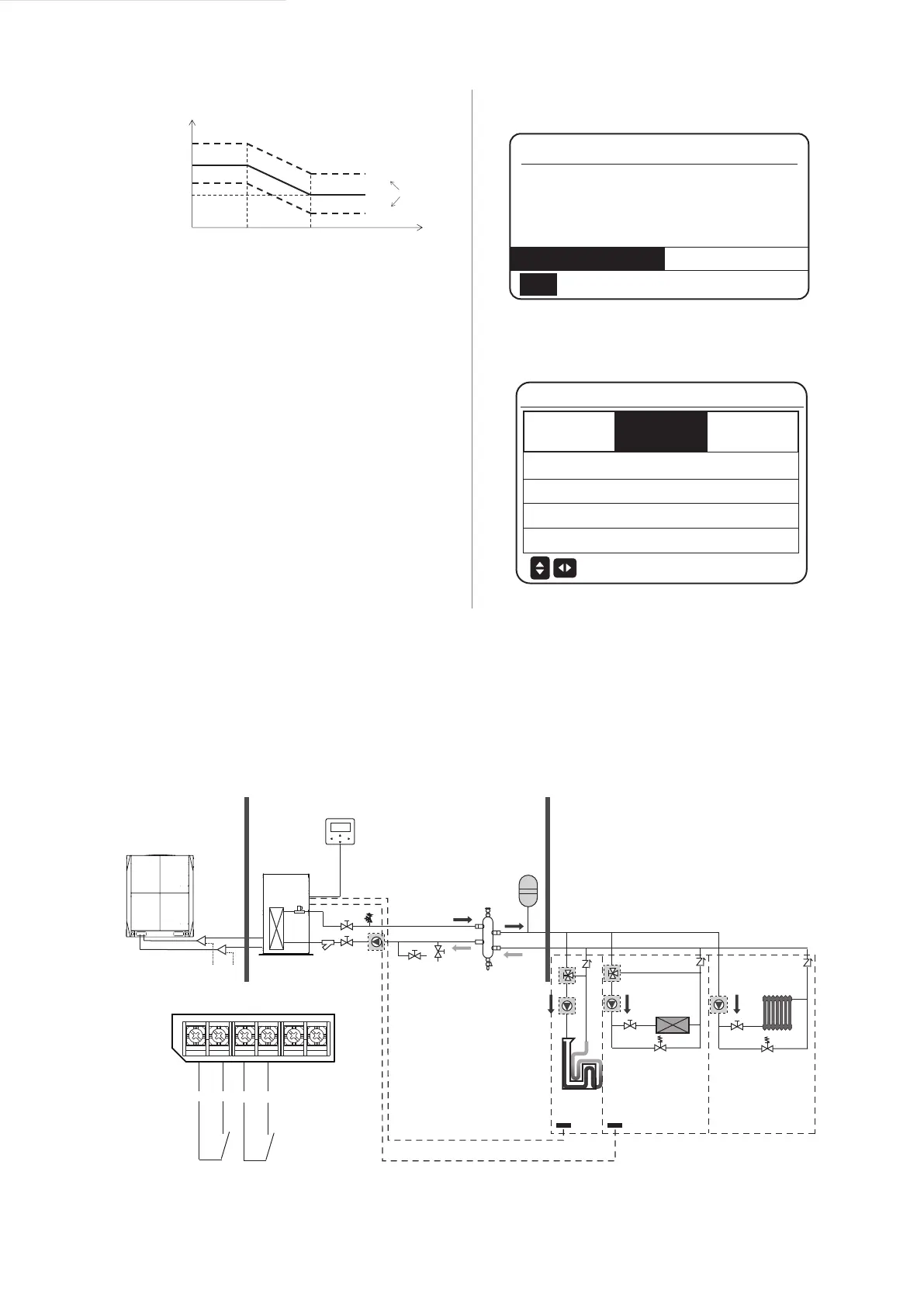

When the hydro module is connected to multiple terminals that raise different water temperature requirements, you need to use
the multiple set point function. The multiple set point function is used to set the desired water outlet temperature of space1 and
space2. (For more information, please read the Installation Manual.)
The hydro module will calculate the space that requires energy and operate at the highest water temperature among the water
outlet temperature requirements.
Note: For space 0, water temperature is set on the main interface.
FCU
5
6
9 10
11
FHL
12
8
4
radiator
1
2
3
6
7
9
Thermostat 1
Thermostat 2
space 2 space 1 space 0
CN22
N MSP1 N
N
MSP2
AL
Thermostat 1 Thermostat 2
M0WU00002-00
