15
Installation

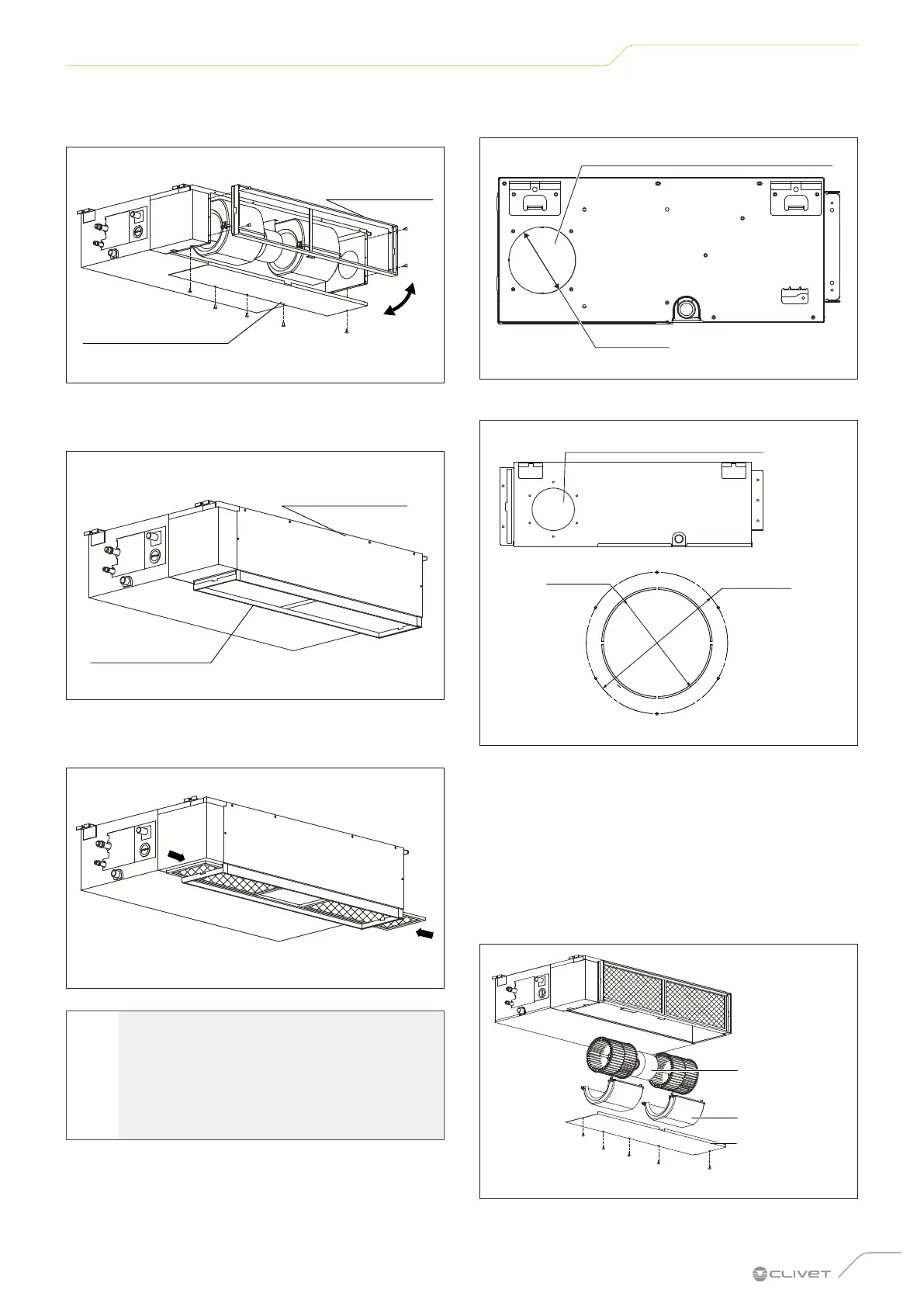

ADJUST THE AIR INLET DIRECTION
1 Disassemble the ventilation panel and the flange
Air return
flange
Ventilation panel
Fig. 13
2 Change the assembly positions of the ventilation
panel and air return flange.
Air return
flange
Ventilation panel
Fig. 14
3 When installing the filter mesh, insert it into the flange
as shown in the figure below.
Fig. 15
l
WARNING
All images in this manual are provided for
illustration purposes only. The air conditioner
purchased may have slightly different
characteristics, even though the aspect is
similar.
INSTALLATION OF THE FRESH AIR DUCT
27M - 35M models
Fresh air duct connection
Ø92 mm
Fig. 16
53M - 160M models
Fresh air duct connection
Ø125 mm
Ø160 mm
Fig. 17
MOTOR AND DRAIN PUMP MAINTENANCE
The example refers to the rear ventilation panel
Motor maintenance:
1 Remove the ventilation panel.
2 Remove the fan housing.
3 Remove the motor.
Motor
Fan housing
Ventilation
panel
Fig. 18
