33
Installation

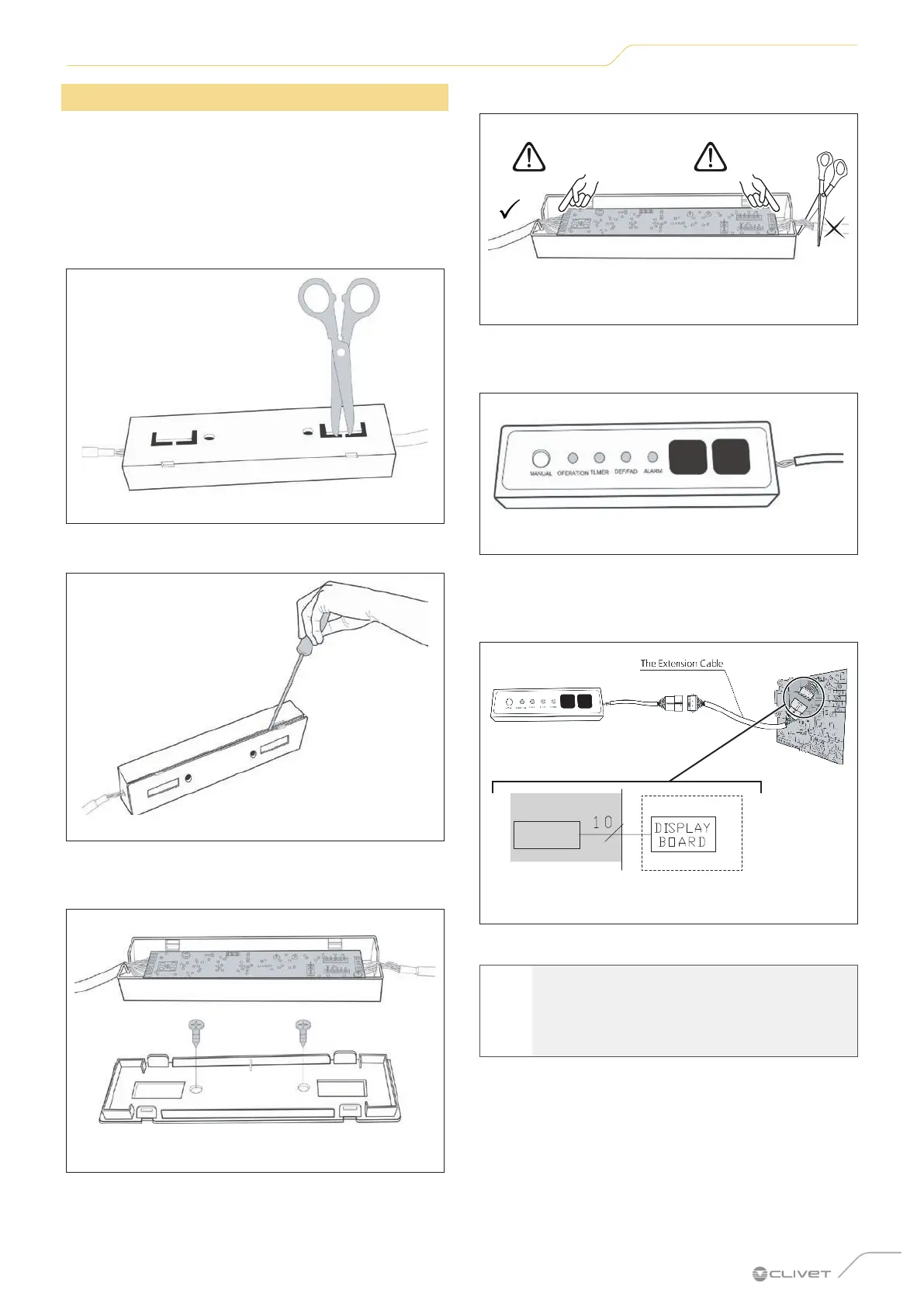

2.5 Installation of the remote display
The remote display has a built-in signal receiver for
controlling the indoor unit with the remote control.
The remote display is supplied with the indoor unit but is
not connected to the board.
Proceed as follows to install and connect it.
1 Cut and remove the two pieces.
Fig. 44
2 Take the bottom off the remote display box.
Fig. 45
3 Remove the protective PVC. Fasten the bottom of the
display box with the two screws.
Fig. 46
4 Cut the cable on the 5-pin connector side.
connector
10 pin
connector
5 pin
Fig. 47
5 Fasten the protective PVC cover on the bottom of the
remote display.
Fig. 48
6 Connect the 10-pin connector of the remote display
to the CN10 connector of the main board. Use the 2m
extension lead provided if necessary.
CN10
Fig. 49
l
WARNING
The remote display must be fixed in a position
that allows it to receive the signal from the
remote control without interference.
