CLIVET WSAR-MT-E User Manual

25
5 - ELECTRICAL CONNECTIONS
S01
S02

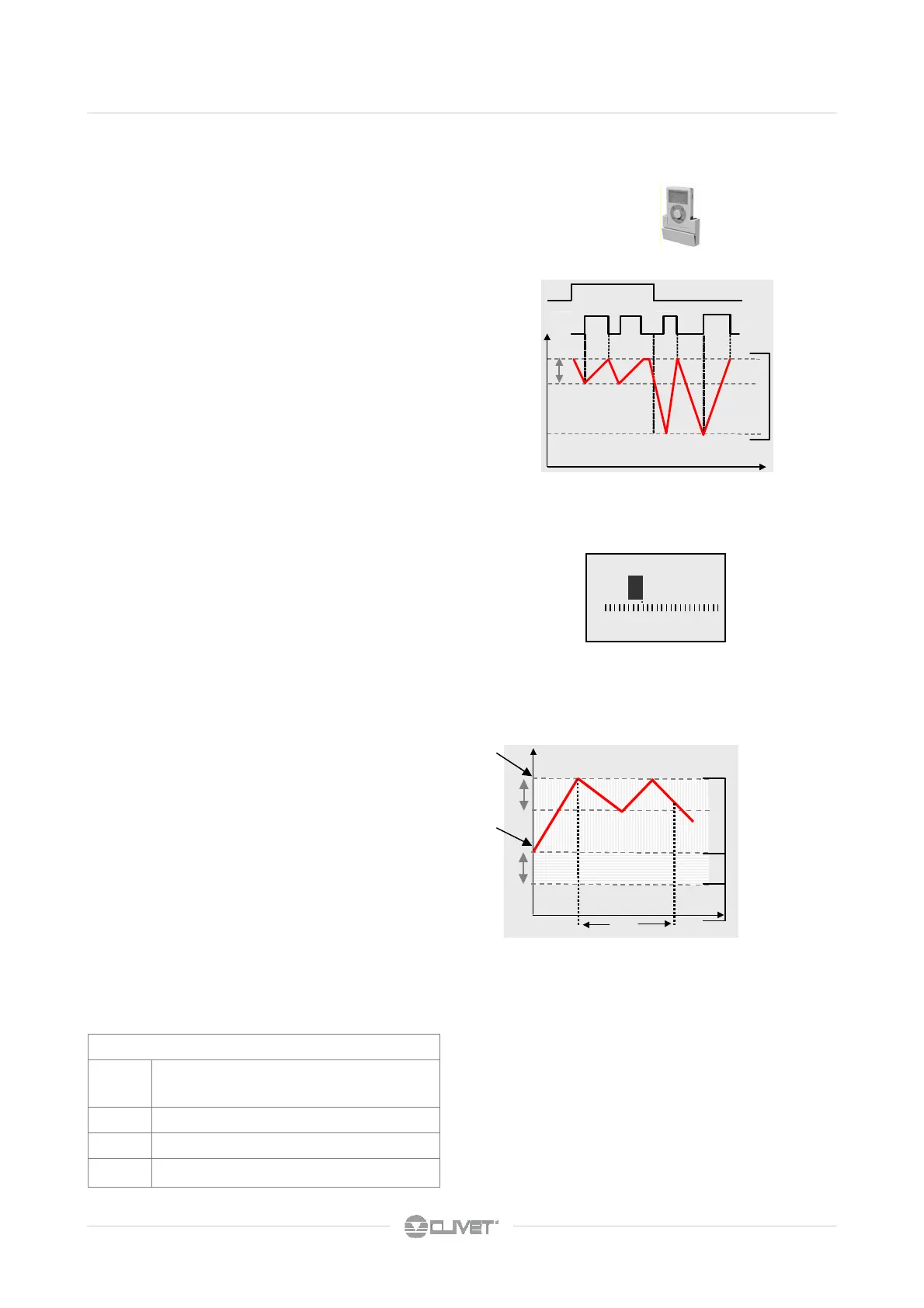

The antilegionella cycle:
• Is enabled in the time bands set by scheduler
• is always the priority on the ambient
thermoregulation
• SetPointaccumulo uses only the electric
resistances
• SetPointaccumulo can use the heat pump instead
of the resistances.
STORAGE phase:
• It is disabled in the time bands set by the scheduler
• During this phase, the heat pump produces DHW if
the storage temperature drops down the DHW band
set point: medium storage temperature
MAINTENANCE phase:
• always active but not during the storage phase
• this phase, unlike the previous, agrees that the
medium temperature drops furtherly down before the
heat pump is activated : medium storage
temperature
Request by scheduler
Heat pump activation
Storage SetPoint
Sanitary Band
Storage
Maintenance
I 15
LegioSetPoint
Sanitary Band
Storage SetPoint
Sanitary Band
Electric resistance
zone
Electric resistance /
heat pump
Compressor zone
DHW production
Minimum value
Maintenance
Delta
Antilegionella cycle
The DHW configuration parameters are managed by the multifunction keyboard:
menu - CONFIGURATION - DHW
The scheduler allows to set the daily time bands and to
allocate the destre operating mode (Maintenance - Recir-
culation)
Menu : Scheduling - DHW - weekly
- programs
- name modification
Configuration paramenters :
menu - CONFIGURATION - UNIT - DHW - SETUP
Ora : 08:00 Val : Acc+ Ric
16 20 24
Prog 1
04812
Acc-
Ric -
-
The scheduler allows to set the cadence to the
antilegionella cycle
Menu : Configuration - DHW - Antilegionella
cadence (Weekly , Monthly, Disabled )
day
start hour
Configuration paramenters :
menu - CONFIGURATION - DHW - ANTILEGIONELLA
* Parameters accessible through the installer password 115).
The access by pwd is reserved to qualified personnel;
The parameters changes may cause malfunctions.
Configuration paramenters *
12 Enables the domestic hot water management :
0=No dom. hot water, , 1=domestic hot water and system
361 0=Sanitary priority,1=System priority cool
362 0=Sanitary priority,1=System priority heat
364 Domestic hot water Set Point
