SIZE 155.5 ÷ 185.5 EXC / 210.6 ÷ 240.6 PRM

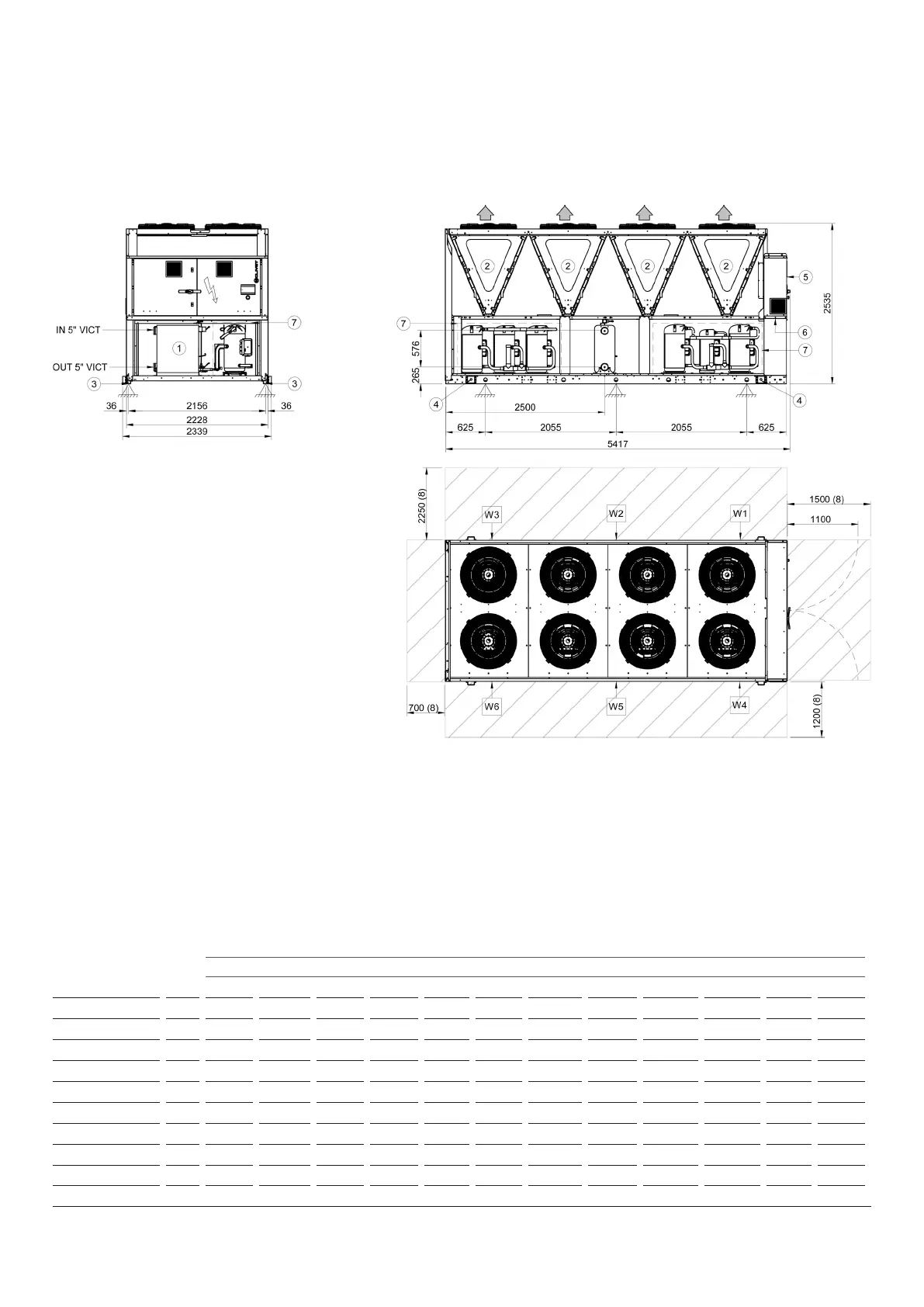

1. Internal exchanger (evaporator)
2. External exchanger (condenser)
3. Unit fixing holes
4. Lifting brackets (removable)
5. Electrical panel
6. Power input
7. Sound proof enclosure (optional)
8. Clearance access recommended
SIZE
155.5 EXC 170.5 EXC 185.5 EXC 210.6 PRM 225.6 PRM 240.6 PRM
ST SC/EN ST SC/EN ST SC/EN ST SC/EN ST SC/EN ST SC/EN
Length mm 5417 5417 5417 5417 5417 5417 5417 5417 5417 5417 5417 5417
Depth mm 2228 2228 2228 2228 2228 2228 2228 2228 2228 2228 2228 2228
Height mm 2535 2535 2535 2535 2535 2535 2535 2535 2535 2535 2535 2535
W1 Supporting point kg 601 651 599 649 603 653 606 611 660 710 659 708
W2 Supporting point kg 606 658 645 697 677 729 663 670 725 780 748 803
W3 Supporting point kg 345 395 415 465 481 531 541 546 545 608 608 672
W4 Supporting point kg 428 443 427 442 432 448 437 442 458 474 459 474
W5 Supporting point kg 519 535 561 577 593 609 553 561 606 623 621 638
W6 Supporting point kg 281
297 305 321 328 344 341 346 348 368 370 389
Operating weight kg 2779 2979 2952 3152 3114 3314 3141 3176 3343 3563 3464 3684
Shipping weight kg 2729 2929 2892 3092 3044 3244 3085 3120 3277 3497 3394 3614
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
