PM4/8/12/16 & PM4/8-SA Installation and User Guide v1.1
10

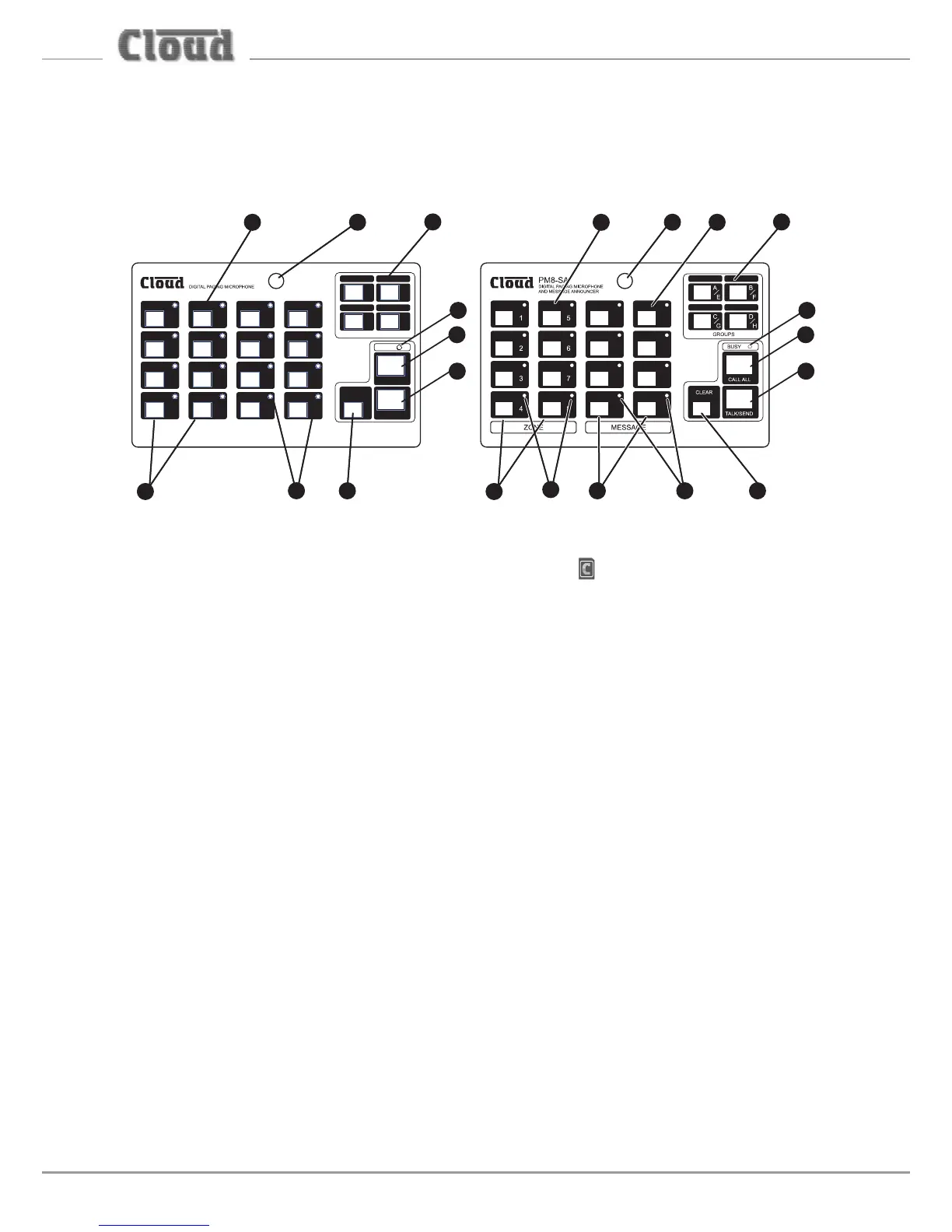

Controls and connections
Front Panels
5
6
7
8
9
4
1
2
3
159
4162 10
13
5173 11
6184 12
A
C
B
D
GROUPS
TALK
CLEAR
CALLALL
BUSY
PM16
8
9
10
11
12
4
1
2
3
7
5 6
PM (non-SA)
1. Gooseneck microphone
2. ZONE selection buttons
3. ZONE select LEDs
4. Legend areas for zone identication
5. CALL ALL button
6. TALK button
7. CLEAR button
8. GROUP select buttons
9. BUSY LED
PM-SA
1. Gooseneck microphone
2. ZONE selection buttons
3. ZONE select LEDs
4. Legend areas for zone identication
5. MESSAGE selection buttons
6. MESSAGE active LEDs
7. Legend areas for message names
8. CALL ALL button
9. TALK/SEND button
10. CLEAR button
11. GROUP select buttons
12. BUSY LED
