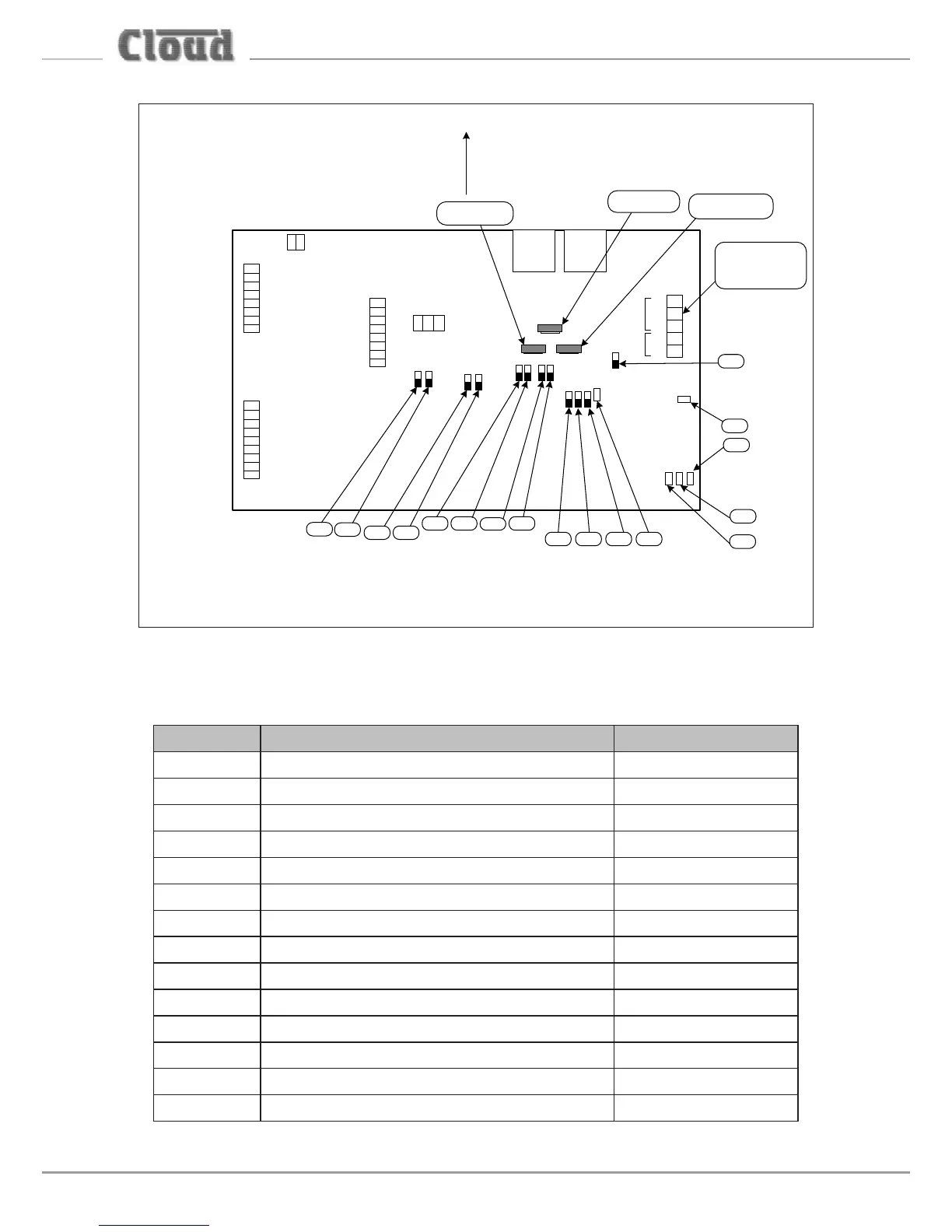

Jumper and default settings summary –
standard (non-SA) models
Jumper Purpose Default
J1 Chime Select; +1 ON
J2 Chime Select; +2 OFF
J3 Chime Select; +4 OFF
J4 Digital Paging Interface termination ON
J5 Chime On/Off ON
J6 Internal Chime On/Off ON
J7 NVM Reset OFF
J8 High Priority OFF
J9 Lock Groups OFF
J10 Auto-reset zone selection ON
J11 Zone Offset; +8 OFF
J12 Zone Offset; +4 OFF
J13 Zone Offset; +2 OFF
J14 Zone Offset; +1 OFF
