PM4/8/12/16 & PM4/8-SA Installation and User Guide v1.1
30
Typical example

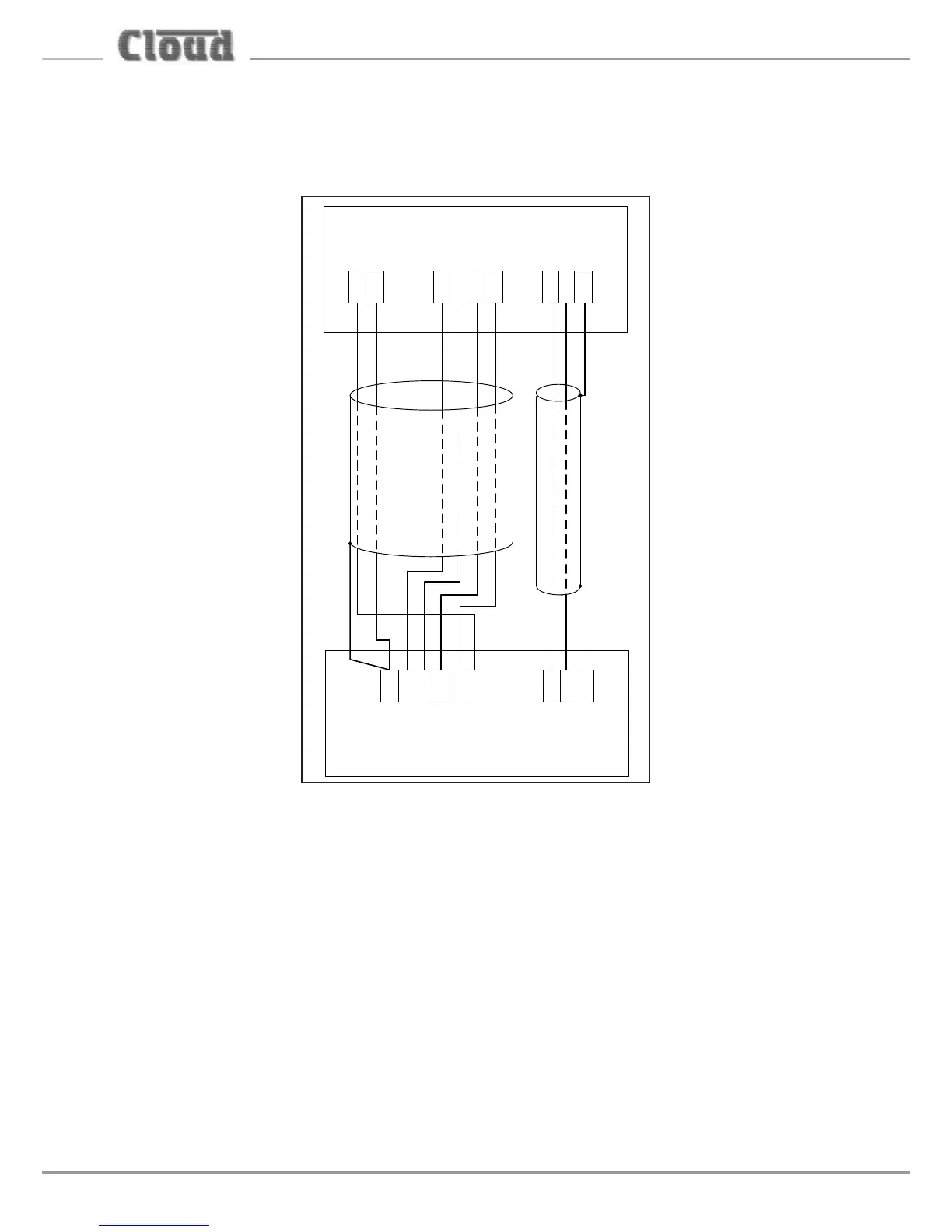

The diagram below shows the overall cable connections between a PM4 and a Cloud
46/50 host mixer (which has a typical 4-zone short-to-ground access port).
TERM 8TERM 2TERM 1
HOT COLD GNDZ 1 Z 2 Z 3
Z 4
0 V
+ V
M IC 1 IN
PAG ING ACCESS
HOT COLD GNDZ 1 Z 2 Z 3
Z 4
0 V
+ V
PM 4 PAG ING M ICROPH ONE
4 6 / 5 0 M IX ER
Note in this example that as Zones 5-16 are not in use, no connections need to be
made to Z5-Z8 on TERM2, or to Z9-Z16 on TERM4.
