CMC S19 - Platform Control Stations; Platform Control (Exercise) Station

MAN. 126 rev.4 Use and maintenance manual S19 20 of 77

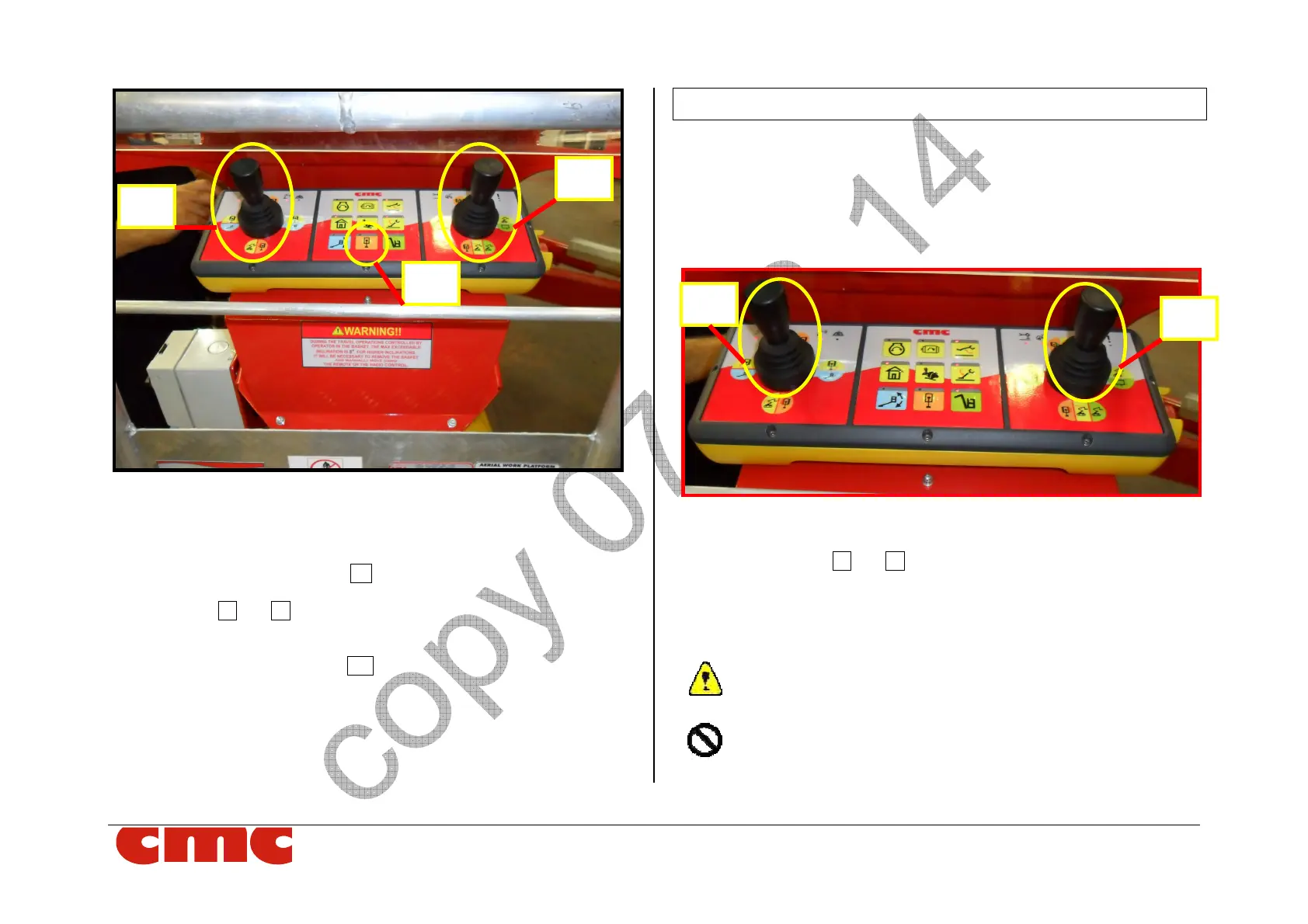

Picture 15: translation control station (basket)
The two similar stations shown in picture have:
-station and operation selector TS: selecting this button/lever, you
enable the travel operation, which is then performer through the two
travel joystick J1 and J2
-rabbit -tortoise speed selector LT : through this lever it is possible
to increase the travel speed.
3.5 

 Platform control stations 


There are two platform control stations: the first (exercise) placed on the
basket (Picture 16), the second (emergency) remote control (Picture 18).
3.5.1 

 Platform control (exercise) station
Picture 16: platform control (exercise) station
-operations joystick J1 and J2 ;
- BLUE dead man button for the leveling operations: it has to be
pusher together with the movement of the left joystick selector for
leveling operation (internal-external);
Level the basket only when the MEWP aerial part is set in the
transport configuration.
It is strictly forbidden to level the basket with the machine open.
J1
J2
TS
J1
J2
