- GREEN dead man button for the jib movement: it has to be pushed
together with the (up and down) movement of the right joystick to lift
or to lower the jib;
- GREEN dead man button for the basket rotation: it has to be pushed
together with the (left and right) movement of the right joystick to
rotate the basket;
- RED dead man button for the operations (on the left side of the
platform control station): it has to be pusher together with the
joysticks for operate the movements;
- RED dead man button to bypass the block of the turret (on the right
side of the platform control station): it has to be pusher together with
the turret rotation for unblock the turret;
- Mushroom-shaped emergency button): blocks the machine unfeeding
the control circuits; the machine has a mechanical blocking device,
therefore, to reset its operability, it is necessary to unblock the button
turning it clockwise. This button has the priority on any other control; it is
only allowed to manually descend on the ground.
-Pilot lights: early warning (8), pre-alarm (2), moment block (3), low
gas oil (orange) (7).
-Pilot lights: weight limiting device (4) (OPTIONAL), consent to
stabilization (5), consent to the use of the MEWP (8), MEWP feeding
(1).
3.5.2
Platform control (emergency) station
The emergency station is the remote control, and it activates only
performing the link on the green button aside the same and if it is
enabled from the ON/OFF button in Picture 11: stabilization type
selector (the activation of this, directly excludes the basket control station):

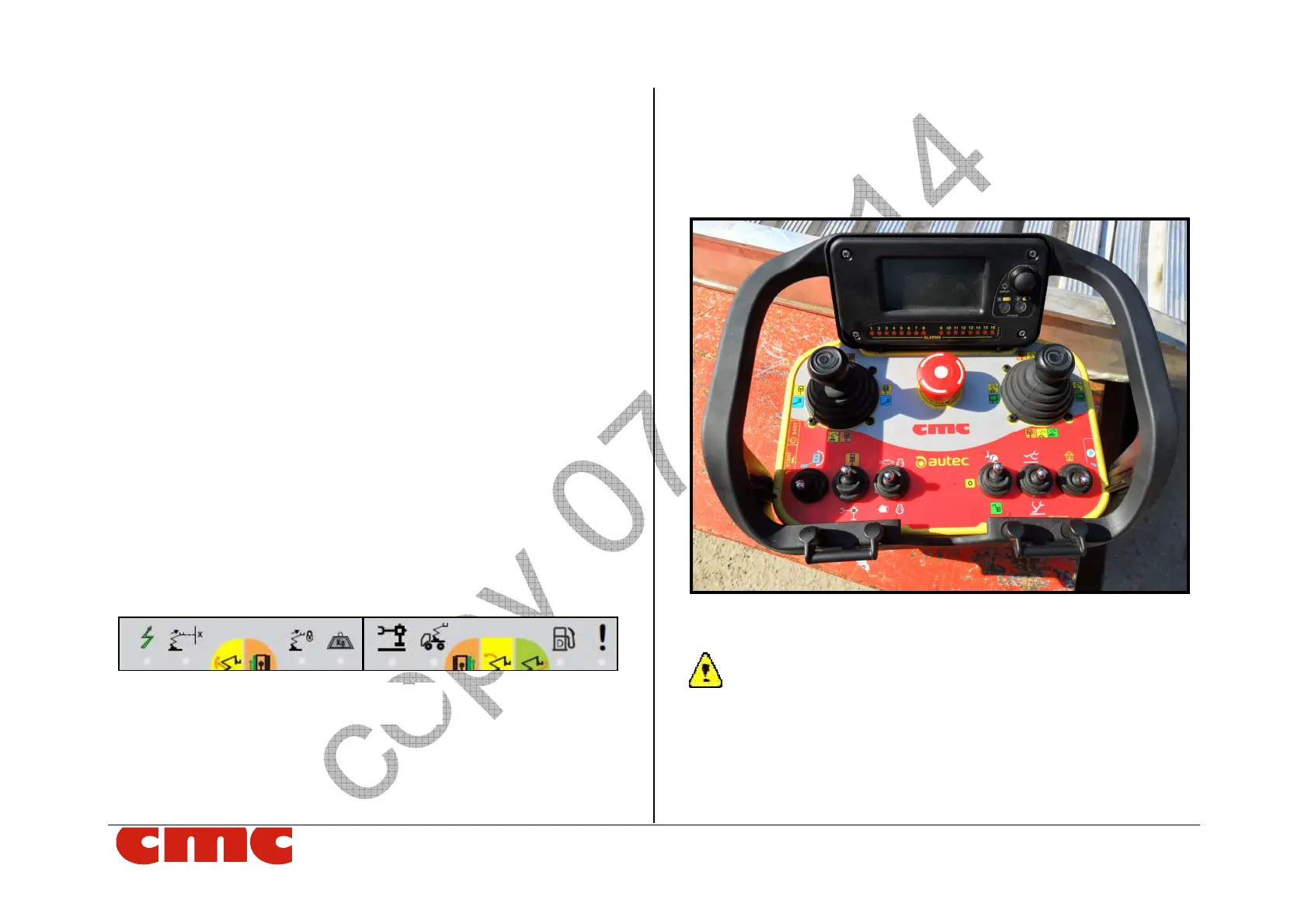

Picture 17: platform control (emergency) station
The functions contained on the radio control are the same of
the control station in Picture 16!!
Moreover this station has a display which allows to visualize the
series of pilot lights on the control station in Picture 16.
3.5.3
Platform emergency station
1
2
3
4
5
6
7
8
